Line Drawing 1

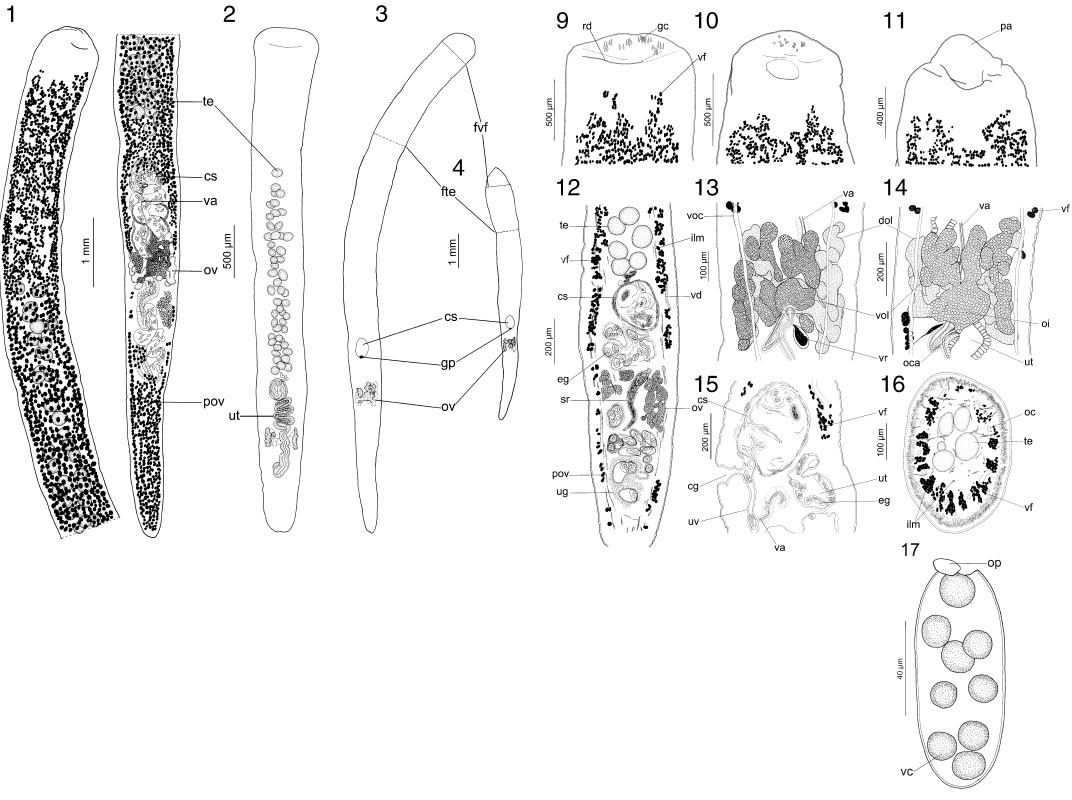

Figs. 1-4 Lobulovarium longiovatum n.g., n. sp. from Puntius sophore in the Indomalayan region. 1. Total view (ventral) of holotype from Siliguri, West Bengal (IPCAS C-619). 2. Immature worm (IPCAS C-... MoreFigs. 1-4 Lobulovarium longiovatum n.g., n. sp. from Puntius sophore in the Indomalayan region. 1. Total view (ventral) of holotype from Siliguri, West Bengal (IPCAS C-619). 2. Immature worm (IPCAS C-619); note the distribution and small number of testes. 3, 4. Outlines of gravid worms; not the variation in the total size of the body. Abbreviations: cs, cirrus-sac; fte, level of first testes; fvf, level of first vitelline follicles; gp, genital pore; ov, ovary; pov, postovarian vitelline follicles; te, testes; ut, uterus; va, vagina. Figs. 9-16 lobulovarium longiovatum n. g., n. sp. from Puntius sophore in the indomalayan region. 9, 10. Afossate, broadly digitate scolex; note the position of the gland-cells (gc0, first vitelline follicles and rim-like depresiion (rd). 11. Scolex with protruded apex (pa). 12. Sagittal-section of the posterior part of the body. 13, 14. Ovarian region, ventral view; note the irregular shape of the ovary with several lobes on ventral and dorsal sides united via the ovarian isthmus. 15. Sagittal-section at the level of the cirrus-sac; note the uterovaginal duct and single gonopore. 16. Cross-section of the testicular region. Abbreviations: cg, common genital pore; cs, cirrus-sac; dol, dorsal ovarian lobes; eg, eggs; gc, gland-cells; ilm, inner longitudinal musculature; oc, osmoregulatory canal; oca, oocapt; oi, ovarian isthmus; ov, ovary; pa, protruded apical end; pov, postovarian vitelline follicles; rd, rim-like depression; sr, seminal receptacle; te, testes; ug, uterine glands; ut, uterus; uv, uterovaginal duct; va, vagina; vd, vitelline duct; vf, vitelline follicles; voc, ventral osmoregulatory canal; vol, ventral ovarian lobes; vr, vitelline reservoir. Fig. 17. Line drawing of an intrauterine egg from a whole-mount; note a detached operculum. |
Line Drawing 2
|
Photo Micrograph
Figs. 18. Photomicrograph of an egg isolated from the distal part of the uterus of an unstained worm. Abbrevations: op, operculum;vc, vitellocytes. |
Scanning Electron Micrograph

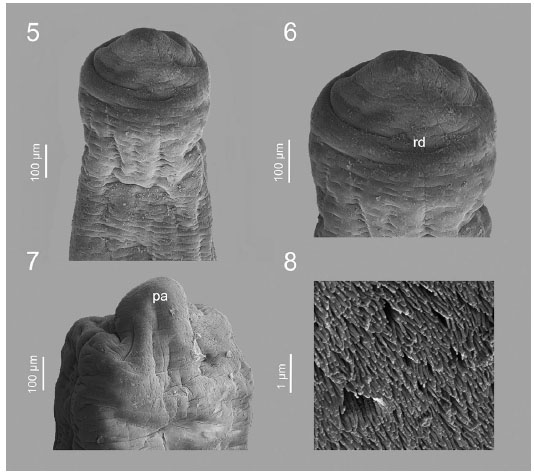

Figs. 5-8 Lobulovarium longiovatum n. g., n. sp. from Puntius sophore in the Indomalayan region. Scanning electron micrographs of scoleces (5-7) and microtriches (articular filitriches) (8). Abbrevati... MoreFigs. 5-8 Lobulovarium longiovatum n. g., n. sp. from Puntius sophore in the Indomalayan region. Scanning electron micrographs of scoleces (5-7) and microtriches (articular filitriches) (8). Abbrevations: pa, protruded apex of the scolex; rd, rim-like depression |

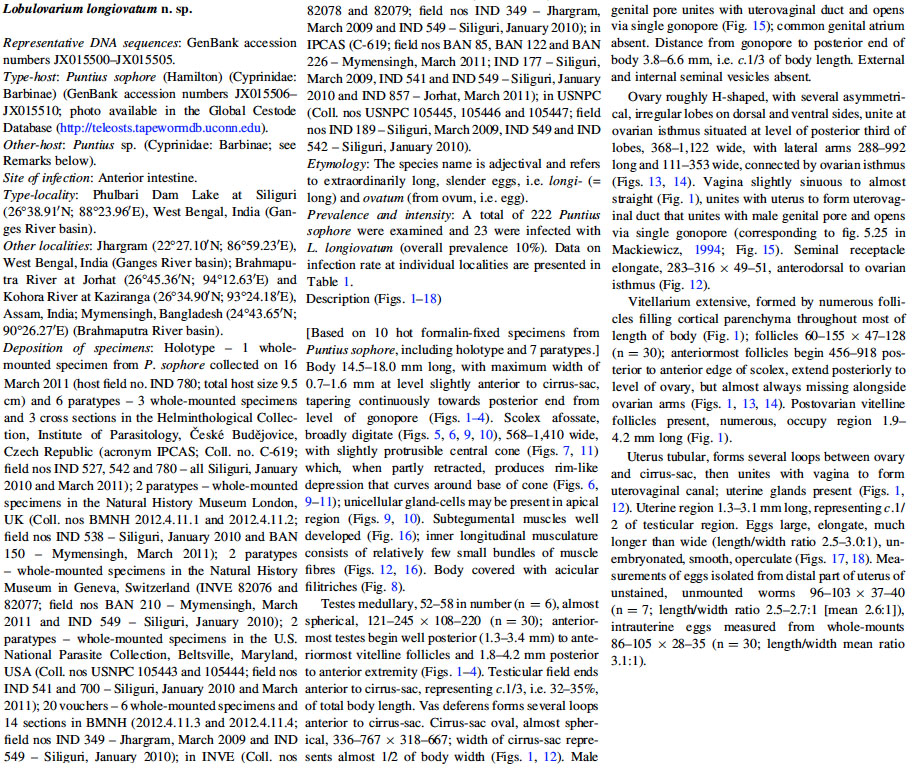

Global Cestode Database
Figs. 1-4 Lobulovarium longiovatum n.g., n. sp. from Puntius sophore in the Indomalayan region. 1. Total view (ventral) of holotype from Siliguri, West Bengal (IPCAS C-619). 2. Immature worm (IPCAS C-619); note the distribution and small number of testes. 3, 4. Outlines of gravid worms; not the variation in the total size of the body. Abbreviations: cs, cirrus-sac; fte, level of first testes; fvf, level of first vitelline follicles; gp, genital pore; ov, ovary; pov, postovarian vitelline follicles; te, testes; ut, uterus; va, vagina. Figs. 9-16 lobulovarium longiovatum n. g., n. sp. from Puntius sophore in the indomalayan region. 9, 10. Afossate, broadly digitate scolex; note the position of the gland-cells (gc0, first vitelline follicles and rim-like depresiion (rd). 11. Scolex with protruded apex (pa). 12. Sagittal-section of the posterior part of the body. 13, 14. Ovarian region, ventral view; note the irregular shape of the ovary with several lobes on ventral and dorsal sides united via the ovarian isthmus. 15. Sagittal-section at the level of the cirrus-sac; note the uterovaginal duct and single gonopore. 16. Cross-section of the testicular region. Abbreviations: cg, common genital pore; cs, cirrus-sac; dol, dorsal ovarian lobes; eg, eggs; gc, gland-cells; ilm, inner longitudinal musculature; oc, osmoregulatory canal; oca, oocapt; oi, ovarian isthmus; ov, ovary; pa, protruded apical end; pov, postovarian vitelline follicles; rd, rim-like depression; sr, seminal receptacle; te, testes; ug, uterine glands; ut, uterus; uv, uterovaginal duct; va, vagina; vd, vitelline duct; vf, vitelline follicles; voc, ventral osmoregulatory canal; vol, ventral ovarian lobes; vr, vitelline reservoir. Fig. 17. Line drawing of an intrauterine egg from a whole-mount; note a detached operculum.
Figs. 18. Photomicrograph of an egg isolated from the distal part of the uterus of an unstained worm. Abbrevations: op, operculum;vc, vitellocytes.
Figs. 5-8 Lobulovarium longiovatum n. g., n. sp. from Puntius sophore in the Indomalayan region. Scanning electron micrographs of scoleces (5-7) and microtriches (articular filitriches) (8). Abbrevations: pa, protruded apex of the scolex; rd, rim-like depression
