Line Drawing 1

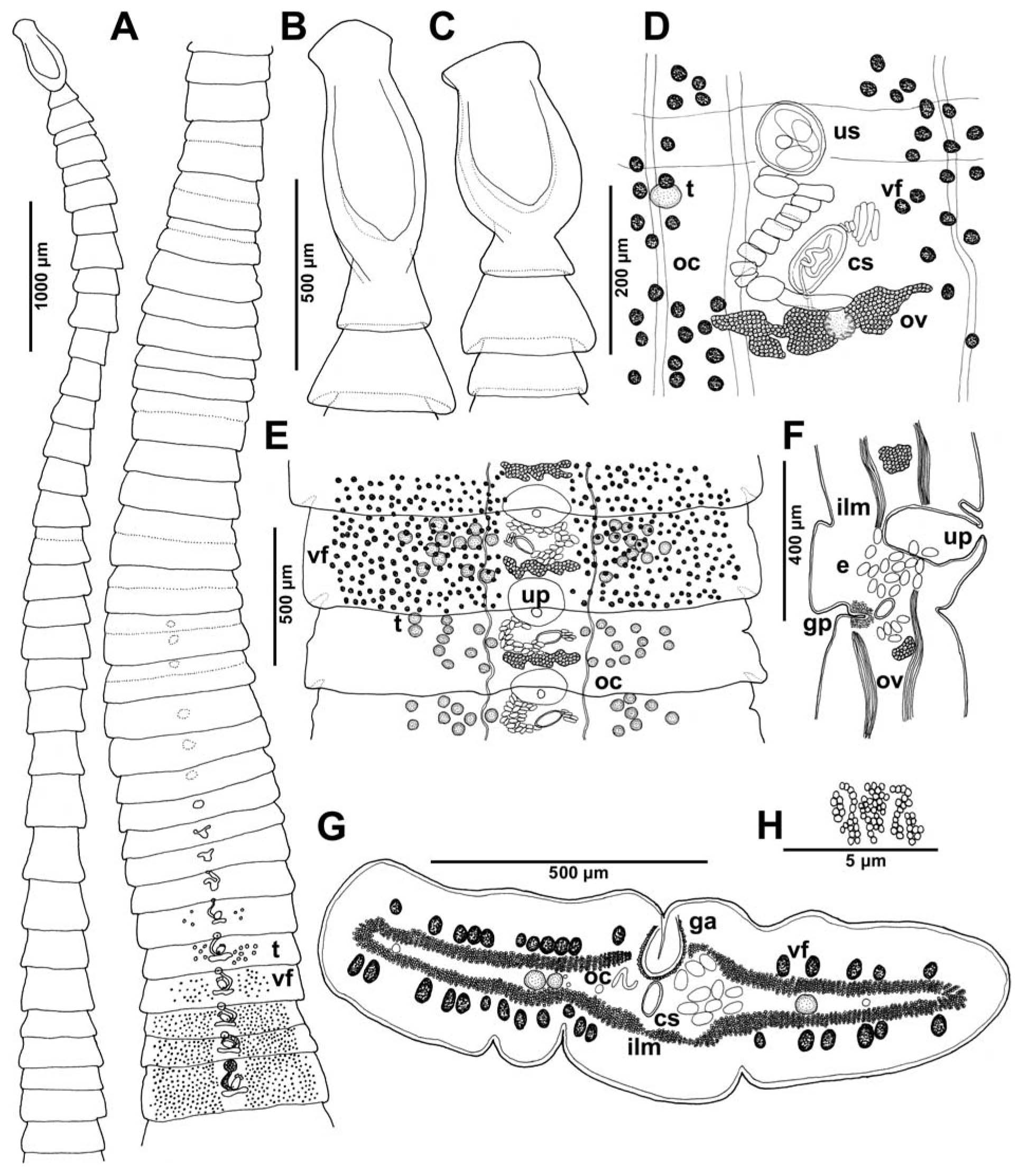

Fig. 1 Bothriocephalus australis n. sp. A, B, D, E, holotype (SAMA AHC 29631); C, F–H, paratype (IPCAS C-510). A, entire anterior part of the strobila; B,C, scolex, dorsoventral view; D, detail of mat... MoreFig. 1 Bothriocephalus australis n. sp. A, B, D, E, holotype (SAMA AHC 29631); C, F–H, paratype (IPCAS C-510). A, entire anterior part of the strobila; B,C, scolex, dorsoventral view; D, detail of mature segment, ventral view; E, diagrammatic drawing of gravid segments, with vitelline follicles illustrated only in the anterior segment, ventral view; F, sagittal section of gravid segments at
the level of the cirrus-sac; G, cross-section at the level of the cirrus-sac; H, detail of a cross-section of longitudinal musculature. Abbreviations: cs, cirrus-sac; e, eggs; ga, genital atrium; gp, genital pore; ilm, inner longitudinal muscles; oc, osmoregulatory canals; ov, ovary; t, testes; up, uterine pore; us, uterus; vf, vitelline follicles. |
Line Drawing 2
|
Photo Micrograph

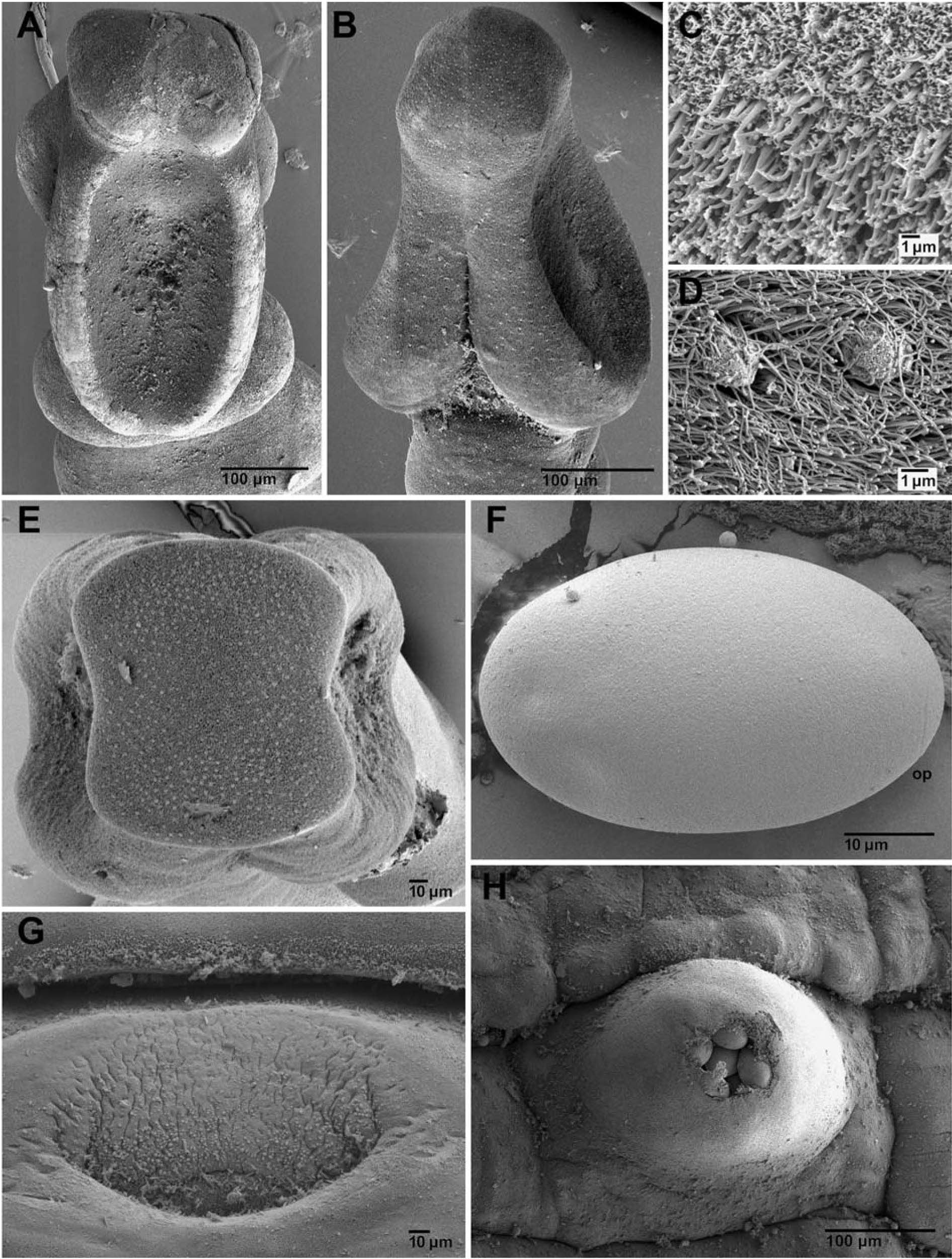

Fig. 2 Scanning electron micrographs of Bothriocephalus australis n. sp. voucher. A, scolex, dorsoventral view; B,
scolex, lateral view; C, detailed view of the posterior margin of
a segment; D, det... MoreFig. 2 Scanning electron micrographs of Bothriocephalus australis n. sp. voucher. A, scolex, dorsoventral view; B,
scolex, lateral view; C, detailed view of the posterior margin of
a segment; D, detail of tumuliform globular structures on the
apical disc; E, apical disc, apical view; F, freshly liberated egg;
G, detail of the genital pore; H, detail of the uterine pore. Abbreviation: op, operculum. |
Scanning Electron Micrograph
|
Global Cestode Database
Fig. 1 Bothriocephalus australis n. sp. A, B, D, E, holotype (SAMA AHC 29631); C, F–H, paratype (IPCAS C-510). A, entire anterior part of the strobila; B,C, scolex, dorsoventral view; D, detail of mature segment, ventral view; E, diagrammatic drawing of gravid segments, with vitelline follicles illustrated only in the anterior segment, ventral view; F, sagittal section of gravid segments at
the level of the cirrus-sac; G, cross-section at the level of the cirrus-sac; H, detail of a cross-section of longitudinal musculature. Abbreviations: cs, cirrus-sac; e, eggs; ga, genital atrium; gp, genital pore; ilm, inner longitudinal muscles; oc, osmoregulatory canals; ov, ovary; t, testes; up, uterine pore; us, uterus; vf, vitelline follicles.
Fig. 2 Scanning electron micrographs of Bothriocephalus australis n. sp. voucher. A, scolex, dorsoventral view; B,
scolex, lateral view; C, detailed view of the posterior margin of
a segment; D, detail of tumuliform globular structures on the
apical disc; E, apical disc, apical view; F, freshly liberated egg;
G, detail of the genital pore; H, detail of the uterine pore. Abbreviation: op, operculum.
