Line Drawing 1

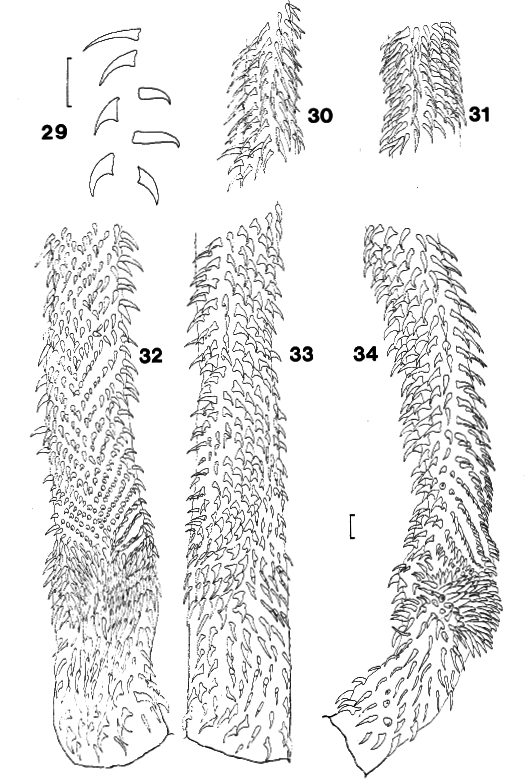

 Figs 29-34. Eutetrarhynchus ocallaghani, sp. nov. 29, profiles of hooks of tentacle; 30, metabasal armature, external surface; 31, metabasal armature, bothridial surface; 32, basal armature, internal ... MoreFigs 29-34. Eutetrarhynchus ocallaghani, sp. nov. 29, profiles of hooks of tentacle; 30, metabasal armature, external surface; 31, metabasal armature, bothridial surface; 32, basal armature, internal surface; 33, basal armature, external surface; 34, basal armature, bothridial surface. Scale lines: 0.01 mm. |
Line Drawing 2

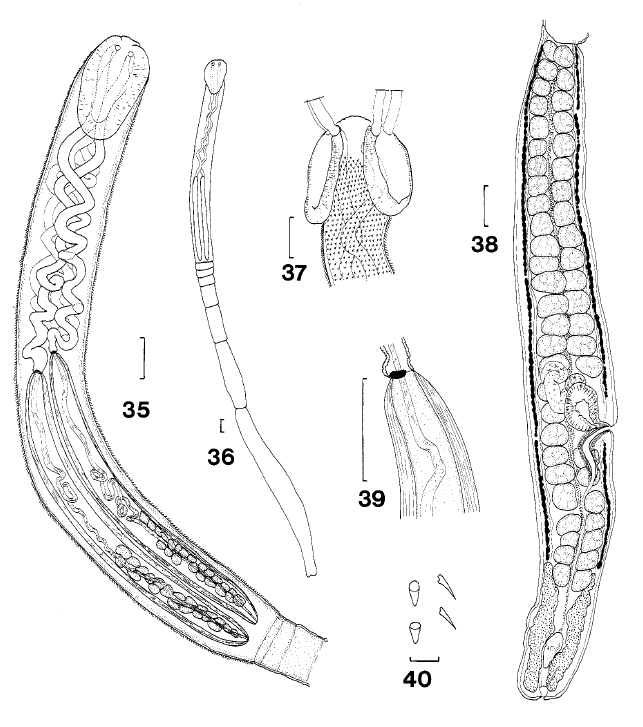

 Figs 35-40. Eutetrarhynchus ocallaghani, sp. nov. 35, scolex; 36, entire cestode; 37, bothridia,
showing sco1ex;spines; 38, mature proglottis; 39, anterior extremity of bulb, showing pre-bulbar organ... MoreFigs 35-40. Eutetrarhynchus ocallaghani, sp. nov. 35, scolex; 36, entire cestode; 37, bothridia,
showing sco1ex;spines; 38, mature proglottis; 39, anterior extremity of bulb, showing pre-bulbar organ; 40, scolex spines. Scale lines: Figs 35-39, 0.1 mm; Fig. 40, 0.01 mm. |
Photo Micrograph
|
Scanning Electron Micrograph
|
