Line Drawing 1

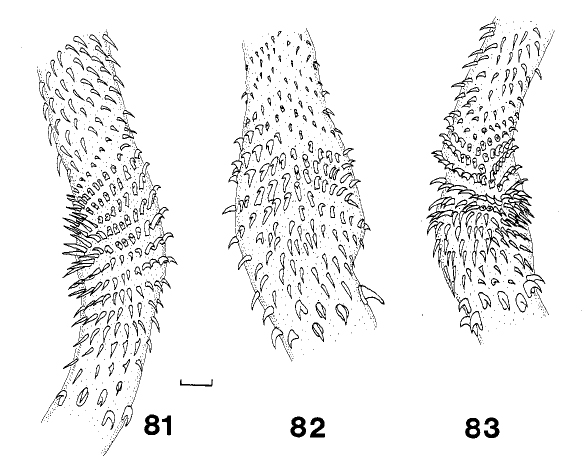

 Figs 81-83. Eutetrarhynchus aetobati, sp. nov. 81, basal armature, bothridial surface; 82, basal
armature, external surface; 83, basal armature, internal surface. Scale line: 0.01 mm. |
Line Drawing 2

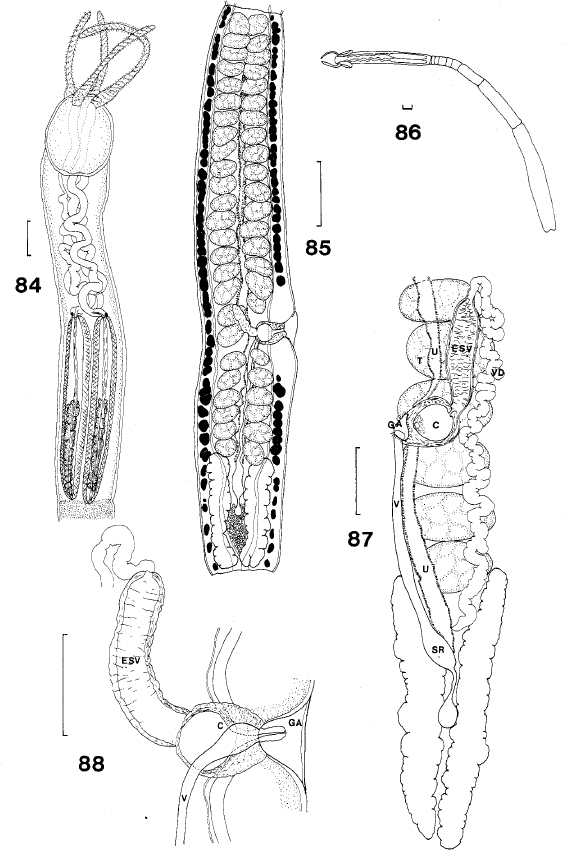

 Figs 84-88. Eutetrarhynchus aetobati, sp. nov. 84, scolex; 85, mature proglottis; 86, entire cestode; 87, lateral view of genitalia, showing external seminal vesicle and vas deferens; 88, distal genit... MoreFigs 84-88. Eutetrarhynchus aetobati, sp. nov. 84, scolex; 85, mature proglottis; 86, entire cestode; 87, lateral view of genitalia, showing external seminal vesicle and vas deferens; 88, distal genitalia. Scale lines: 0.1 mm. Legend: C, cirrus; ESV, external seminal vesicle; GA, genital atrium; SR,
seminal receptacle; T, testis, U, uterus; V, vagina; VD, vas deferens. |
Photo Micrograph
|
Scanning Electron Micrograph
|
