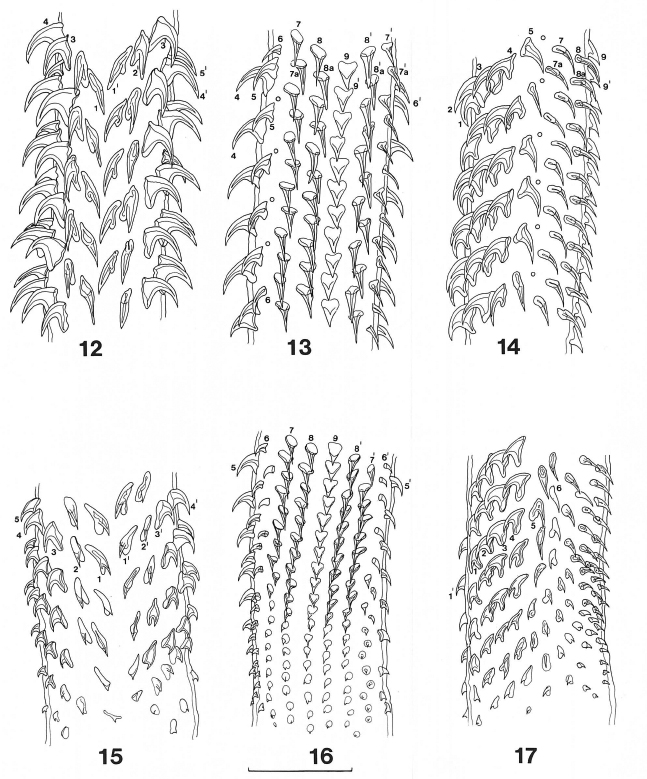

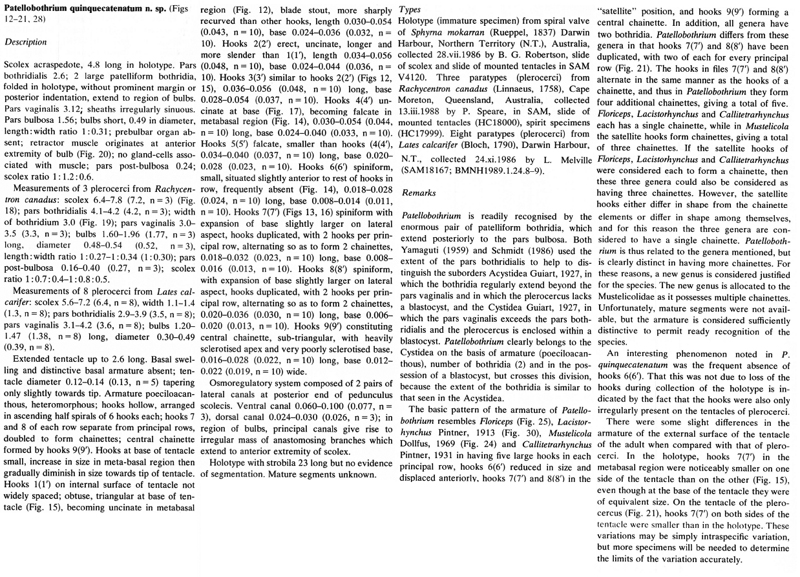

 Figs. 12-17. Patellobothrium quinquecatenatum n. g., n. sp. Tentacular armature. 12. Internal surface, metabasal region, 0.84 from base. 13. External surface, metabasal region, 0.70 from base. 14. Bot... MoreFigs. 12-17. Patellobothrium quinquecatenatum n. g., n. sp. Tentacular armature. 12. Internal surface, metabasal region, 0.84 from base. 13. External surface, metabasal region, 0.70 from base. 14. Bothridial surface, metabasal region, 0.46 from base. 15. Internal surface, basal region. 16. External surface, basal region. 17. Bothridial surface, basal region. Scale-line: 0.01 mm. Figures 12-14, 16 & 17 holotype; Fig. 15 from paratype. Circles indicate the absence of hook 6. |
Line Drawing 2

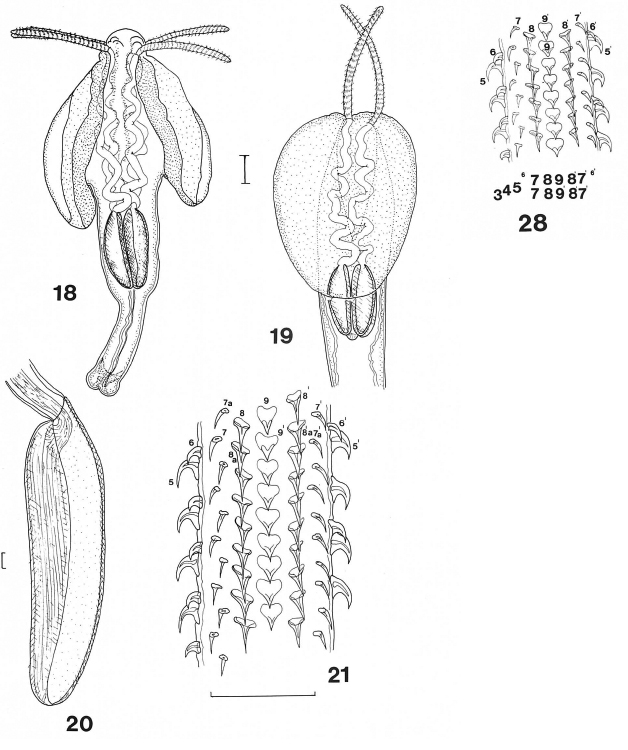

 Figs 18-21. Patellobothrium quinquecatenatum n. g., n. sp. 18. Scolex of paratype, lateral view. 19. Scolex of paratype,
dorso-ventral view. 20. Tentacular bulb. 21. External surface of tentacle, met... MoreFigs 18-21. Patellobothrium quinquecatenatum n. g., n. sp. 18. Scolex of paratype, lateral view. 19. Scolex of paratype,
dorso-ventral view. 20. Tentacular bulb. 21. External surface of tentacle, metabasal region, 0.80 from base, paratype. Scale-lines:
Figs 18, 19, 1.0mm; Figs 20, 21, 0.1 mm. 28. Patellobothrium quinquecatenatum n. g., n. sp. |
