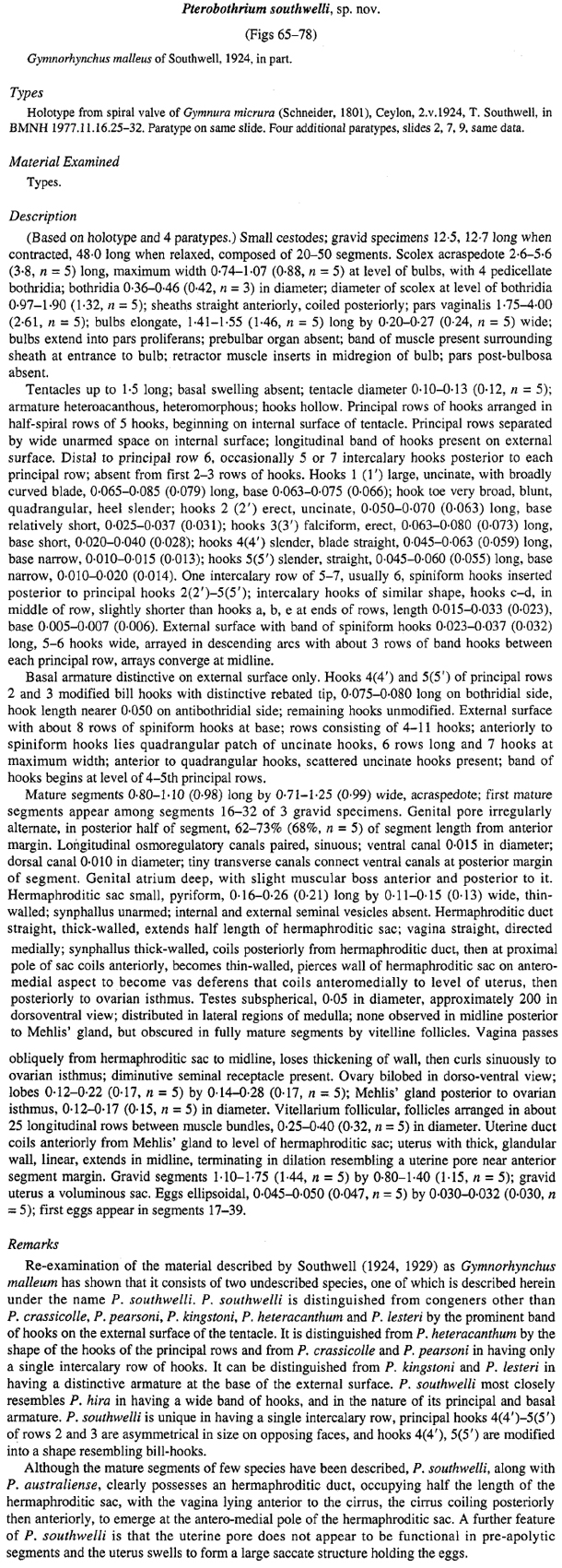

Figs 65-71. Pterobothrium southwelli, sp. nov., from Gymnura micrura. 65, entire worm; 66, mature segment; 67, terminal genitalia, note union of vas deferens with vagina in hermaphroditic sac; 68, gra... MoreFigs 65-71. Pterobothrium southwelli, sp. nov., from Gymnura micrura. 65, entire worm; 66, mature segment; 67, terminal genitalia, note union of vas deferens with vagina in hermaphroditic sac; 68, gravid segment; 69, testes in early mature segment; 70, bulb and retractor muscle; 71, scolex of holotype. Scale lines: 65,O.l mm; 66-71, 0.1 mm. |
Line Drawing 2

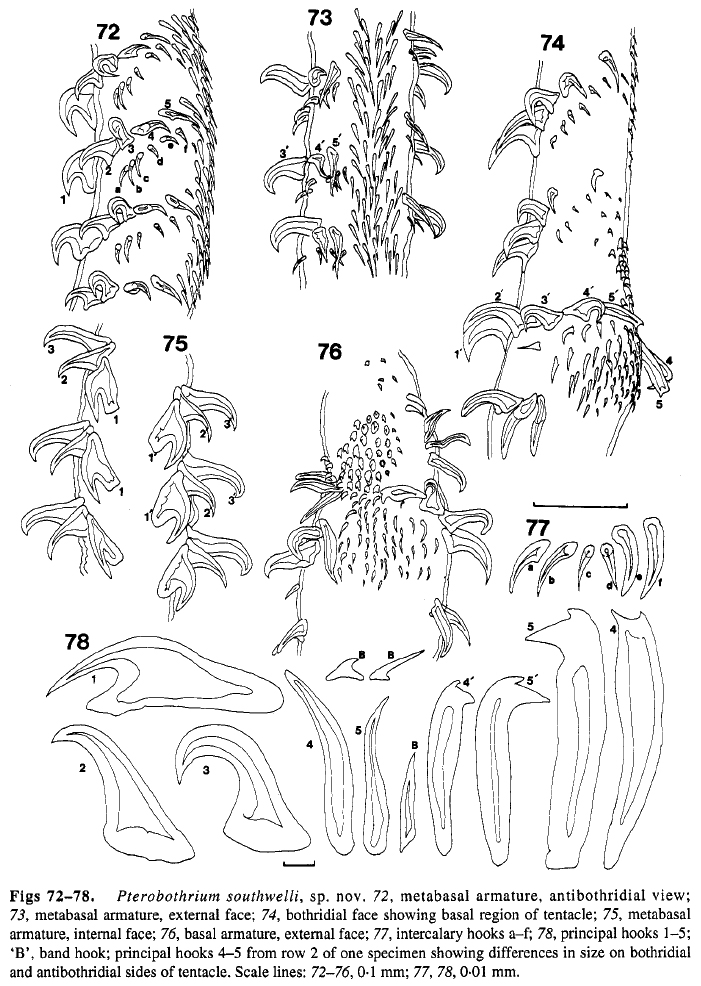

Figs 72-78. Pterobothrium southwelli, sp. nov. 72, metabasal armature, antibothridial view; 73, metabasal armature, external face; 74, bothridial face showing basal region of tentacle; 75, metabasal
... MoreFigs 72-78. Pterobothrium southwelli, sp. nov. 72, metabasal armature, antibothridial view; 73, metabasal armature, external face; 74, bothridial face showing basal region of tentacle; 75, metabasal
armature, internal face; 76, basal armature, external face; 77, intercalary hooks a-f; 78, principal hooks 1-5; 'B', band hook; principal hooks 4-5 from row 2 of one specimen showing differences in size on bothridial and antibothridial sides of tentacle. Scale lines: 72-76, 0.1 mm; 77, 78, 0.01 mm. |
Photo Micrograph
|
Scanning Electron Micrograph
|
Global Cestode Database
Figs 65-71. Pterobothrium southwelli, sp. nov., from Gymnura micrura. 65, entire worm; 66, mature segment; 67, terminal genitalia, note union of vas deferens with vagina in hermaphroditic sac; 68, gravid segment; 69, testes in early mature segment; 70, bulb and retractor muscle; 71, scolex of holotype. Scale lines: 65,O.l mm; 66-71, 0.1 mm.
Figs 72-78. Pterobothrium southwelli, sp. nov. 72, metabasal armature, antibothridial view; 73, metabasal armature, external face; 74, bothridial face showing basal region of tentacle; 75, metabasal
armature, internal face; 76, basal armature, external face; 77, intercalary hooks a-f; 78, principal hooks 1-5; 'B', band hook; principal hooks 4-5 from row 2 of one specimen showing differences in size on bothridial and antibothridial sides of tentacle. Scale lines: 72-76, 0.1 mm; 77, 78, 0.01 mm.
