Line Drawing 1

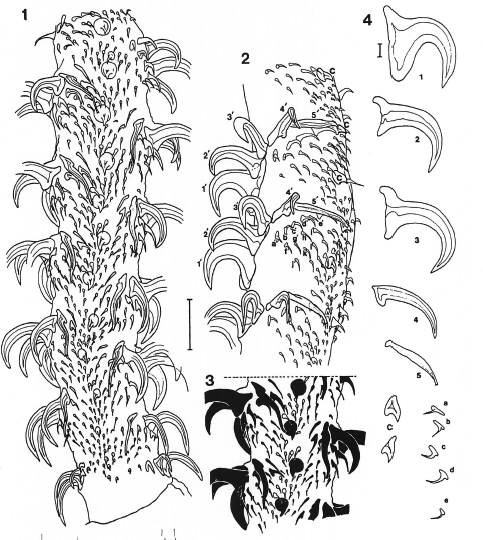

Figures 1-4. Pterobothrioides carvajali n. g., n. sp. 1. External face, showing base of tentacle and metabadal armature, note band of microhooks and simple chainette; 2. Metabasal armature, bothridial... MoreFigures 1-4. Pterobothrioides carvajali n. g., n. sp. 1. External face, showing base of tentacle and metabadal armature, note band of microhooks and simple chainette; 2. Metabasal armature, bothridial face, showinf multiple intercalary rows, chainette (c) and band on external face at right; 3. Metabasal armature, external face, principal hooks and intercalary hooks and chainette (black), enclosed by band of microhooks (white); 4. Hook profiles of principal hooks (1-5); intercalary hooks (a-e); chainette hooks (C). Scale-bars: 1-3, 0.1 mm; 4, 0.01 mm. |
Line Drawing 2

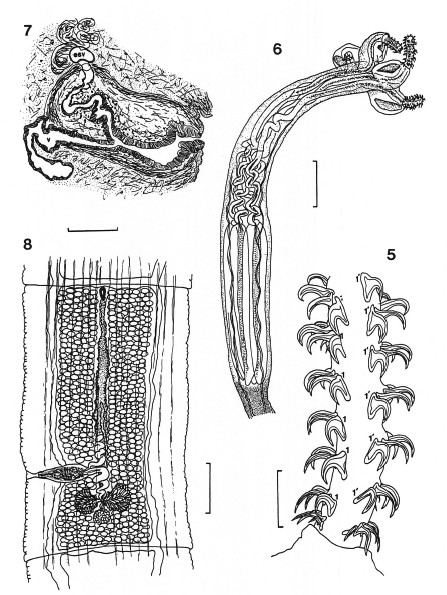

Figures 5-8. Pterobothrioides carvajali n. g., n. sp. 5. Metabasal armature, internal face and base of tentacle; 6. Scolex, paratype; 7. Terminal genitalia, note hermaphroditic sac, external seminal v... MoreFigures 5-8. Pterobothrioides carvajali n. g., n. sp. 5. Metabasal armature, internal face and base of tentacle; 6. Scolex, paratype; 7. Terminal genitalia, note hermaphroditic sac, external seminal vesicle (esv) and vagina (v); 8. Mature segment (vitelline follicles not shown). Scale-bars: 5, 8, 0.2 mm; 6, 1 mm; 7, 0.05mm. |
Photo Micrograph
|
Scanning Electron Micrograph
|
Global Cestode Database
Figures 1-4. Pterobothrioides carvajali n. g., n. sp. 1. External face, showing base of tentacle and metabadal armature, note band of microhooks and simple chainette; 2. Metabasal armature, bothridial face, showinf multiple intercalary rows, chainette (c) and band on external face at right; 3. Metabasal armature, external face, principal hooks and intercalary hooks and chainette (black), enclosed by band of microhooks (white); 4. Hook profiles of principal hooks (1-5); intercalary hooks (a-e); chainette hooks (C). Scale-bars: 1-3, 0.1 mm; 4, 0.01 mm.
Figures 5-8. Pterobothrioides carvajali n. g., n. sp. 5. Metabasal armature, internal face and base of tentacle; 6. Scolex, paratype; 7. Terminal genitalia, note hermaphroditic sac, external seminal vesicle (esv) and vagina (v); 8. Mature segment (vitelline follicles not shown). Scale-bars: 5, 8, 0.2 mm; 6, 1 mm; 7, 0.05mm.
