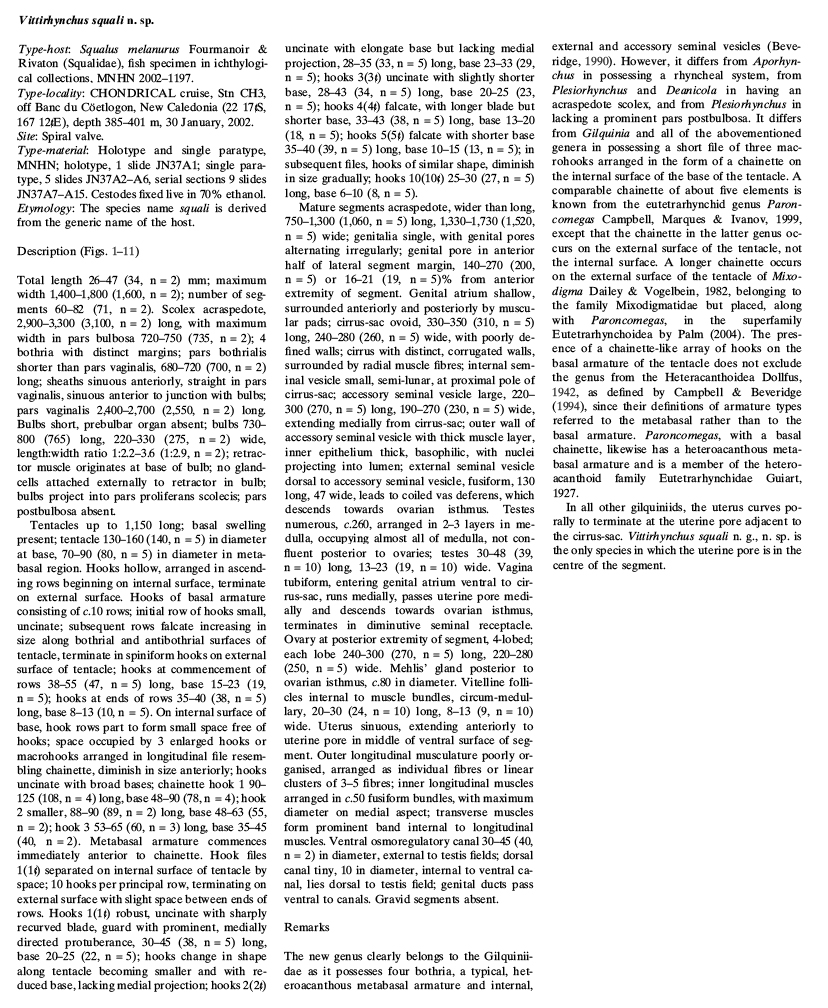

Line Drawing 1

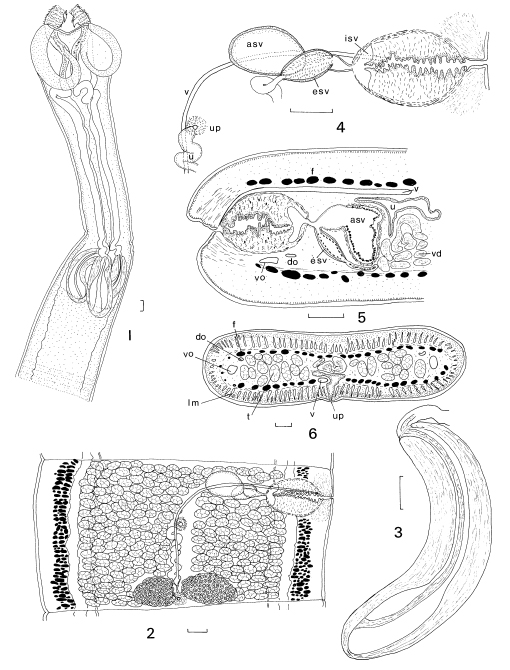

 Figs. 16 Vittirhynchus squali n. g., n. sp. from Squalus melanurus off New Caledonia. 1. Scolex. 2. Mature segment. 3. Bulb and origin of retractor muscle. 4. Terminal genitalia. 5. Composite diagram... MoreFigs. 16 Vittirhynchus squali n. g., n. sp. from Squalus melanurus off New Caledonia. 1. Scolex. 2. Mature segment. 3. Bulb and origin of retractor muscle. 4. Terminal genitalia. 5. Composite diagram of transverse sections through terminal genitalia (longitudinal muscles
not shown). 6. Transverse section at level of uterine pore. Abbreviations: asv, accessory seminal vesicle; do, dorsal osmoregulatory pore; esv, external seminal vesicle; f, vitelline follicle; isv, internal seminal vesicle; lm, longitudinal muscle; t, testis; u, uterus; up, uterine pore; v, vagina, vd, vas deferens; vo, ventral osmoregulatory canal. Scalebars: 100 lm |
Line Drawing 2

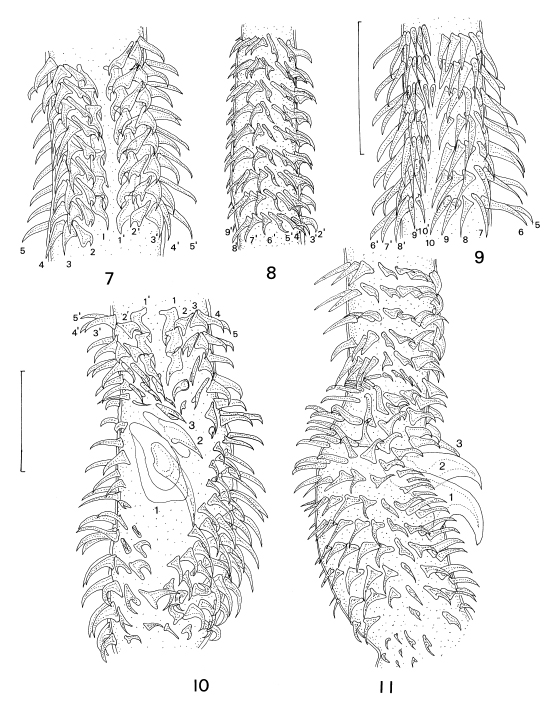

 Figs. 711 Vittirhynchus squali n. g., n. sp. from Squalus melanurus off New Caledonia. Tentacular armature. 7.Metabasal region, internal surface, bothrial surface on right hand side. 8. Metabasal reg... MoreFigs. 711 Vittirhynchus squali n. g., n. sp. from Squalus melanurus off New Caledonia. Tentacular armature. 7.Metabasal region, internal surface, bothrial surface on right hand side. 8. Metabasal region, bothrial surface,
internal surface on right hand side. 9. Metabasal region, external surface, bothrial surface on left hand side. 10. Basal region, internal surface, bothrial surface on left hand
side; larger numerals (13) indicate hooks of chainette. 11. Basal region, bothrial surface; larger numerals (13) indicate hooks of chainette. Scale-bars: 100 lm; figures 7,8,10,11 to same scale |
Photo Micrograph
|
Scanning Electron Micrograph
|
