Line Drawing 1

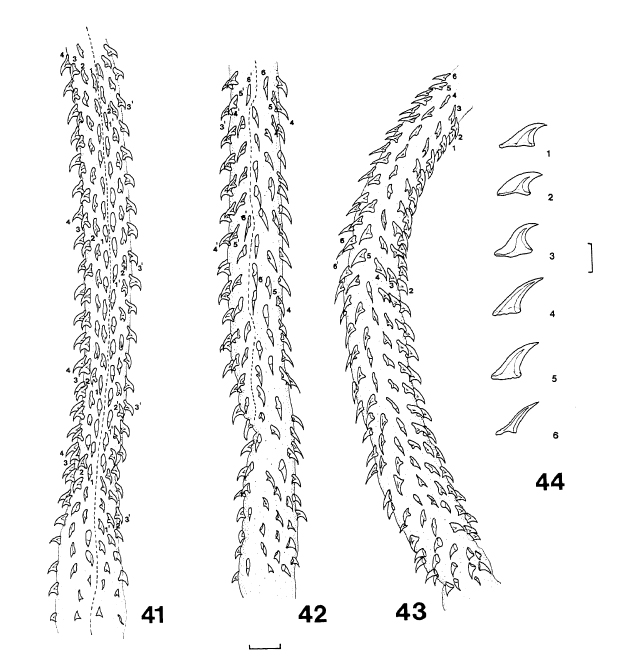

Figs 41-44. Plesiorhynchus etmopteri, gen. et sp. nov., tentacular armture: 41, internal surface, basal and metabasal region (dotted line shows division between hooks 1 and 1'); 42, external surface, ... MoreFigs 41-44. Plesiorhynchus etmopteri, gen. et sp. nov., tentacular armture: 41, internal surface, basal and metabasal region (dotted line shows division between hooks 1 and 1'); 42, external surface, basal and metabasal regions (dotted line shows division between hooks 6 and 6'); 43, bothridial surface, basal and metabasal regions; 44, profiles of hooks 1-6. Scale lines: 41-43, 0.025mm; 44, 0.01mm. |
Line Drawing 2

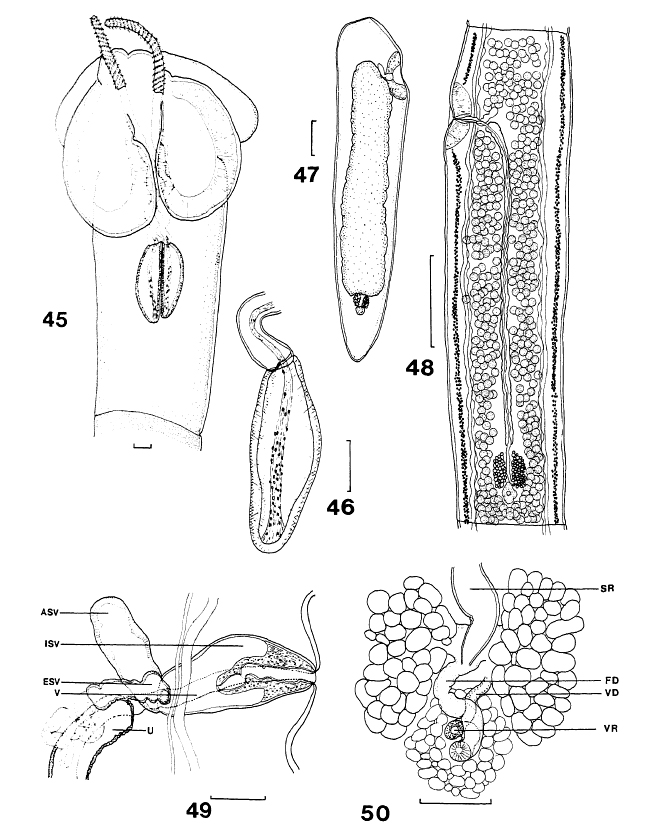

Figs 45-50. Plesiorhynchus etmopteri, gen. et sp. nov.: 45, scolex; 46, bulb; 47, gravid proglottis; 48, mature proglottis; 49, cirrus sac and seminal vesicles, dorsal view; 50, female genital complex... MoreFigs 45-50. Plesiorhynchus etmopteri, gen. et sp. nov.: 45, scolex; 46, bulb; 47, gravid proglottis; 48, mature proglottis; 49, cirrus sac and seminal vesicles, dorsal view; 50, female genital complex, dorsal view. Scale lines: 45, 46, 49, 50, 0.1mm. Abbreviations as for Figs 21-28; VD, vitelline duct. Abbreviations: ASV, accessory seminal vesicle; DOC, dorsal osmoregulatory canal; ESV, external seminal vesicle; FD, fertilisation duct; ISV, internal seminal vesicle; O, ovary; OI, ovarian isthmus; SR, seminal receptacle; T, testis; U, uterus; V, vagina; VC, vitelline canal; VOC, ventral osmoregulatory canal; VR, vitelline reservoir. |
Photo Micrograph
|
Scanning Electron Micrograph
|
Global Cestode Database
Figs 41-44. Plesiorhynchus etmopteri, gen. et sp. nov., tentacular armture: 41, internal surface, basal and metabasal region (dotted line shows division between hooks 1 and 1'); 42, external surface, basal and metabasal regions (dotted line shows division between hooks 6 and 6'); 43, bothridial surface, basal and metabasal regions; 44, profiles of hooks 1-6. Scale lines: 41-43, 0.025mm; 44, 0.01mm.
Figs 45-50. Plesiorhynchus etmopteri, gen. et sp. nov.: 45, scolex; 46, bulb; 47, gravid proglottis; 48, mature proglottis; 49, cirrus sac and seminal vesicles, dorsal view; 50, female genital complex, dorsal view. Scale lines: 45, 46, 49, 50, 0.1mm. Abbreviations as for Figs 21-28; VD, vitelline duct. Abbreviations: ASV, accessory seminal vesicle; DOC, dorsal osmoregulatory canal; ESV, external seminal vesicle; FD, fertilisation duct; ISV, internal seminal vesicle; O, ovary; OI, ovarian isthmus; SR, seminal receptacle; T, testis; U, uterus; V, vagina; VC, vitelline canal; VOC, ventral osmoregulatory canal; VR, vitelline reservoir.
