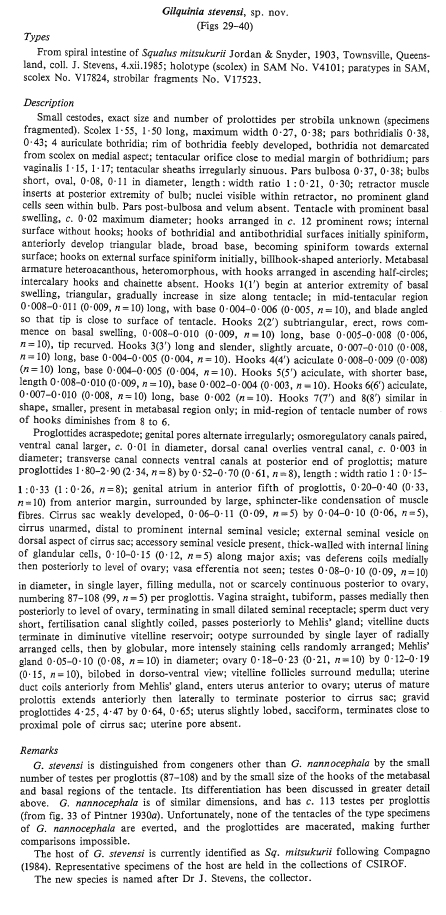

Line Drawing 1

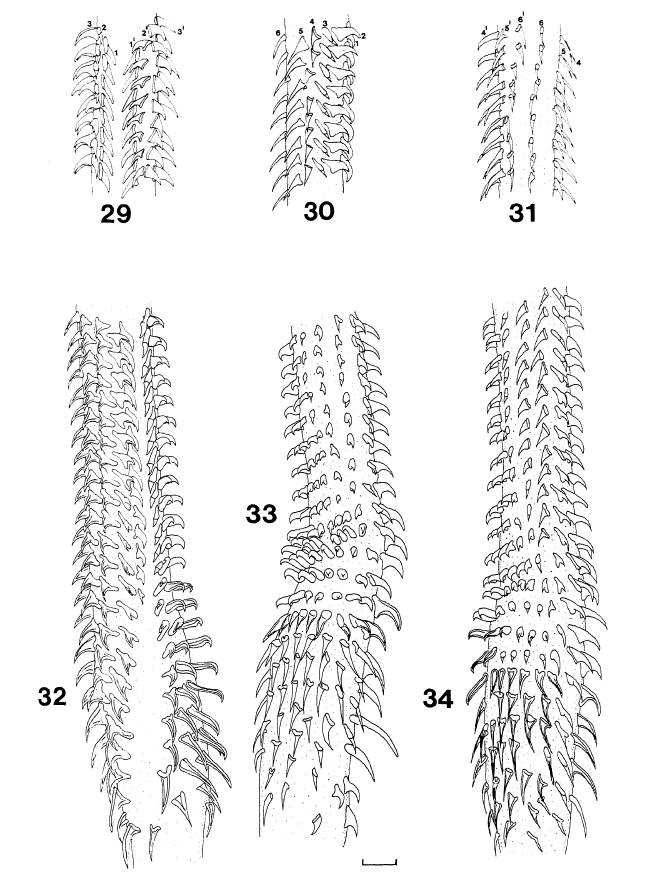

Figs 29-34. Gilquinia stevensi, sp. nov., tentacular armature: 29, metabasal region, internal surface; 30, metabasal region, bothridial surface, internal surface on right-hand side; 31, metabasal regi... MoreFigs 29-34. Gilquinia stevensi, sp. nov., tentacular armature: 29, metabasal region, internal surface; 30, metabasal region, bothridial surface, internal surface on right-hand side; 31, metabasal region, external surface; 32, basal swelling, internal surface; 33, basal swelling, bothridial surface, internal surface on right-hand side; 34, basal swelling, external surface. Scale line, 0.01mm |
Line Drawing 2

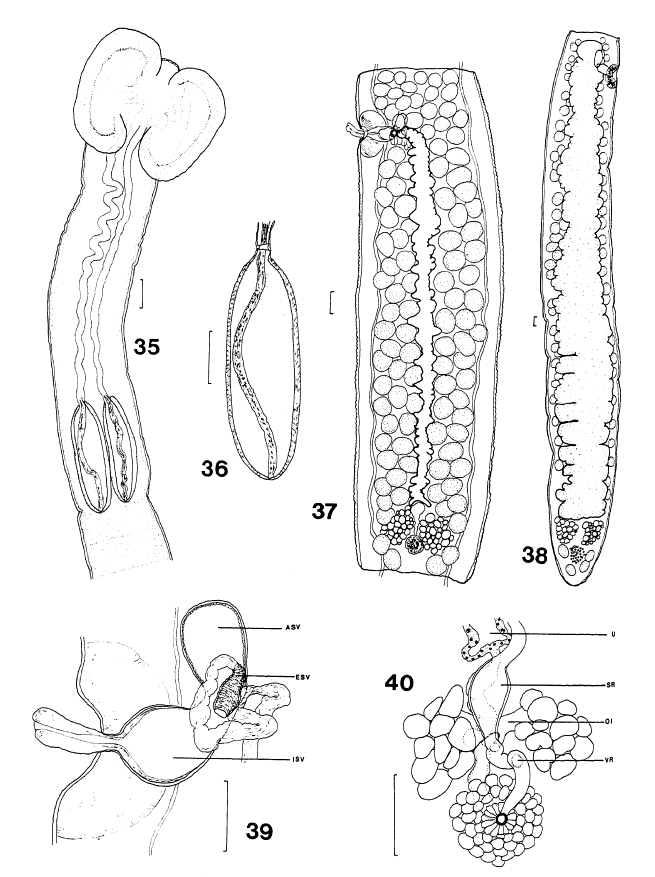

Figs 35-40. Gilquinia stevensi, sp. nov.: 35, scolex; 36, bulbs; 37, mature proglottis; 38, gravid proglottis; 39, cirrus sac with everted cirrus and seminal vesicles; 40, female genital complex. Scal... MoreFigs 35-40. Gilquinia stevensi, sp. nov.: 35, scolex; 36, bulbs; 37, mature proglottis; 38, gravid proglottis; 39, cirrus sac with everted cirrus and seminal vesicles; 40, female genital complex. Scale lines, 0.1mm. Abbreviations as for Figs 21-28. Abbreviations: ASV, accessory seminal vesicle; DOC, dorsal osmoregulatory canal; ESV, external seminal vesicle; FD, fertilisation duct; ISV, internal seminal vesicle; O, ovary; OI, ovarian isthmus; SR, seminal receptacle; T, testis; U, uterus; V, vagina; VC, vitelline canal; VOC, ventral osmoregulatory canal; VR, vitelline reservoir. |
Photo Micrograph
|
Scanning Electron Micrograph
|
Global Cestode Database
Figs 29-34. Gilquinia stevensi, sp. nov., tentacular armature: 29, metabasal region, internal surface; 30, metabasal region, bothridial surface, internal surface on right-hand side; 31, metabasal region, external surface; 32, basal swelling, internal surface; 33, basal swelling, bothridial surface, internal surface on right-hand side; 34, basal swelling, external surface. Scale line, 0.01mm
Figs 35-40. Gilquinia stevensi, sp. nov.: 35, scolex; 36, bulbs; 37, mature proglottis; 38, gravid proglottis; 39, cirrus sac with everted cirrus and seminal vesicles; 40, female genital complex. Scale lines, 0.1mm. Abbreviations as for Figs 21-28. Abbreviations: ASV, accessory seminal vesicle; DOC, dorsal osmoregulatory canal; ESV, external seminal vesicle; FD, fertilisation duct; ISV, internal seminal vesicle; O, ovary; OI, ovarian isthmus; SR, seminal receptacle; T, testis; U, uterus; V, vagina; VC, vitelline canal; VOC, ventral osmoregulatory canal; VR, vitelline reservoir.
