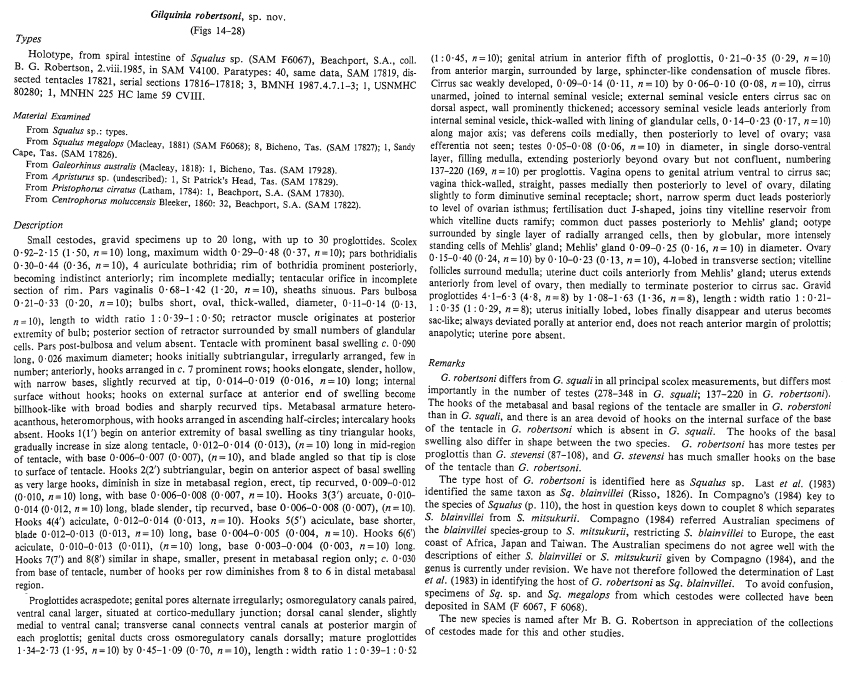

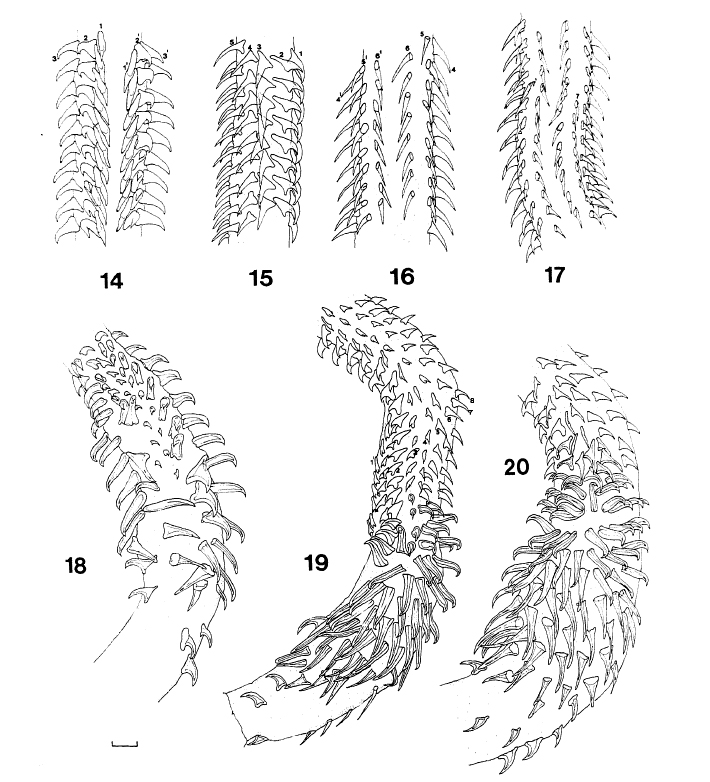

Figs 14-20. Gilquinia robertsoni, sp. nov., tentacular armature: 14, metabasal region, internal surface; 15, metabasal region, bothridial surface, internal surface on right-hand side; 16, metabasal re... MoreFigs 14-20. Gilquinia robertsoni, sp. nov., tentacular armature: 14, metabasal region, internal surface; 15, metabasal region, bothridial surface, internal surface on right-hand side; 16, metabasal region, external surface; 17, metabasal region, 0.3mm from base of tentacle, external surface showing end of rows 7(7') (marked by numerals); 18, basal swelling, internal surface; 19, basal swelling and metabasal region, bothridial surface, internal surface on the left-hand side; 20, basal swelling, external surface. Scale line, 0.01mm. |
Line Drawing 2

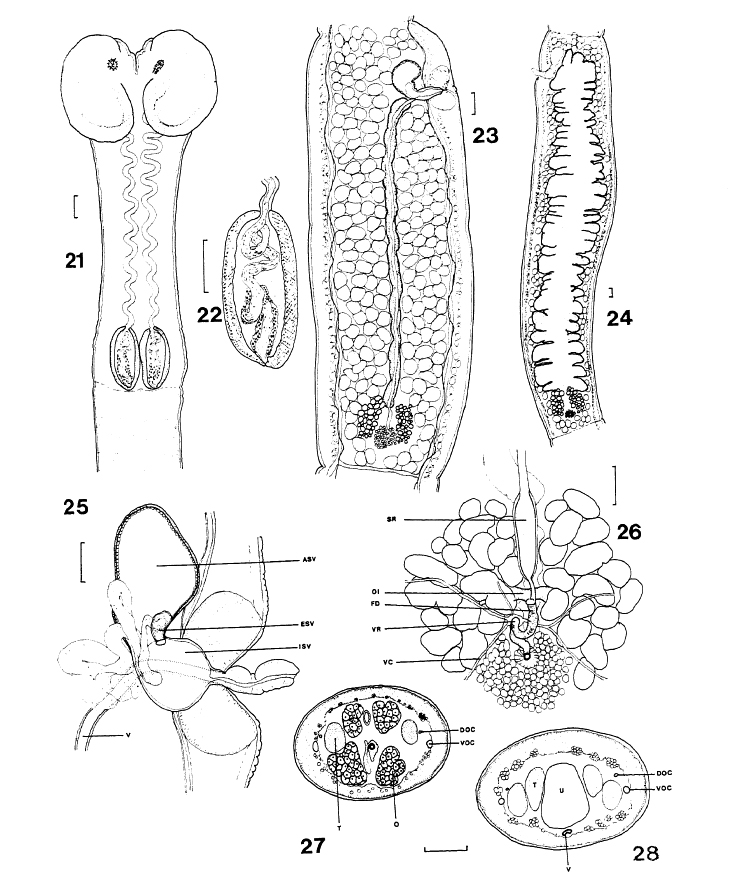

Figs. 21-28. Gilquinia roberstoni, sp. nov.: 21, scolex; 22, bulb; 23, mature proglottis; 24, gravid proglottis; 25, cirrus sac with everted cirrus and seminal vesicles; 26, female genital complex; 27... MoreFigs. 21-28. Gilquinia roberstoni, sp. nov.: 21, scolex; 22, bulb; 23, mature proglottis; 24, gravid proglottis; 25, cirrus sac with everted cirrus and seminal vesicles; 26, female genital complex; 27, transverse section showing four-lobed ovary; 28, transverse section showing single layer of testes. Scale lines, 0.1mm. Abbreviations: ASV, accessory seminal vesicle; DOC, dorsal osmoregulatory canal; ESV, external seminal vesicle; FD, fertilisation duct; ISV, internal seminal vesicle; O, ovary; OI, ovarian isthmus; SR, seminal receptacle; T, testis; U, uterus; V, vagina; VC, vitelline canal; VOC, ventral osmoregulatory canal; VR, vitelline reservoir. |
Photo Micrograph
|
Scanning Electron Micrograph
|
Global Cestode Database
Figs 14-20. Gilquinia robertsoni, sp. nov., tentacular armature: 14, metabasal region, internal surface; 15, metabasal region, bothridial surface, internal surface on right-hand side; 16, metabasal region, external surface; 17, metabasal region, 0.3mm from base of tentacle, external surface showing end of rows 7(7') (marked by numerals); 18, basal swelling, internal surface; 19, basal swelling and metabasal region, bothridial surface, internal surface on the left-hand side; 20, basal swelling, external surface. Scale line, 0.01mm.
Figs. 21-28. Gilquinia roberstoni, sp. nov.: 21, scolex; 22, bulb; 23, mature proglottis; 24, gravid proglottis; 25, cirrus sac with everted cirrus and seminal vesicles; 26, female genital complex; 27, transverse section showing four-lobed ovary; 28, transverse section showing single layer of testes. Scale lines, 0.1mm. Abbreviations: ASV, accessory seminal vesicle; DOC, dorsal osmoregulatory canal; ESV, external seminal vesicle; FD, fertilisation duct; ISV, internal seminal vesicle; O, ovary; OI, ovarian isthmus; SR, seminal receptacle; T, testis; U, uterus; V, vagina; VC, vitelline canal; VOC, ventral osmoregulatory canal; VR, vitelline reservoir.
