Line Drawing 1

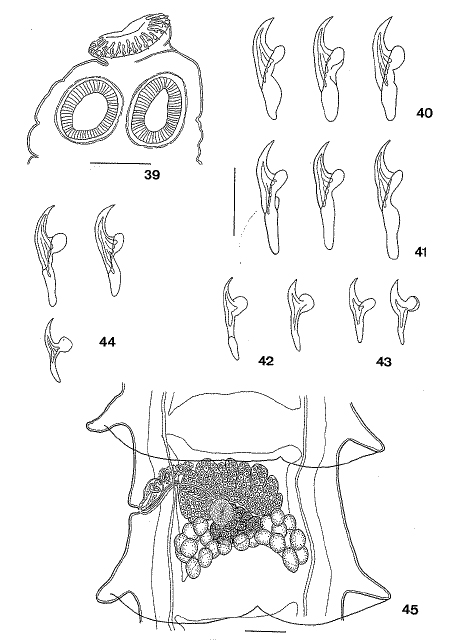

Figs 39-45 Mariauxilepis paraguayensis gen. n., sp. n., holotype (from Nyctidromus albicollis) and a paratype (from Setopagis parvula): 39, scolex of the holotype; 40-43, rostellar hooks of the holoty... MoreFigs 39-45 Mariauxilepis paraguayensis gen. n., sp. n., holotype (from Nyctidromus albicollis) and a paratype (from Setopagis parvula): 39, scolex of the holotype; 40-43, rostellar hooks of the holotype: 40, anterior rostellar hooks with ventral or dorsal position in the crown; 41, anterior rostellar hooks with lateral position in the crown; 42, posterior rostellar hook with dorsal (or ventral) position (left) and rather intermediate position (right) in the crown; 43, posterior rostellar hooks with lateral position in the crown; 44, rostellar hooks of the paratype; 45, mature proglottis, dorsal view, holotype. Scale bars: 39, 45 = 100µm; 40-44 = 20µm. |
Line Drawing 2

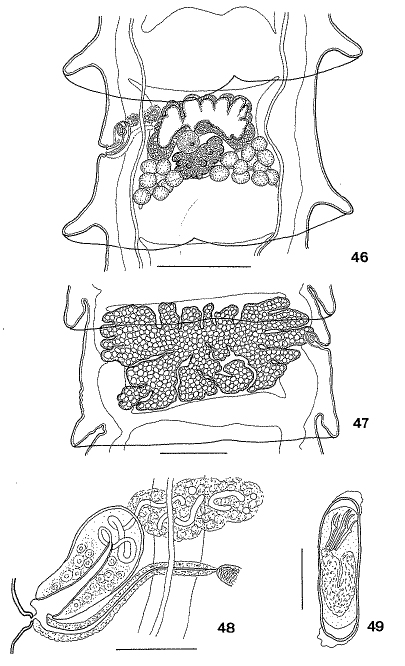

Figs 46-49 Mariauxilepis paraguyayensis gen. n., sp. n., specimen from Nyctidromus albicollis (holotype): 46, mature proglottis showing an early stage of the uterine development, dorsal view; 47, pre-... MoreFigs 46-49 Mariauxilepis paraguyayensis gen. n., sp. n., specimen from Nyctidromus albicollis (holotype): 46, mature proglottis showing an early stage of the uterine development, dorsal view; 47, pre-gravid proglottis; 48, genital ducts, dorsal view; 49, egg. Scale bars: 46-47 = 250µm; 48 = 50µm; 49 = 20µm. |
Photo Micrograph
|
Scanning Electron Micrograph
|
Global Cestode Database
Figs 39-45 Mariauxilepis paraguayensis gen. n., sp. n., holotype (from Nyctidromus albicollis) and a paratype (from Setopagis parvula): 39, scolex of the holotype; 40-43, rostellar hooks of the holotype: 40, anterior rostellar hooks with ventral or dorsal position in the crown; 41, anterior rostellar hooks with lateral position in the crown; 42, posterior rostellar hook with dorsal (or ventral) position (left) and rather intermediate position (right) in the crown; 43, posterior rostellar hooks with lateral position in the crown; 44, rostellar hooks of the paratype; 45, mature proglottis, dorsal view, holotype. Scale bars: 39, 45 = 100µm; 40-44 = 20µm.
Figs 46-49 Mariauxilepis paraguyayensis gen. n., sp. n., specimen from Nyctidromus albicollis (holotype): 46, mature proglottis showing an early stage of the uterine development, dorsal view; 47, pre-gravid proglottis; 48, genital ducts, dorsal view; 49, egg. Scale bars: 46-47 = 250µm; 48 = 50µm; 49 = 20µm.
Holotype: MNHG-INVE No. 33845
