Line Drawing 1

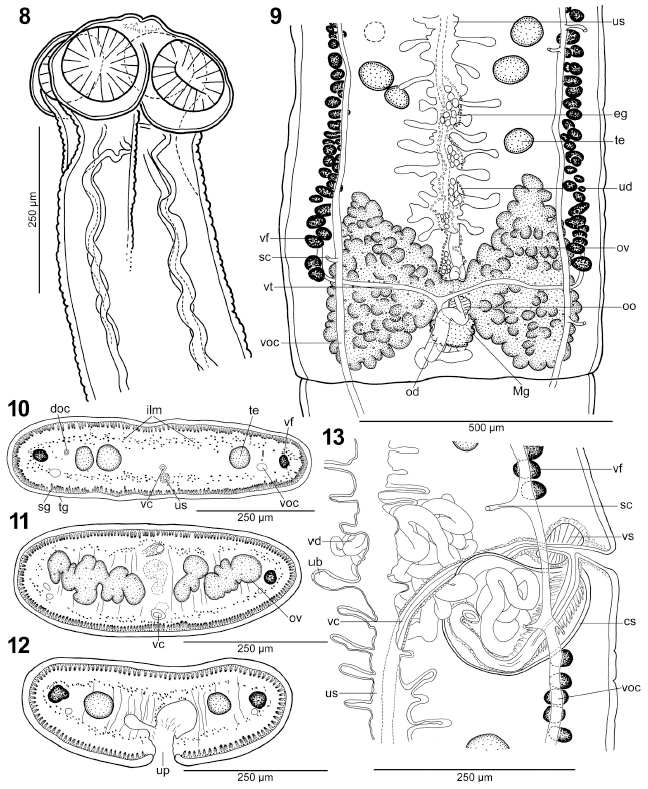

Figs. 8–13. Line drawings of Ophiotaenia oreae n. sp. from Compsophis infralineatus, Madagascar (holotype; MHNG-PLAT-0079572). 8. Scolex, frontal view. 9. Detail of posterior part of pregravid proglot... MoreFigs. 8–13. Line drawings of Ophiotaenia oreae n. sp. from Compsophis infralineatus, Madagascar (holotype; MHNG-PLAT-0079572). 8. Scolex, frontal view. 9. Detail of posterior part of pregravid proglottid. 10. Cross section at level of posterior part of mature proglottid. 11. Cross section at level of ovary. 12. Cross section of anterior part of gravid proglottid. 13. Terminal genitalia with cirrus-sac and vagina; gravid proglottid. Abbreviations (Figs. 8–15): cs—cirrus-sac; doc—dorsal osmoregulatory canals; eg—eggs; ilm—inner longitudinal muscles; Mg—Mehlis’ gland; od—oviduct; oo—oocapt; ov—ovary; sc—secondary canals;
sg—subtegumental cells; te—testis; tg—tegument; ub—uterine branches (diverticula); ud—uteroduct; up—uterine pore; us—uterine stem; vc—vaginal canal; vd—vas deferens; vf—vitelline follicles; voc—ventral osmoregulatory canal; vs—vaginal sphincter; vt—vitelloduct. |
Line Drawing 2

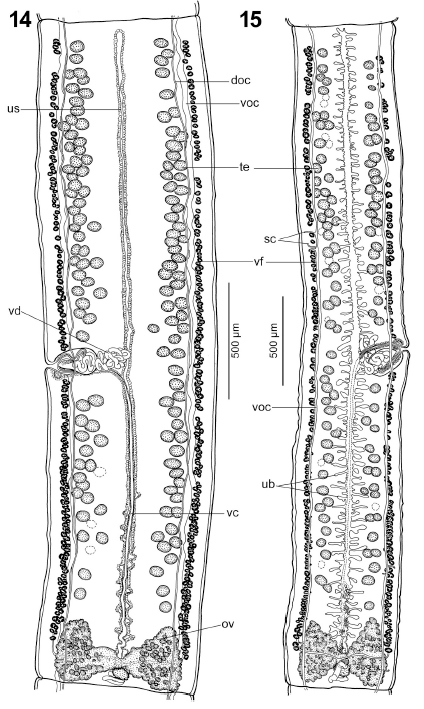

Figs. 14, 15. Line drawings of Ophiotaenia oreae n. sp., holotype, from Compsophis infralineatus, Madagascar (MHNG-PLAT-0079572). 14. Mature pregravid, dorsal view. 15. Gravid proglottid, ventral view... MoreFigs. 14, 15. Line drawings of Ophiotaenia oreae n. sp., holotype, from Compsophis infralineatus, Madagascar (MHNG-PLAT-0079572). 14. Mature pregravid, dorsal view. 15. Gravid proglottid, ventral view. |
Photo Micrograph
|
Scanning Electron Micrograph

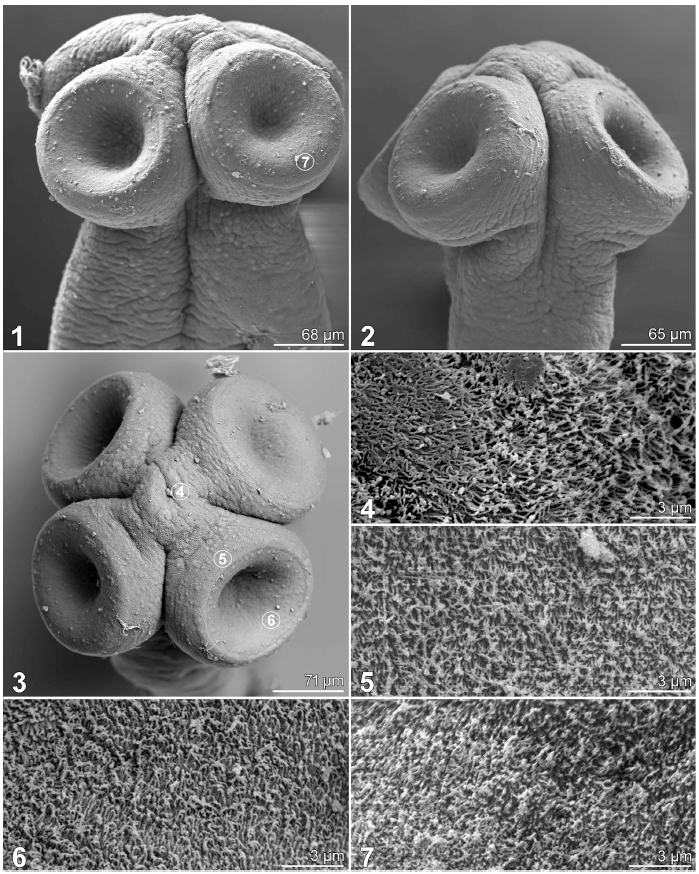

Figs. 1–7. Scanning electronic micrographs of Ophiotaenia oreae n. sp. from Compsophis infralineatus, Madagascar (MHNG-PLAT-0079571). 1. Scolex, frontal view. 2. Scolex, lateral view. 3. Scolex, apica... MoreFigs. 1–7. Scanning electronic micrographs of Ophiotaenia oreae n. sp. from Compsophis infralineatus, Madagascar (MHNG-PLAT-0079571). 1. Scolex, frontal view. 2. Scolex, lateral view. 3. Scolex, apical view. 4–7. Microtriches on the apex of the scolex, external (non-adherent) surface of suckers, luminal surface of suckers and their upper rim, respectively. |
Global Cestode Database
Figs. 8–13. Line drawings of Ophiotaenia oreae n. sp. from Compsophis infralineatus, Madagascar (holotype; MHNG-PLAT-0079572). 8. Scolex, frontal view. 9. Detail of posterior part of pregravid proglottid. 10. Cross section at level of posterior part of mature proglottid. 11. Cross section at level of ovary. 12. Cross section of anterior part of gravid proglottid. 13. Terminal genitalia with cirrus-sac and vagina; gravid proglottid. Abbreviations (Figs. 8–15): cs—cirrus-sac; doc—dorsal osmoregulatory canals; eg—eggs; ilm—inner longitudinal muscles; Mg—Mehlis’ gland; od—oviduct; oo—oocapt; ov—ovary; sc—secondary canals;
sg—subtegumental cells; te—testis; tg—tegument; ub—uterine branches (diverticula); ud—uteroduct; up—uterine pore; us—uterine stem; vc—vaginal canal; vd—vas deferens; vf—vitelline follicles; voc—ventral osmoregulatory canal; vs—vaginal sphincter; vt—vitelloduct.
Figs. 14, 15. Line drawings of Ophiotaenia oreae n. sp., holotype, from Compsophis infralineatus, Madagascar (MHNG-PLAT-0079572). 14. Mature pregravid, dorsal view. 15. Gravid proglottid, ventral view.
Figs. 1–7. Scanning electronic micrographs of Ophiotaenia oreae n. sp. from Compsophis infralineatus, Madagascar (MHNG-PLAT-0079571). 1. Scolex, frontal view. 2. Scolex, lateral view. 3. Scolex, apical view. 4–7. Microtriches on the apex of the scolex, external (non-adherent) surface of suckers, luminal surface of suckers and their upper rim, respectively.
