Line Drawing 1

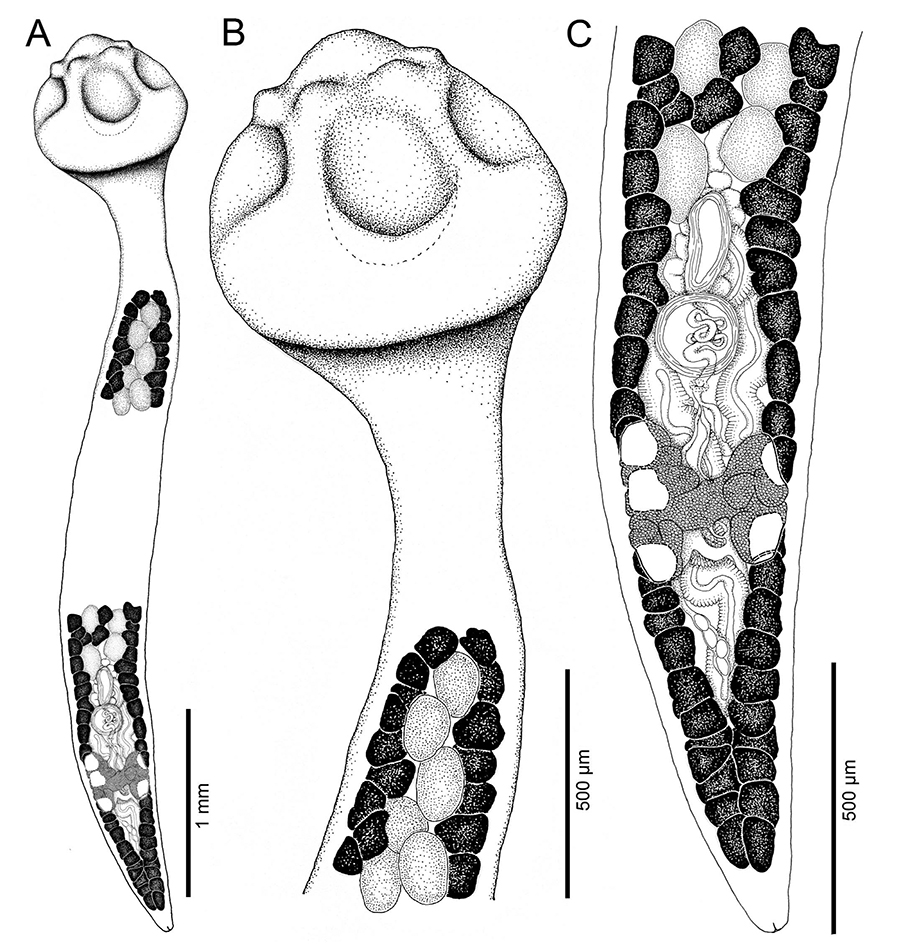

Figure 6. Line drawings of Archigetes megacephalus n. sp. from Ictiobus niger (Rafinesque), Chotard Lake near Vicksburg, Mississippi, USA (US 244b, IPCAS C-904/3, PBI-417). A total view (testes and ... MoreFigure 6. Line drawings of Archigetes megacephalus n. sp. from Ictiobus niger (Rafinesque), Chotard Lake near Vicksburg, Mississippi, USA (US 244b, IPCAS C-904/3, PBI-417). A total view (testes and vitelline follicles are not illustrated in the middle portion of the body), B anterior part with scolex, C posterior part. |
Line Drawing 2
|
Photo Micrograph

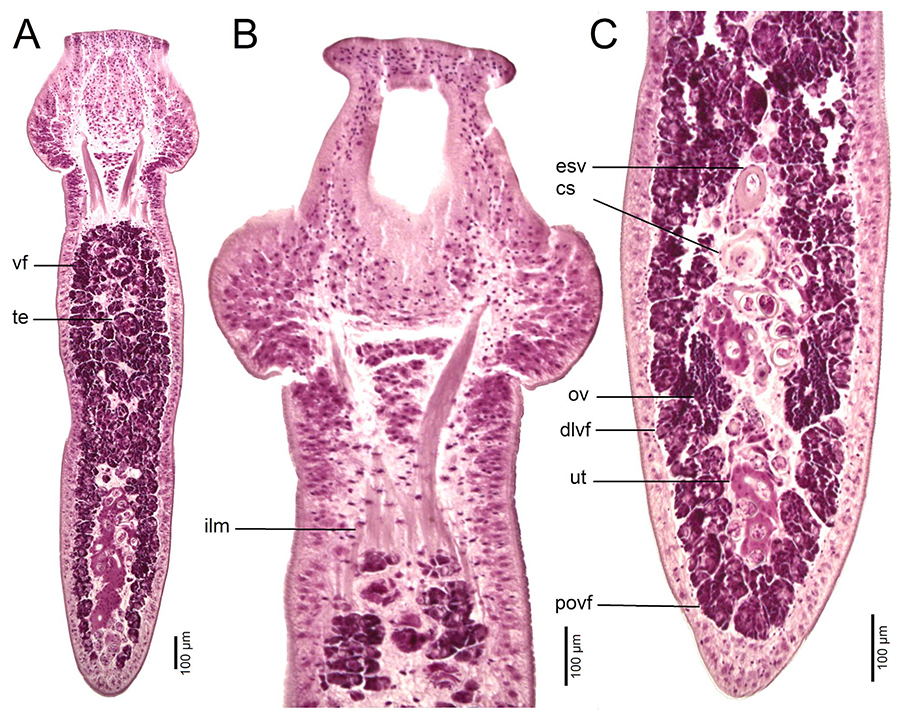

Figure 8. Histological section of Archigetes megacephalus n. sp. from Ictiobus cyprinellus (Valenciennes) (US 242a, IPCAS C-904/1, PBI- 462), Chotard Lake near Vicksburg, Mississippi, USA. A longitu... MoreFigure 8. Histological section of Archigetes megacephalus n. sp. from Ictiobus cyprinellus (Valenciennes) (US 242a, IPCAS C-904/1, PBI- 462), Chotard Lake near Vicksburg, Mississippi, USA. A longitudinal section of body (total view); B longitudinal section of scolex; D longitudinal section of posterior part of body. Abbreviations: dlvf dorsolateral vitelline follicles, cs cirrus-sac, esv external seminal vesicle, ilm inner longitudinal muscles, ov ovary, povf postovarian vitelline follicles, te testes, ut uterus, vf vitelline follicles. |
Scanning Electron Micrograph
Figure 7. Scanning electron micrographs of Archigetes megacephalus n. sp. A, B from Ictiobus bubalus (Rafinesque) (US 257a and US 260b, IPCAS C-904/2); C from I. cyprinellus (Valenciennes, 1844) (... MoreFigure 7. Scanning electron micrographs of Archigetes megacephalus n. sp. A, B from Ictiobus bubalus (Rafinesque) (US 257a and US 260b, IPCAS C-904/2); C from I. cyprinellus (Valenciennes, 1844) (US 242a, IPCAS C-904/1, PBI-462); D from I. niger (Rafinesque) (US 244b, IPCAS C-904/3, PBI-417), Chotard Lake near Vicksburg, Mississippi, USA. A total view, B detail of scolex, C, E variability in scolex shape. |
Global Cestode Database
Figure 6. Line drawings of Archigetes megacephalus n. sp. from Ictiobus niger (Rafinesque), Chotard Lake near Vicksburg, Mississippi, USA (US 244b, IPCAS C-904/3, PBI-417). A total view (testes and vitelline follicles are not illustrated in the middle portion of the body), B anterior part with scolex, C posterior part.
Figure 8. Histological section of Archigetes megacephalus n. sp. from Ictiobus cyprinellus (Valenciennes) (US 242a, IPCAS C-904/1, PBI- 462), Chotard Lake near Vicksburg, Mississippi, USA. A longitudinal section of body (total view); B longitudinal section of scolex; D longitudinal section of posterior part of body. Abbreviations: dlvf dorsolateral vitelline follicles, cs cirrus-sac, esv external seminal vesicle, ilm inner longitudinal muscles, ov ovary, povf postovarian vitelline follicles, te testes, ut uterus, vf vitelline follicles.
Figure 7. Scanning electron micrographs of Archigetes megacephalus n. sp. A, B from Ictiobus bubalus (Rafinesque) (US 257a and US 260b, IPCAS C-904/2); C from I. cyprinellus (Valenciennes, 1844) (US 242a, IPCAS C-904/1, PBI-462); D from I. niger (Rafinesque) (US 244b, IPCAS C-904/3, PBI-417), Chotard Lake near Vicksburg, Mississippi, USA. A total view, B detail of scolex, C, E variability in scolex shape.
