Line Drawing 1

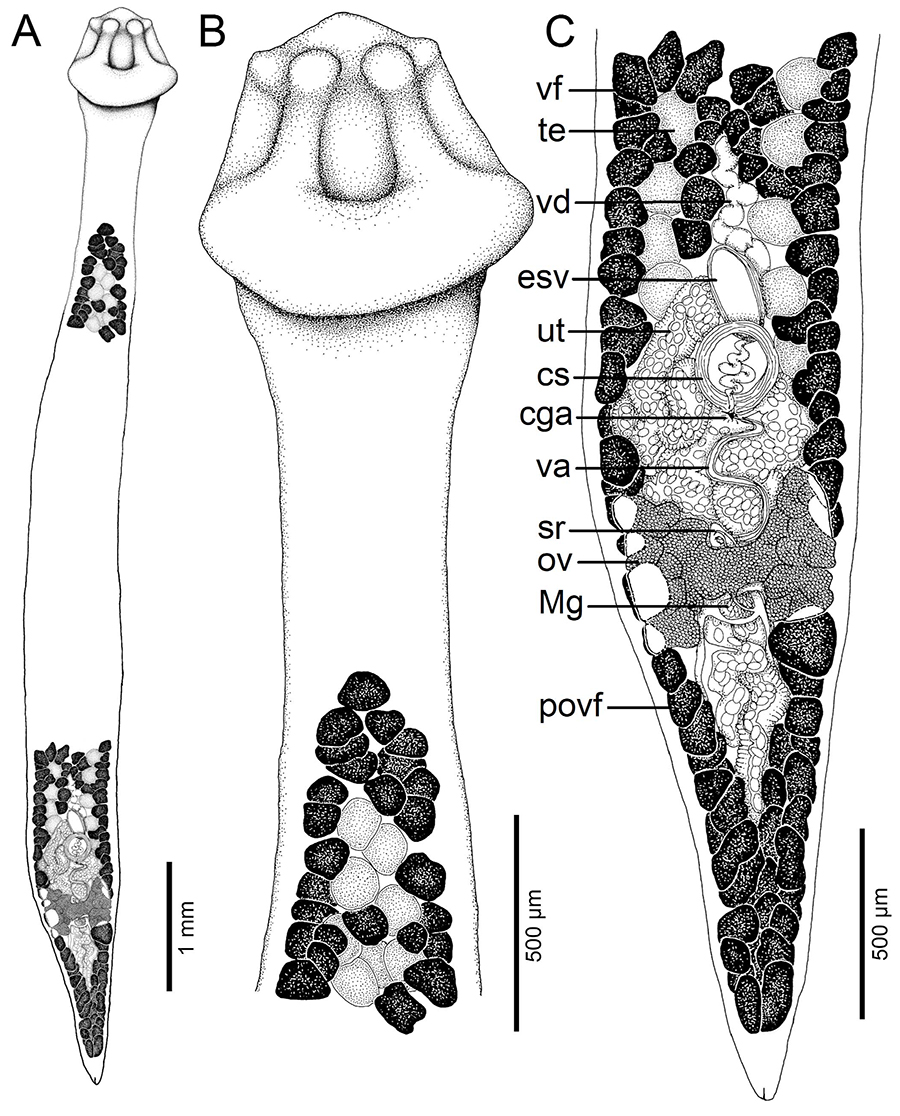

Figure 2. Line drawings of Archigetes loculotruncatus n. sp. from Ictiobus bubalus (Rafinesque), Chotard Lake near Vicksburg, Mississippi, USA (host field code US 260d, IPCAS C-903/1, PBI-464). A to... MoreFigure 2. Line drawings of Archigetes loculotruncatus n. sp. from Ictiobus bubalus (Rafinesque), Chotard Lake near Vicksburg, Mississippi, USA (host field code US 260d, IPCAS C-903/1, PBI-464). A total view (testes and vitelline follicles are not illustrated in the middle portion of the body), B anterior part with scolex, C posterior part. Abbreviations: cga common genital atrium, cs cirrus-sac, esv external seminal vesicle, Mg Mehlis gland, ov ovary, povf postovarian vitelline follicles, sr receptaculum seminis, te testes, ut uterus, va vagina, vd vas deferens, vf vitelline follicles. |
Line Drawing 2

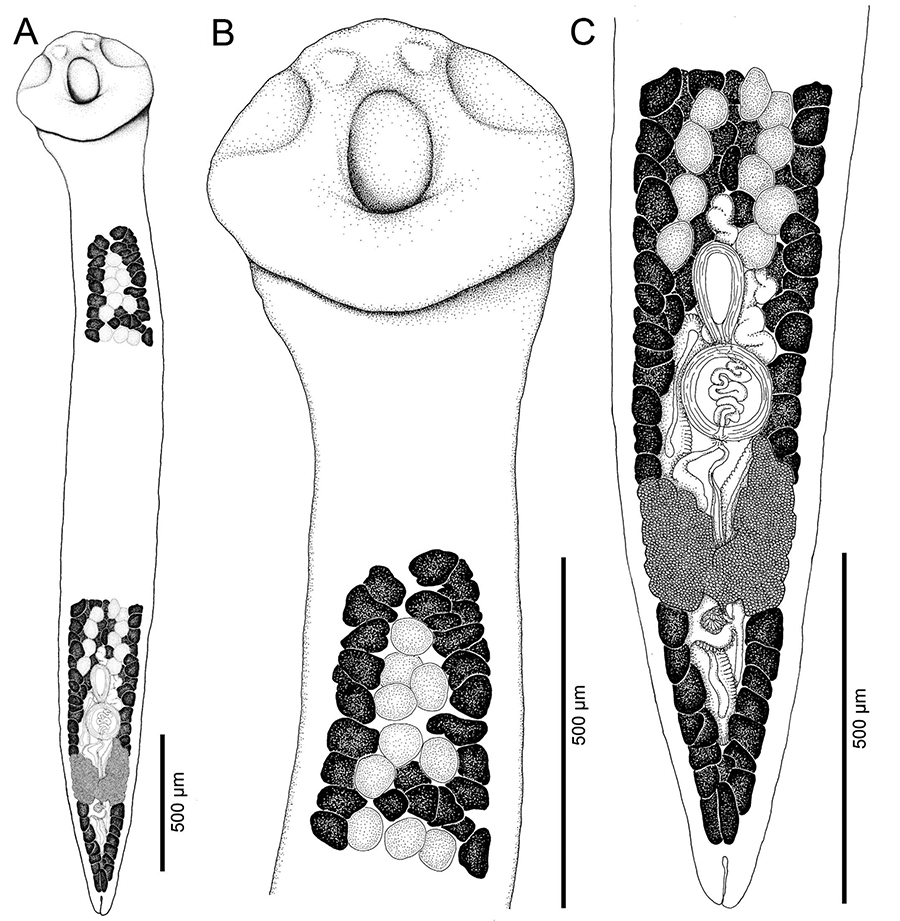

Figure 3. Line drawings of Archigetes loculotruncatus n. sp. from Carpiodes cyprinus (Lesueur), Chotard Lake near Vicksburg, Mississippi, USA (US 262b, IPCAS C-903/3). A total view (testes and vitel... MoreFigure 3. Line drawings of Archigetes loculotruncatus n. sp. from Carpiodes cyprinus (Lesueur), Chotard Lake near Vicksburg, Mississippi, USA (US 262b, IPCAS C-903/3). A total view (testes and vitelline follicles are not illustrated in the middle portion of the body), B anterior part with scolex, C posterior part. |
Photo Micrograph

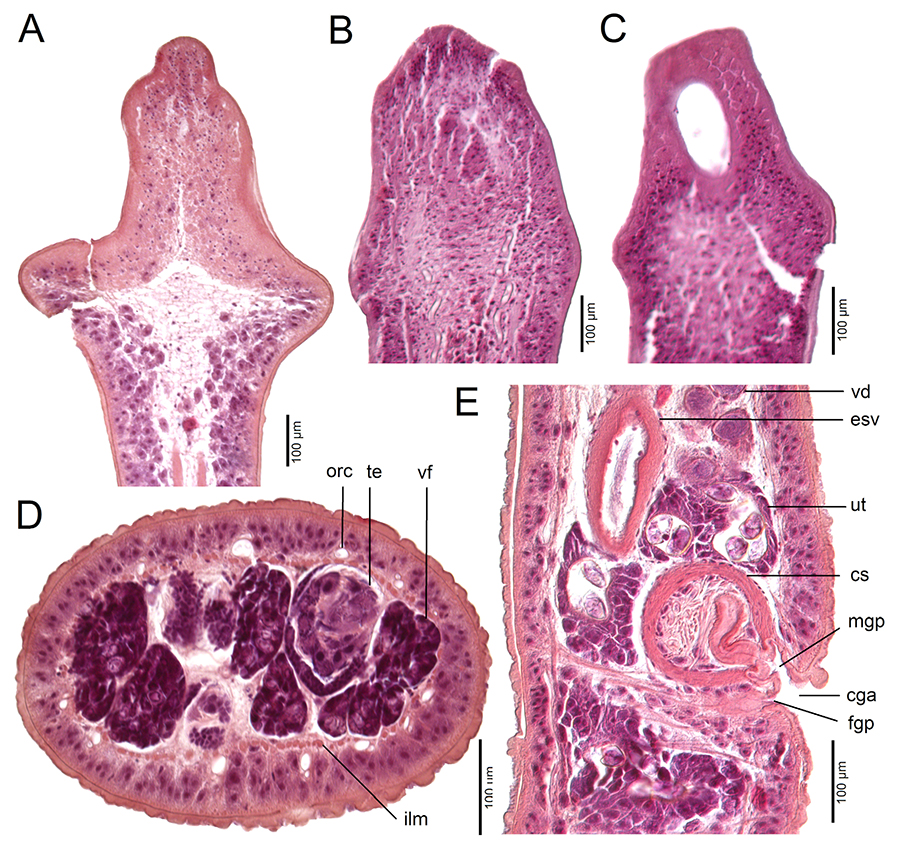

Figure 5. Histological section of Archigetes loculotruncatus n. sp. from Ictiobus niger (Rafinesque) (US 244b, IPCAS C-903/3), Chotard Lake near Vicksburg, Mississippi, USA. A sagittal section of sc... MoreFigure 5. Histological section of Archigetes loculotruncatus n. sp. from Ictiobus niger (Rafinesque) (US 244b, IPCAS C-903/3), Chotard Lake near Vicksburg, Mississippi, USA. A sagittal section of scolex; B, C longitudinal sections of scolex; D cross section of middle portion of body; E sagittal section of genital pores. Abbreviations: cga common genital atrium, cs cirrus-sac, esv external seminal vesicle, fgp female gonopore, ilm inner longitudinal muscles, mgp male gonopore, orc osmoregulatory canals, te testes, ut uterus, vd vas deferens, vf vitelline follicles. |
Scanning Electron Micrograph

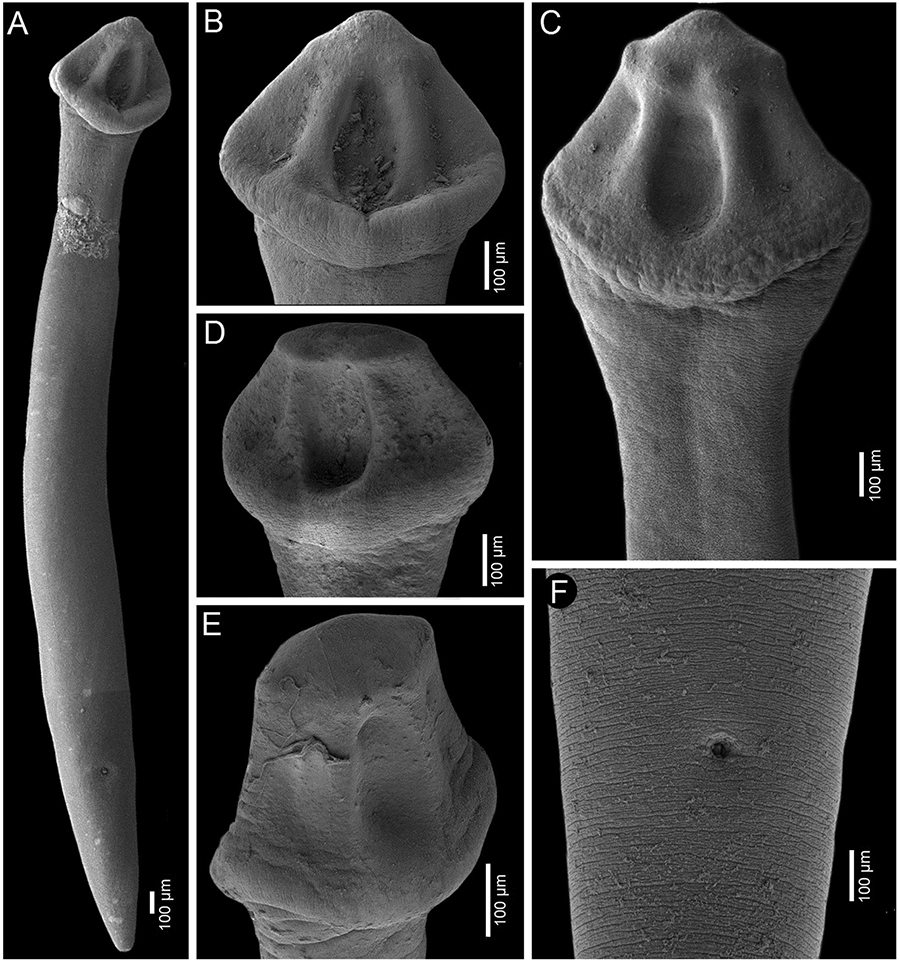

Figure 4. Scanning electron micrographs of Archigetes loculotruncatus n. sp. A, B, C, F from Ictiobus bubalus (Rafinesque) (US 257a and US 260d, IPCAS C-903/1, PBI-464); D from I. niger (Rafinesqu... MoreFigure 4. Scanning electron micrographs of Archigetes loculotruncatus n. sp. A, B, C, F from Ictiobus bubalus (Rafinesque) (US 257a and US 260d, IPCAS C-903/1, PBI-464); D from I. niger (Rafinesque, 1818) (US 244b, IPCAS C-903/2), Chotard Lake near Vicksburg, Mississippi, USA; E from I. niger (Rafinesque, 1818) (FR19_765, IPCAS C-903/2), Sunflower River in Indianola, Mississippi, USA. A total view, BE variability in scolex shape, F posterior part with common genital atrium. |
Global Cestode Database
Figure 2. Line drawings of Archigetes loculotruncatus n. sp. from Ictiobus bubalus (Rafinesque), Chotard Lake near Vicksburg, Mississippi, USA (host field code US 260d, IPCAS C-903/1, PBI-464). A total view (testes and vitelline follicles are not illustrated in the middle portion of the body), B anterior part with scolex, C posterior part. Abbreviations: cga common genital atrium, cs cirrus-sac, esv external seminal vesicle, Mg Mehlis gland, ov ovary, povf postovarian vitelline follicles, sr receptaculum seminis, te testes, ut uterus, va vagina, vd vas deferens, vf vitelline follicles.
Figure 3. Line drawings of Archigetes loculotruncatus n. sp. from Carpiodes cyprinus (Lesueur), Chotard Lake near Vicksburg, Mississippi, USA (US 262b, IPCAS C-903/3). A total view (testes and vitelline follicles are not illustrated in the middle portion of the body), B anterior part with scolex, C posterior part.
Figure 5. Histological section of Archigetes loculotruncatus n. sp. from Ictiobus niger (Rafinesque) (US 244b, IPCAS C-903/3), Chotard Lake near Vicksburg, Mississippi, USA. A sagittal section of scolex; B, C longitudinal sections of scolex; D cross section of middle portion of body; E sagittal section of genital pores. Abbreviations: cga common genital atrium, cs cirrus-sac, esv external seminal vesicle, fgp female gonopore, ilm inner longitudinal muscles, mgp male gonopore, orc osmoregulatory canals, te testes, ut uterus, vd vas deferens, vf vitelline follicles.
Figure 4. Scanning electron micrographs of Archigetes loculotruncatus n. sp. A, B, C, F from Ictiobus bubalus (Rafinesque) (US 257a and US 260d, IPCAS C-903/1, PBI-464); D from I. niger (Rafinesque, 1818) (US 244b, IPCAS C-903/2), Chotard Lake near Vicksburg, Mississippi, USA; E from I. niger (Rafinesque, 1818) (FR19_765, IPCAS C-903/2), Sunflower River in Indianola, Mississippi, USA. A total view, BE variability in scolex shape, F posterior part with common genital atrium.
