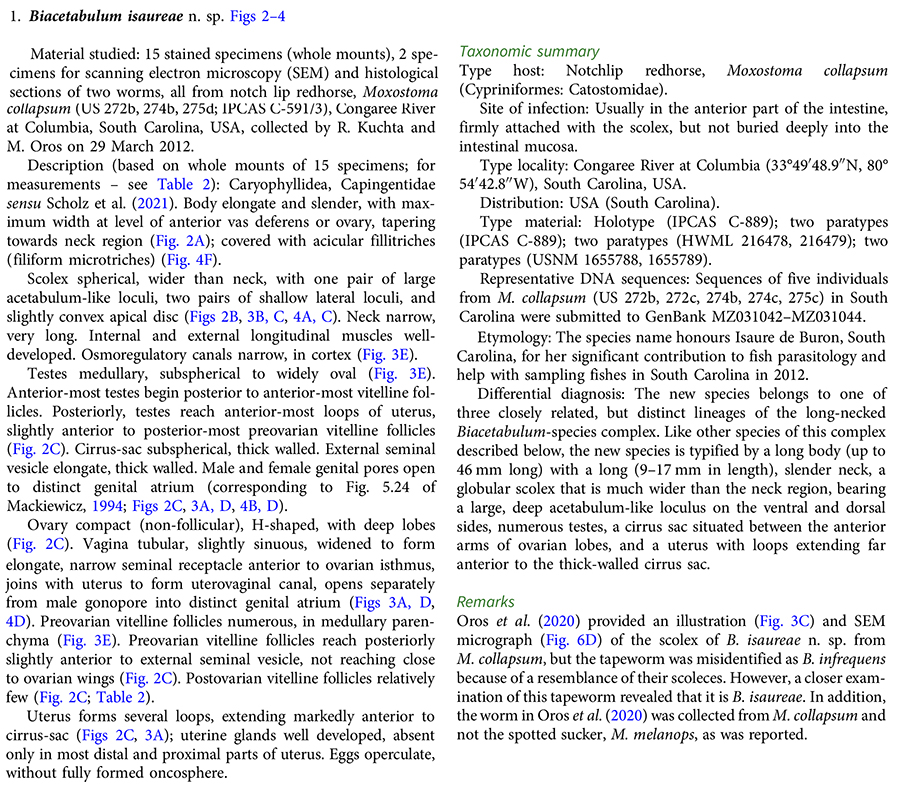

Line Drawing 1

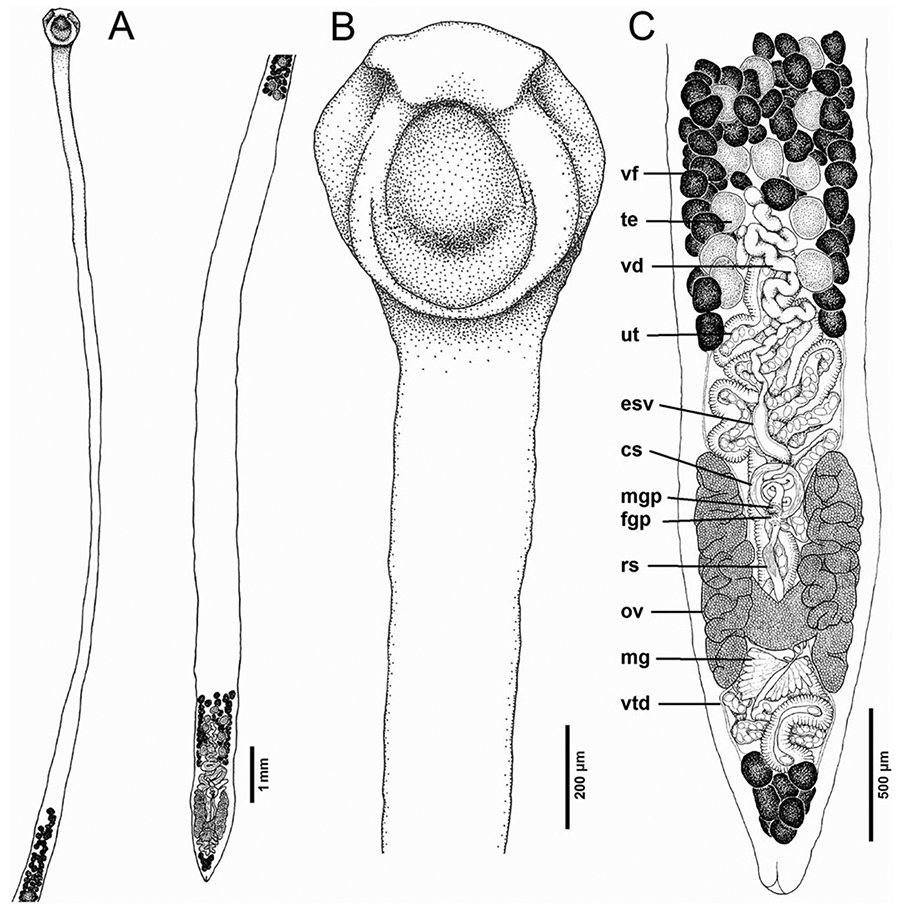

Fig. 2. Line drawings of Biacetabulum isaureae n. sp. from Moxostoma collapsum, South Carolina, USA (US 275d, IPCAS C-591/3). (A) Total view, (B) anterior part with scolex, and (C) posterior part, ven... MoreFig. 2. Line drawings of Biacetabulum isaureae n. sp. from Moxostoma collapsum, South Carolina, USA (US 275d, IPCAS C-591/3). (A) Total view, (B) anterior part with scolex, and (C) posterior part, ventral view. cs, cirrus sac; esv, external seminal vesicle; fgp, female genital pore; mg, Mehlis’ glands; mgp, male genital pore; ov, ovary; rs, seminal receptacle; te, testes; ut, uterus; vd, vas deferens; vf, vitelline follicles; vtd, vitelline duct. |
Line Drawing 2
|
Photo Micrograph

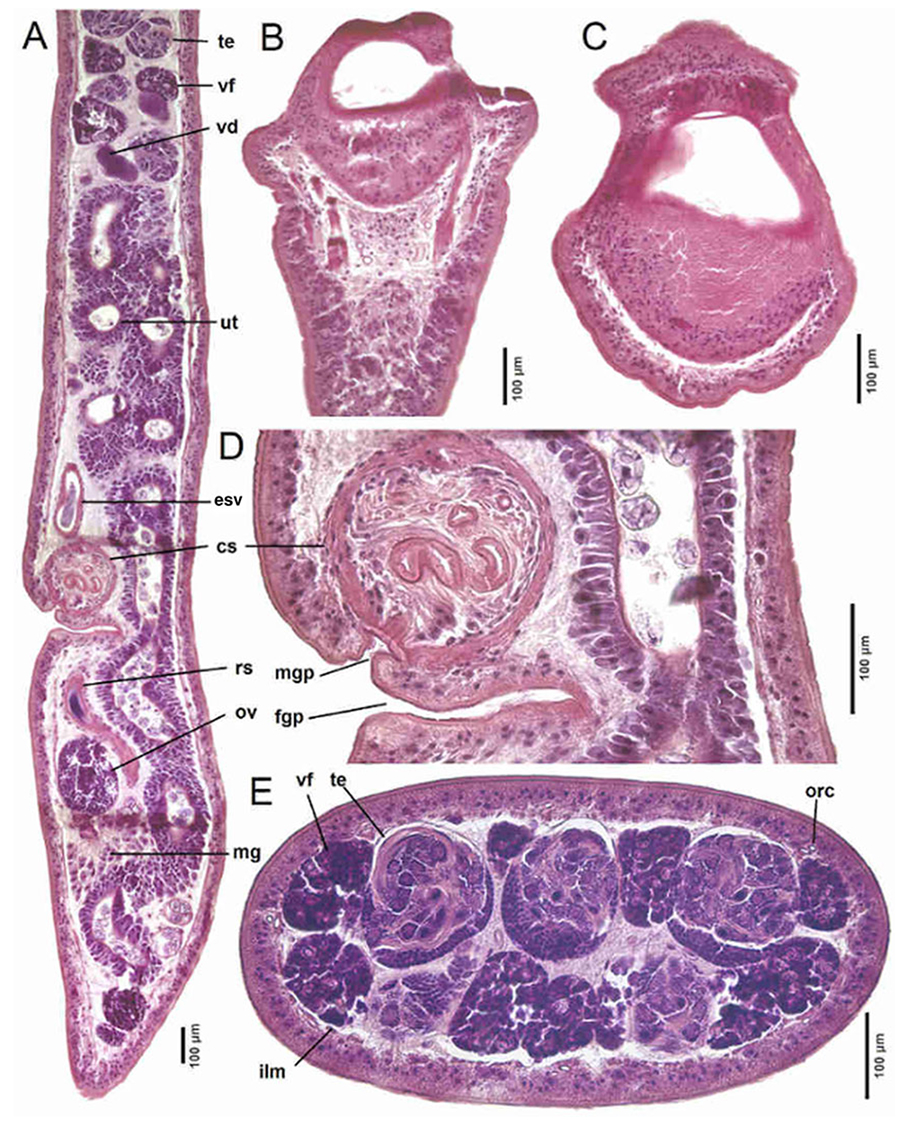

Fig. 3. Histological sections of Biacetabulum isaureae n. sp. from Moxostoma collapsum (US 275d), South Carolina, USA. (A) Sagittal section of the posterior part of body, (B, C) longitudinal sections ... MoreFig. 3. Histological sections of Biacetabulum isaureae n. sp. from Moxostoma collapsum (US 275d), South Carolina, USA. (A) Sagittal section of the posterior part of body, (B, C) longitudinal sections of scolex, and (D) sagittal section of genital pores; E, cross-section of middle portion of body. cs, cirrus-sac; esv, external seminal vesicle; fgp, female genital pore; ilm, internal longitudinal muscles; mg, Mehlis’ glands; mgp, male genital pore; orc, osmoregulatory canals; ov, ovary; rs, seminal receptacle; te, testes; ut, uterus; vd, vas deferens; vf, vitelline follicles. |
Scanning Electron Micrograph

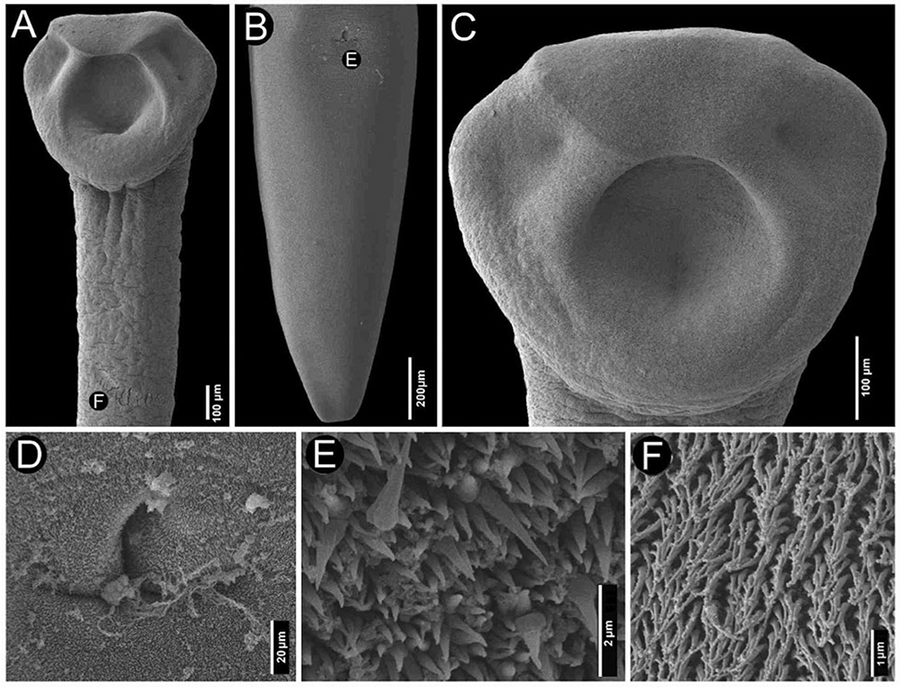

Fig. 4. Scanning electron micrographs of Biacetabulum isaureae n. sp. from Moxostoma collapsum, South Carolina, USA (US 272b, US 275d, IPCAS C-591/3). (A) Anterior part with scolex, (B) posterior part... MoreFig. 4. Scanning electron micrographs of Biacetabulum isaureae n. sp. from Moxostoma collapsum, South Carolina, USA (US 272b, US 275d, IPCAS C-591/3). (A) Anterior part with scolex, (B) posterior part with genital pores, (C) scolex, (D) detail of common genital atrium, (E) microtriches surrounding the common genital atrium, and (F) microtriches on the body. Small letters in A and B indicate position of E and F. |
Global Cestode Database
Fig. 2. Line drawings of Biacetabulum isaureae n. sp. from Moxostoma collapsum, South Carolina, USA (US 275d, IPCAS C-591/3). (A) Total view, (B) anterior part with scolex, and (C) posterior part, ventral view. cs, cirrus sac; esv, external seminal vesicle; fgp, female genital pore; mg, Mehlis’ glands; mgp, male genital pore; ov, ovary; rs, seminal receptacle; te, testes; ut, uterus; vd, vas deferens; vf, vitelline follicles; vtd, vitelline duct.
Fig. 3. Histological sections of Biacetabulum isaureae n. sp. from Moxostoma collapsum (US 275d), South Carolina, USA. (A) Sagittal section of the posterior part of body, (B, C) longitudinal sections of scolex, and (D) sagittal section of genital pores; E, cross-section of middle portion of body. cs, cirrus-sac; esv, external seminal vesicle; fgp, female genital pore; ilm, internal longitudinal muscles; mg, Mehlis’ glands; mgp, male genital pore; orc, osmoregulatory canals; ov, ovary; rs, seminal receptacle; te, testes; ut, uterus; vd, vas deferens; vf, vitelline follicles.
Fig. 4. Scanning electron micrographs of Biacetabulum isaureae n. sp. from Moxostoma collapsum, South Carolina, USA (US 272b, US 275d, IPCAS C-591/3). (A) Anterior part with scolex, (B) posterior part with genital pores, (C) scolex, (D) detail of common genital atrium, (E) microtriches surrounding the common genital atrium, and (F) microtriches on the body. Small letters in A and B indicate position of E and F.
