Line Drawing 1

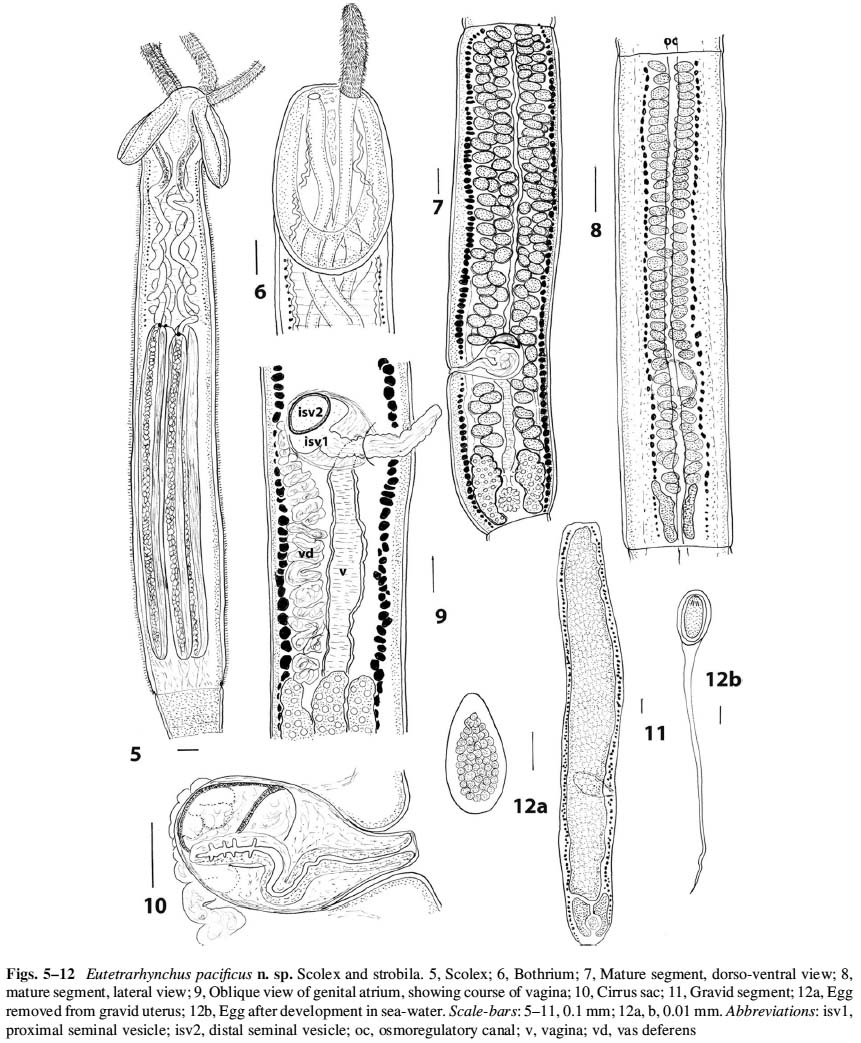

Figs. 5–12 Eutetrarhynchus pacificus n. sp. Scolex and strobila. 5, Scolex; 6, Bothrium; 7, Mature segment, dorso-ventral view; 8, mature segment, lateral view; 9, Oblique view of genital atrium, show... MoreFigs. 5–12 Eutetrarhynchus pacificus n. sp. Scolex and strobila. 5, Scolex; 6, Bothrium; 7, Mature segment, dorso-ventral view; 8, mature segment, lateral view; 9, Oblique view of genital atrium, showing course of vagina; 10, Cirrus sac; 11, Gravid segment; 12a, Egg removed from gravid uterus; 12b, Egg after development in sea-water. Scale-bars: 5–11, 0.1 mm; 12a, b, 0.01 mm. Abbreviations: isv1, proximal seminal vesicle; isv2, distal seminal vesicle; oc, osmoregulatory canal; v, vagina; vd, vas deferens. |
Line Drawing 2

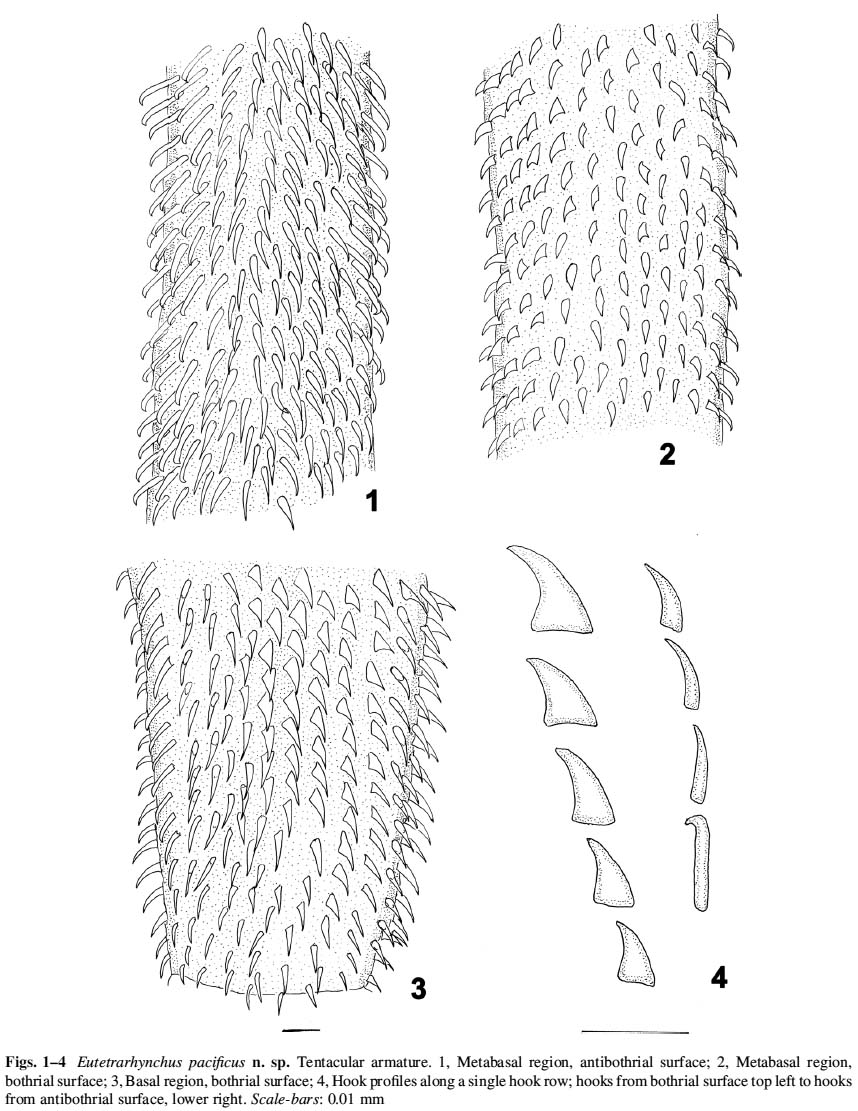

Figs. 1–4 Eutetrarhynchus pacificus n. sp. Tentacular armature. 1, Metabasal region, antibothrial surface; 2, Metabasal region, bothrial surface; 3, Basal region, bothrial surface; 4, Hook profiles al... MoreFigs. 1–4 Eutetrarhynchus pacificus n. sp. Tentacular armature. 1, Metabasal region, antibothrial surface; 2, Metabasal region, bothrial surface; 3, Basal region, bothrial surface; 4, Hook profiles along a single hook row; hooks from bothrial surface top left to hooks from antibothrial surface, lower right. Scale-bars: 0.01 mm. |
Photo Micrograph
|
Scanning Electron Micrograph

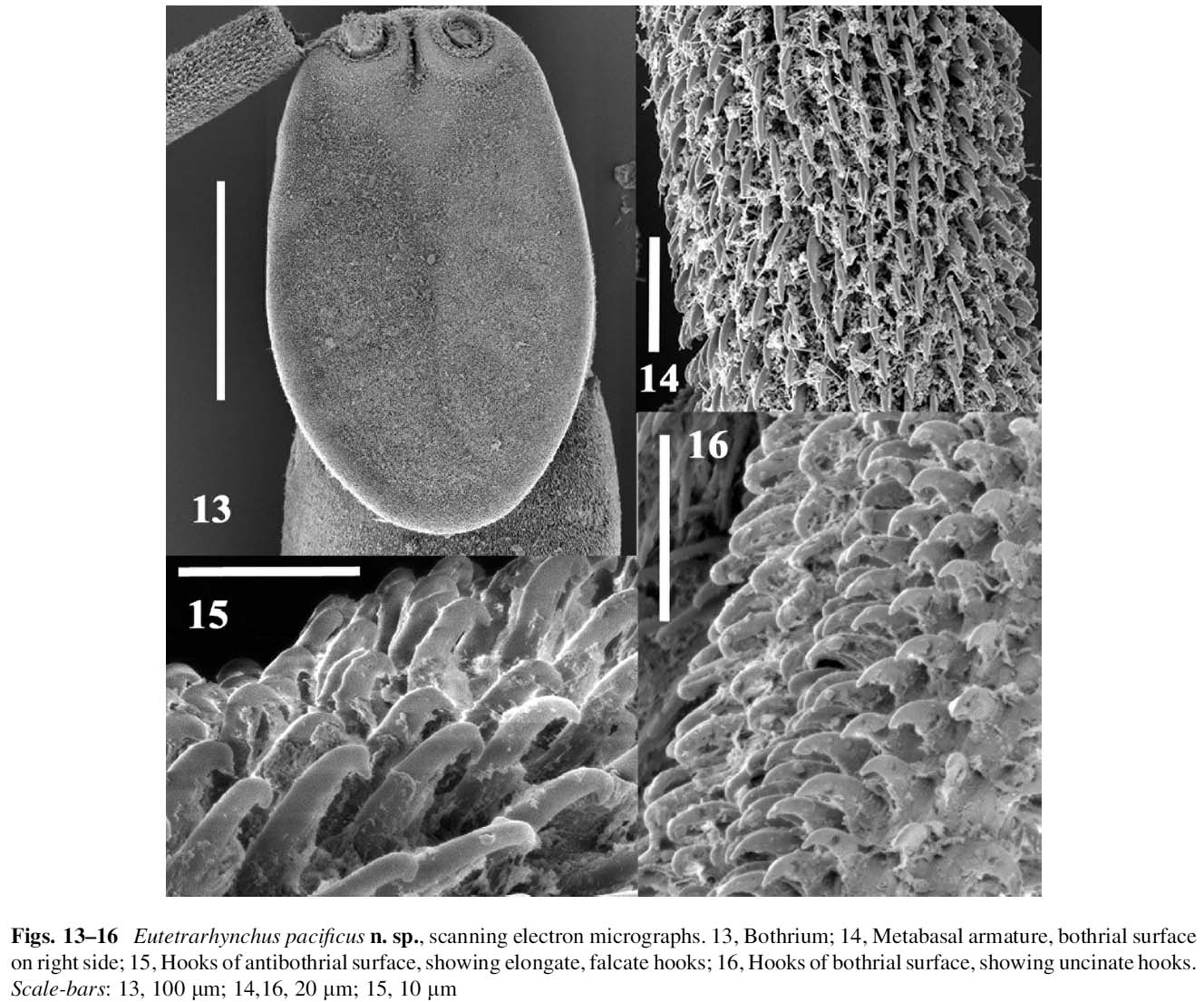

Figs. 13–16 Eutetrarhynchus pacificus n. sp., scanning electron micrographs. 13, Bothrium; 14, Metabasal armature, bothrial surface on right side; 15, Hooks of antibothrial surface, showing elongate, ... MoreFigs. 13–16 Eutetrarhynchus pacificus n. sp., scanning electron micrographs. 13, Bothrium; 14, Metabasal armature, bothrial surface on right side; 15, Hooks of antibothrial surface, showing elongate, falcate hooks; 16, Hooks of bothrial surface, showing uncinate hooks. Scale-bars: 13, 100 lm; 14,16, 20 lm; 15, 10 lm |

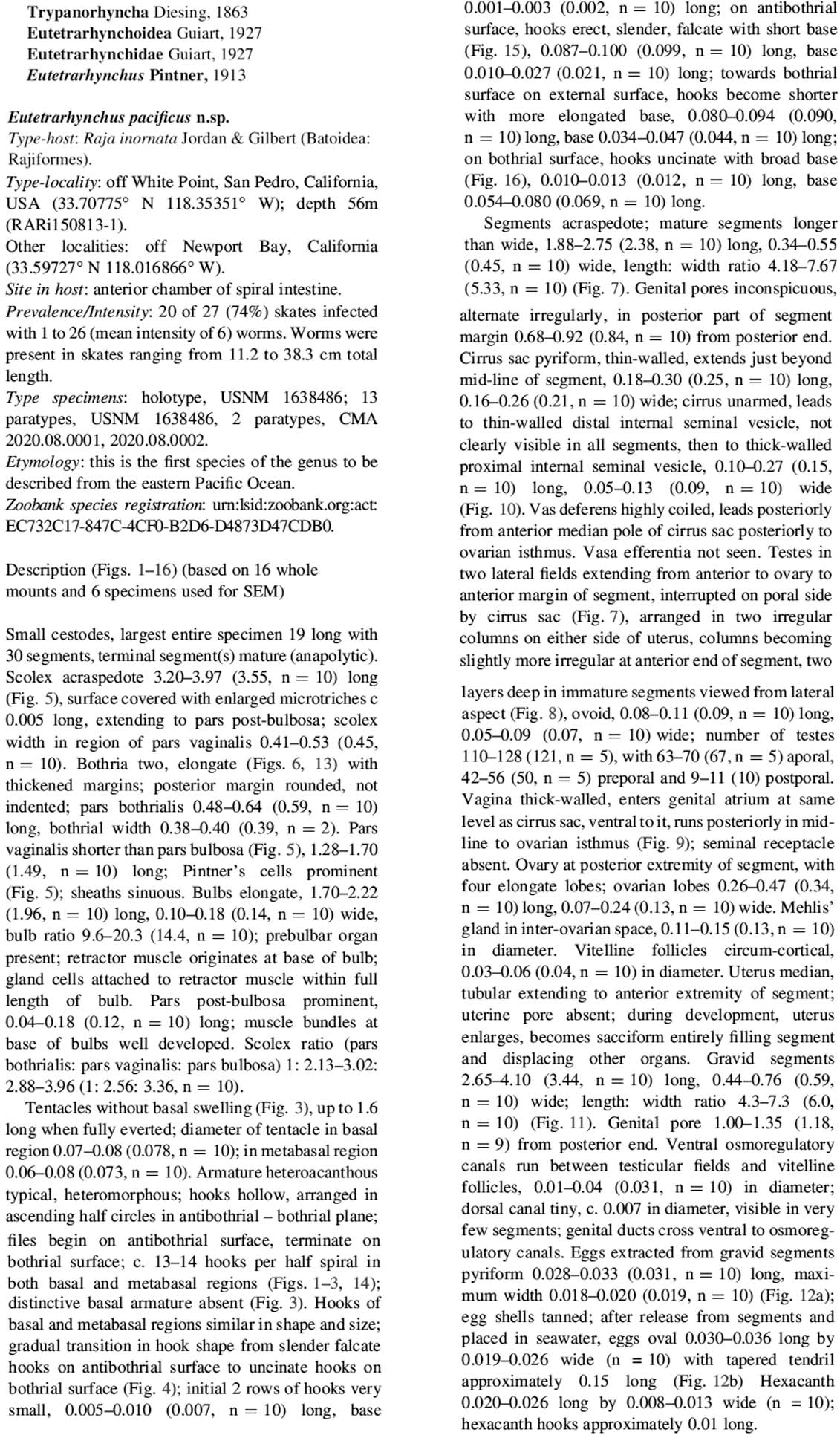

Global Cestode Database
Figs. 5–12 Eutetrarhynchus pacificus n. sp. Scolex and strobila. 5, Scolex; 6, Bothrium; 7, Mature segment, dorso-ventral view; 8, mature segment, lateral view; 9, Oblique view of genital atrium, showing course of vagina; 10, Cirrus sac; 11, Gravid segment; 12a, Egg removed from gravid uterus; 12b, Egg after development in sea-water. Scale-bars: 5–11, 0.1 mm; 12a, b, 0.01 mm. Abbreviations: isv1, proximal seminal vesicle; isv2, distal seminal vesicle; oc, osmoregulatory canal; v, vagina; vd, vas deferens.
Figs. 1–4 Eutetrarhynchus pacificus n. sp. Tentacular armature. 1, Metabasal region, antibothrial surface; 2, Metabasal region, bothrial surface; 3, Basal region, bothrial surface; 4, Hook profiles along a single hook row; hooks from bothrial surface top left to hooks from antibothrial surface, lower right. Scale-bars: 0.01 mm.
Figs. 13–16 Eutetrarhynchus pacificus n. sp., scanning electron micrographs. 13, Bothrium; 14, Metabasal armature, bothrial surface on right side; 15, Hooks of antibothrial surface, showing elongate, falcate hooks; 16, Hooks of bothrial surface, showing uncinate hooks. Scale-bars: 13, 100 lm; 14,16, 20 lm; 15, 10 lm
