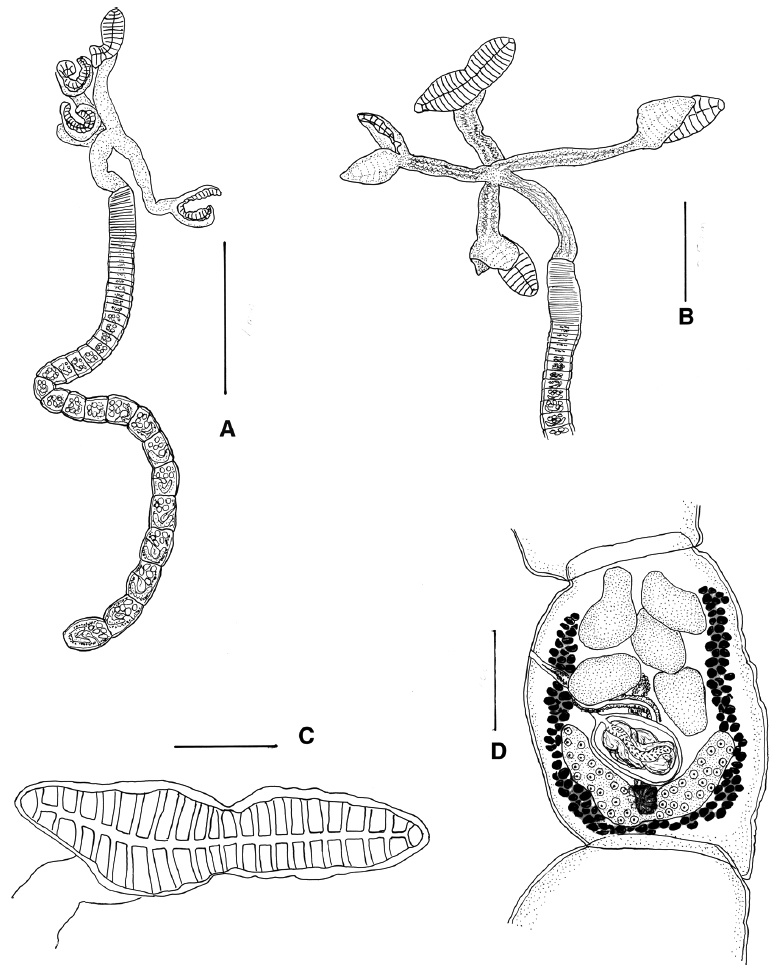

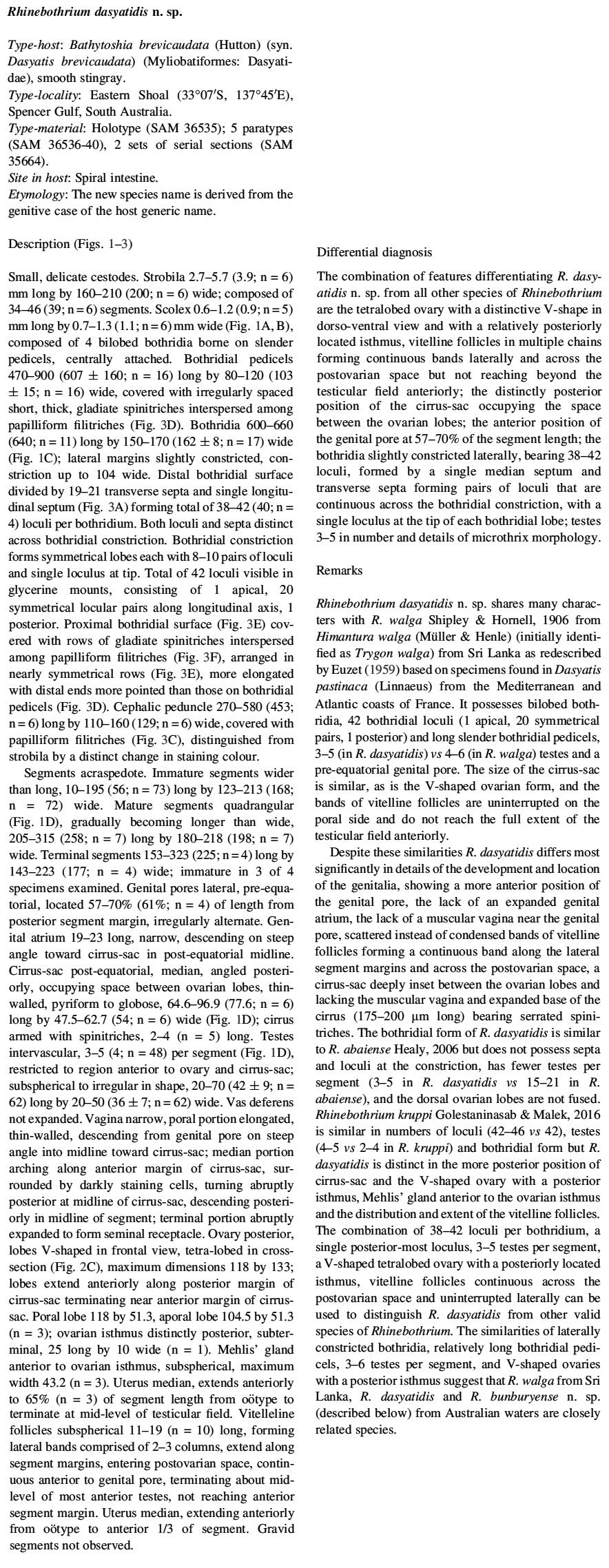

Fig. 1 Rhinebothrium dasyatidis n. sp. from Bathytoshia brevicaudata. A, Entire cestode; B, Scolex; C, Bothridial locular pattern in
glycerine mount; D, Mature segment. Scale-bars: A, 1 mm; B, 500 µm... MoreFig. 1 Rhinebothrium dasyatidis n. sp. from Bathytoshia brevicaudata. A, Entire cestode; B, Scolex; C, Bothridial locular pattern in
glycerine mount; D, Mature segment. Scale-bars: A, 1 mm; B, 500 µm; C, 200 µm; D, 100 µm. |
Line Drawing 2

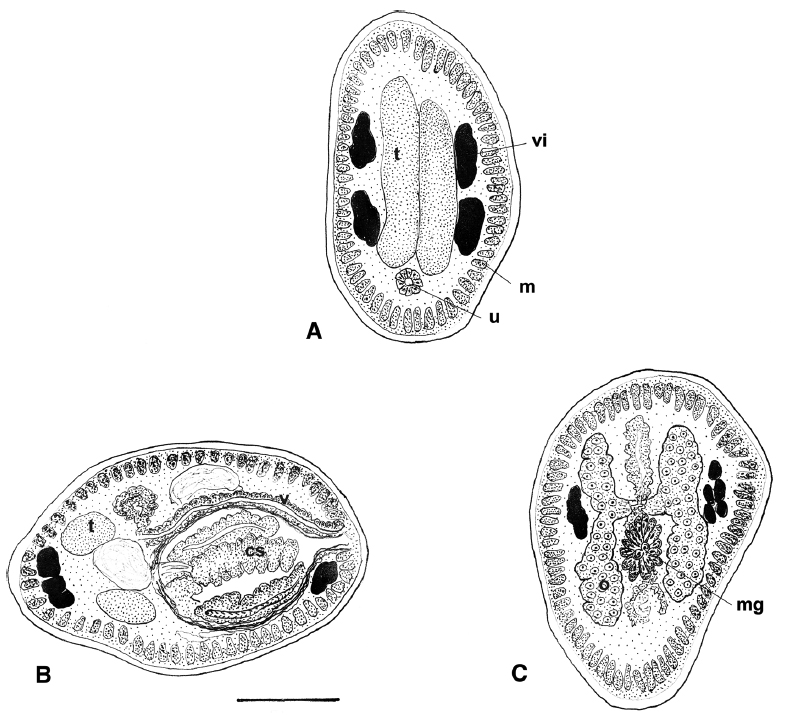

Fig. 2 Rhinebothrium dasyatidis n. sp. from Bathytoshia brevicaudata. Transverse histological sections through mature segments. A,
Section through preporal region of segment showing testes and vitell... MoreFig. 2 Rhinebothrium dasyatidis n. sp. from Bathytoshia brevicaudata. Transverse histological sections through mature segments. A,
Section through preporal region of segment showing testes and vitelline follicles; B, Section through cirrus-sac; C, Section though
ovarian isthmus. Scale-bar: 50 µm. Abbreviations: cs, cirrus-sac; m, muscle bundle; mg, Mehlis’ gland; o, ovary; t, testis; u, uterus; v,
vagina; vi, vitelline follicle. |
Photo Micrograph
|
Scanning Electron Micrograph

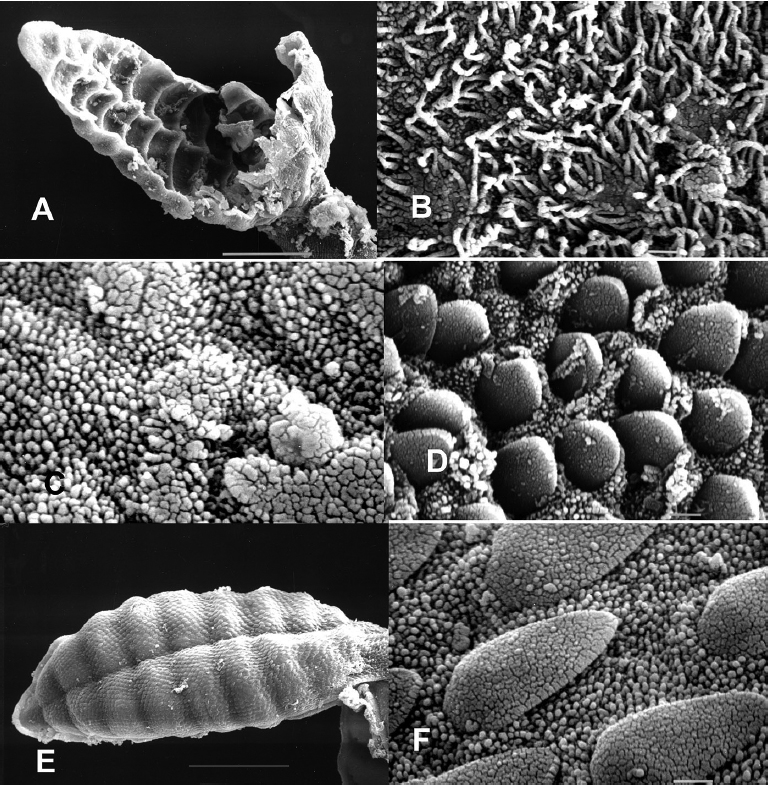

Fig. 3 Rhinebothrium dasyatidis n. sp. from Bathytoshia brevicaudata. Scanning electron micrographs. A, Distal surface of
bothridium; B, Filiform microtriches on distal surface of bothridium; C, Micr... MoreFig. 3 Rhinebothrium dasyatidis n. sp. from Bathytoshia brevicaudata. Scanning electron micrographs. A, Distal surface of
bothridium; B, Filiform microtriches on distal surface of bothridium; C, Microtriches on cephalic peduncle; D, Microtriches of pedicel
with irregularly spaced short, thick, gladiate spinitriches interspersed among papilliform filitriches; E, Proximal surface of bothridium;
F, Blade-like spiniform microtriches on proximal surface of bothridium. Scale-bars: A, E, 100 µm; B–D, F, 1 µm. |
