Line Drawing 1

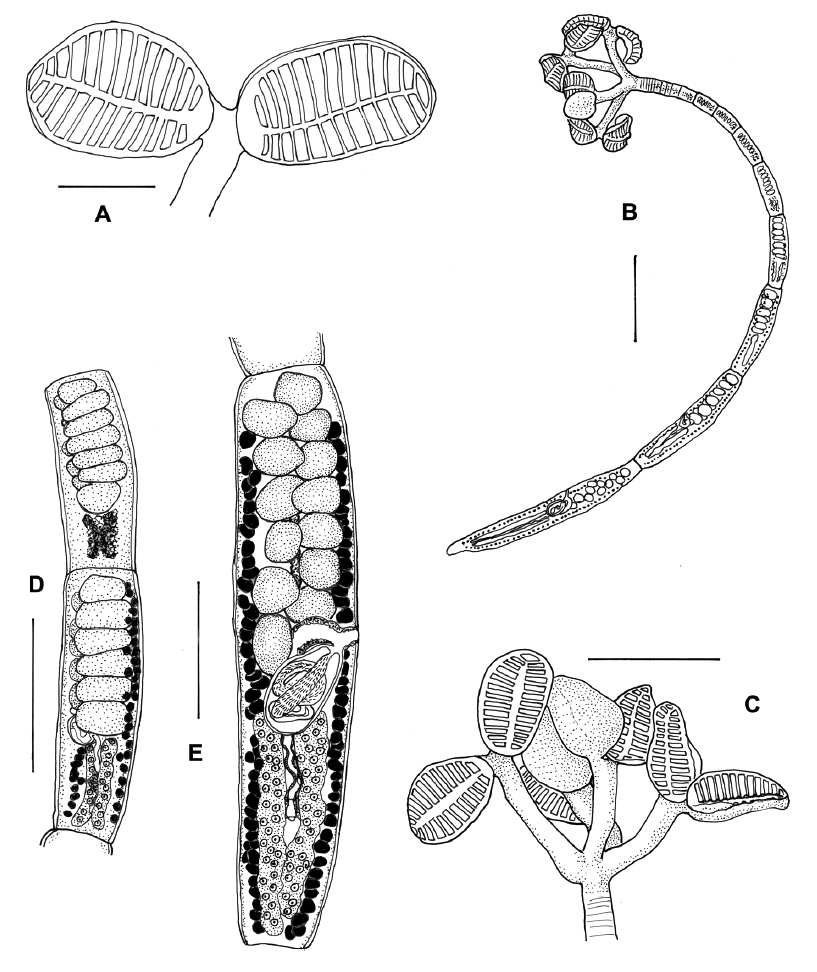

Fig. 1 Ruptobothrium louiseuzeti n. g., n. sp. from Himantura australis Last, Naylor & Manjaji-Matsumoto (Dasyatidae). A, Bothridia; B, Entire cestode; C, Scolex; D, Immature segments; E, Mature segme... MoreFig. 1 Ruptobothrium louiseuzeti n. g., n. sp. from Himantura australis Last, Naylor & Manjaji-Matsumoto (Dasyatidae). A, Bothridia; B, Entire cestode; C, Scolex; D, Immature segments; E, Mature segment. Scale-bars: B, C, 500 µm; A, D, E, 200 µm. |
Line Drawing 2

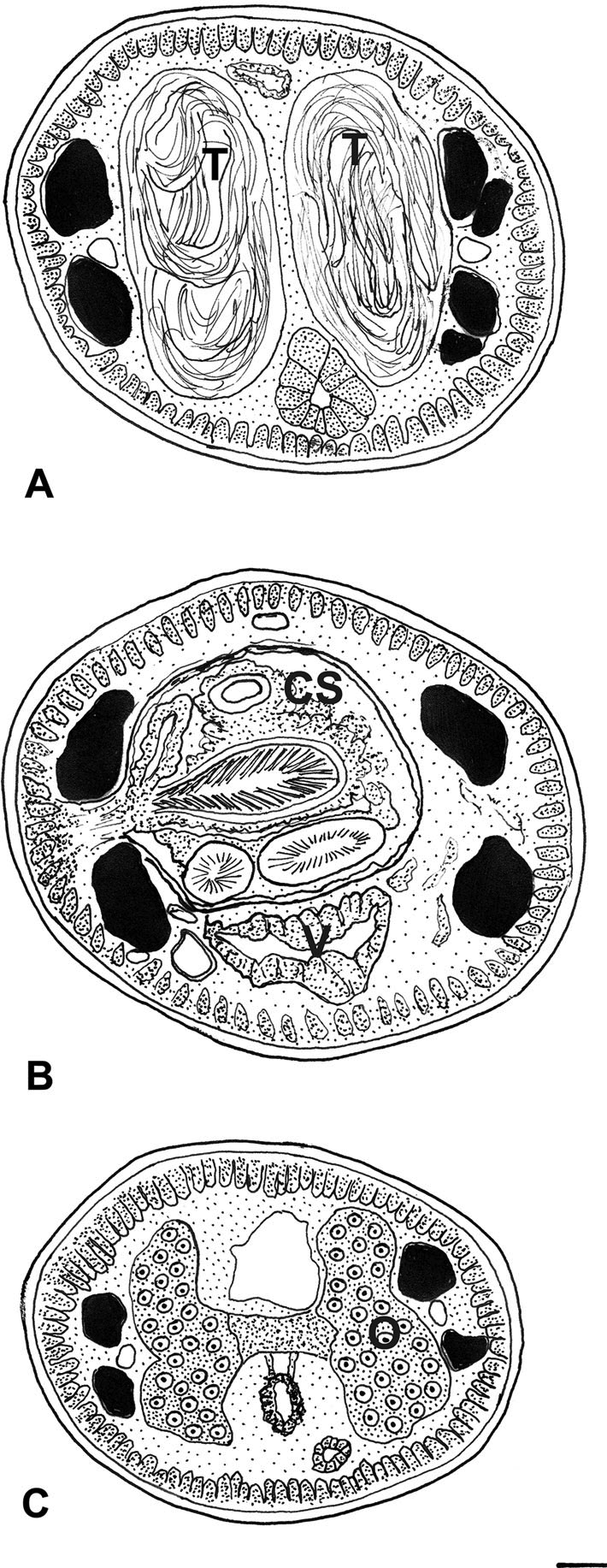

Fig. 2 Ruptobothrium louiseuzeti n. g., n. sp. from Himantura
australis Last, Naylor & Manjaji-Matsumoto (Dasyatidae).
Transverse histological sections of mature segments. A,
Section through anteri... MoreFig. 2 Ruptobothrium louiseuzeti n. g., n. sp. from Himantura
australis Last, Naylor & Manjaji-Matsumoto (Dasyatidae).
Transverse histological sections of mature segments. A,
Section through anterior region of segments showing testes
and vitelline follicles; B, Section through cirrus-sac and
terminal vagina; C, Section through ovarian isthmus. Scale-bar:
50 µm. Abbreviations: CS, cirrus-sac; O, ovary; T, testis; V,
vagina. |
Photo Micrograph
|
Scanning Electron Micrograph

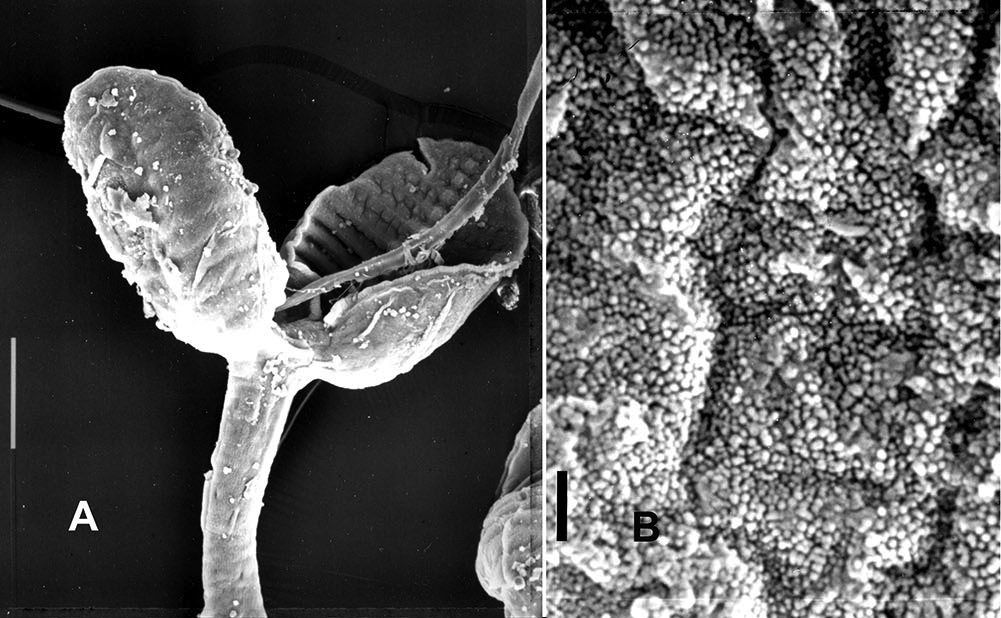

Fig. 9 Scanning electron micrographs. A, B, Ruptobothrium louiseuzeti n. g., n. sp. from Himantura australis Last, Naylor & Manjaji-
Matsumoto (Dasyatidae). A, Bothridium; B, Filiform microtriches on... MoreFig. 9 Scanning electron micrographs. A, B, Ruptobothrium louiseuzeti n. g., n. sp. from Himantura australis Last, Naylor & Manjaji-
Matsumoto (Dasyatidae). A, Bothridium; B, Filiform microtriches on bothridial surface.
Scale-bars: A, 100 µm; B, 1 µm. |
Global Cestode Database
Fig. 1 Ruptobothrium louiseuzeti n. g., n. sp. from Himantura australis Last, Naylor & Manjaji-Matsumoto (Dasyatidae). A, Bothridia; B, Entire cestode; C, Scolex; D, Immature segments; E, Mature segment. Scale-bars: B, C, 500 µm; A, D, E, 200 µm.
Fig. 2 Ruptobothrium louiseuzeti n. g., n. sp. from Himantura
australis Last, Naylor & Manjaji-Matsumoto (Dasyatidae).
Transverse histological sections of mature segments. A,
Section through anterior region of segments showing testes
and vitelline follicles; B, Section through cirrus-sac and
terminal vagina; C, Section through ovarian isthmus. Scale-bar:
50 µm. Abbreviations: CS, cirrus-sac; O, ovary; T, testis; V,
vagina.
Fig. 9 Scanning electron micrographs. A, B, Ruptobothrium louiseuzeti n. g., n. sp. from Himantura australis Last, Naylor & Manjaji-
Matsumoto (Dasyatidae). A, Bothridium; B, Filiform microtriches on bothridial surface.
Scale-bars: A, 100 µm; B, 1 µm.
