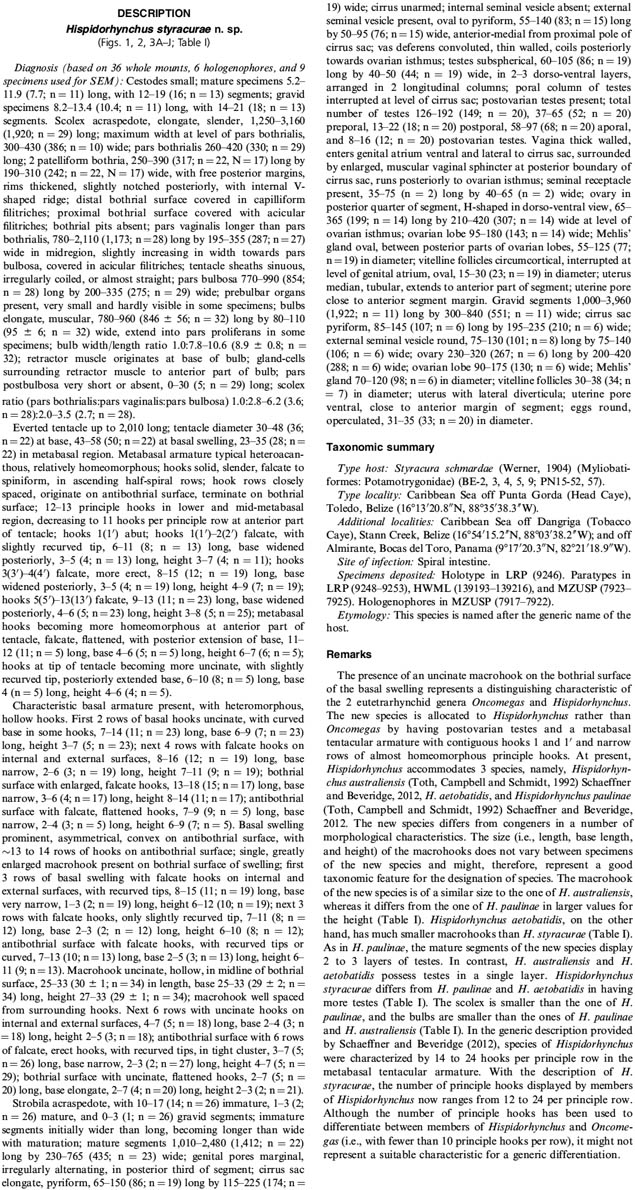

Line Drawing 1

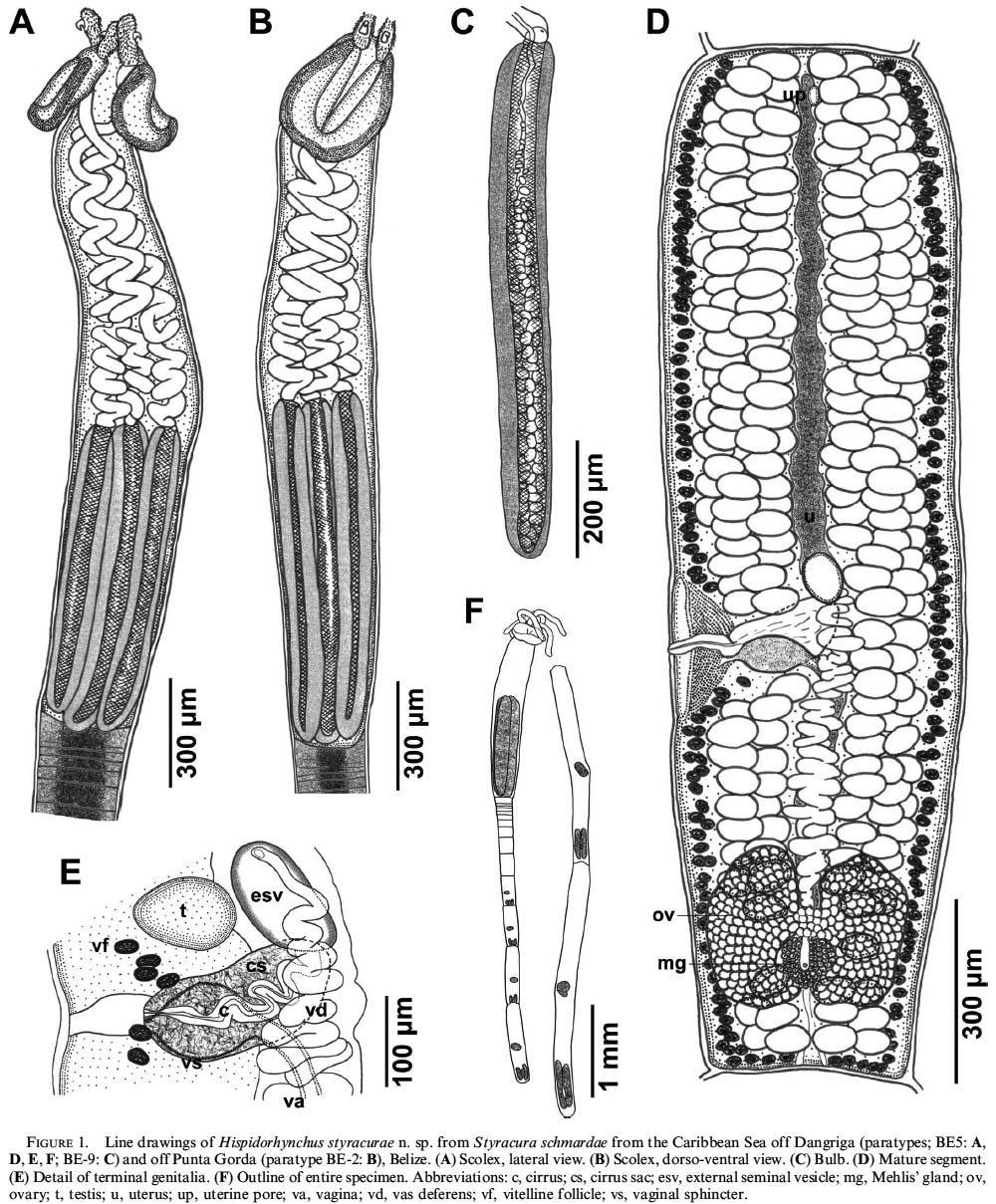

Line drawings of Hispidorhynchus styracurae n. sp. from Styracura schmardae from the Caribbean Sea off Dangriga (paratypes; BE5: A, D, E, F; BE-9: C) and off Punta Gorda (paratype BE-2: B), Belize. (A... MoreLine drawings of Hispidorhynchus styracurae n. sp. from Styracura schmardae from the Caribbean Sea off Dangriga (paratypes; BE5: A, D, E, F; BE-9: C) and off Punta Gorda (paratype BE-2: B), Belize. (A) Scolex, lateral view. (B) Scolex, dorso-ventral view. (C) Bulb. (D)Mature segment. (E) Detail of terminal genitalia. (F) Outline of entire specimen. Abbreviations: c, cirrus; cs, cirrus sac; esv, external seminal vesicle; mg, Mehlis’ gland; ov, ovary; t, testis; u, uterus; up, uterine pore; va, vagina; vd, vas deferens; vf, vitelline follicle; vs, vaginal sphincter. |
Line Drawing 2

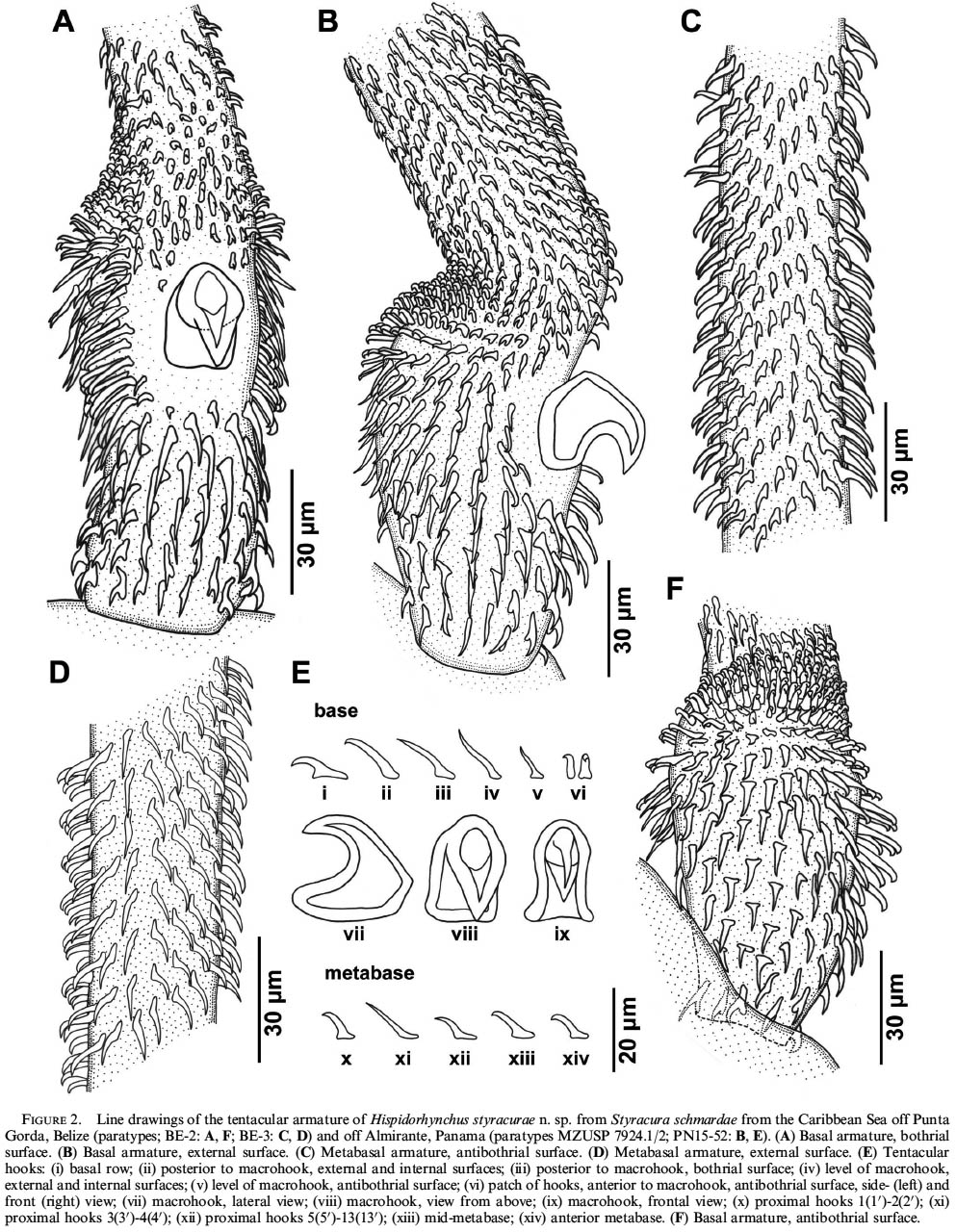

Line drawings of the tentacular armature of Hispidorhynchus styracurae n. sp. from Styracura schmardae from the Caribbean Sea off Punta Gorda, Belize (paratypes; BE-2: A, F; BE-3: C, D) and off Almira... MoreLine drawings of the tentacular armature of Hispidorhynchus styracurae n. sp. from Styracura schmardae from the Caribbean Sea off Punta Gorda, Belize (paratypes; BE-2: A, F; BE-3: C, D) and off Almirante, Panama (paratypes MZUSP 7924.1/2; PN15-52: B, E). (A) Basal armature, bothrial surface. (B) Basal armature, external surface. (C) Metabasal armature, antibothrial surface. (D) Metabasal armature, external surface. (E) Tentacular hooks: (i) basal row; (ii) posterior to macrohook, external and internal surfaces; (iii) posterior to macrohook, bothrial surface; (iv) level of macrohook, external and internal surfaces; (v) level of macrohook, antibothrial surface; (vi) patch of hooks, anterior to macrohook, antibothrial surface, side- (left) and front (right) view; (vii) macrohook, lateral view; (viii) macrohook, view from above; (ix) macrohook, frontal view; (x) proximal hooks 1(10)-2(20); (xi) proximal hooks 3(30)-4(40); (xii) proximal hooks 5(50)-13(130); (xiii) mid-metabase; (xiv) anterior metabase. (F) Basal armature, antibothrial surface. |
Photo Micrograph
|
Scanning Electron Micrograph

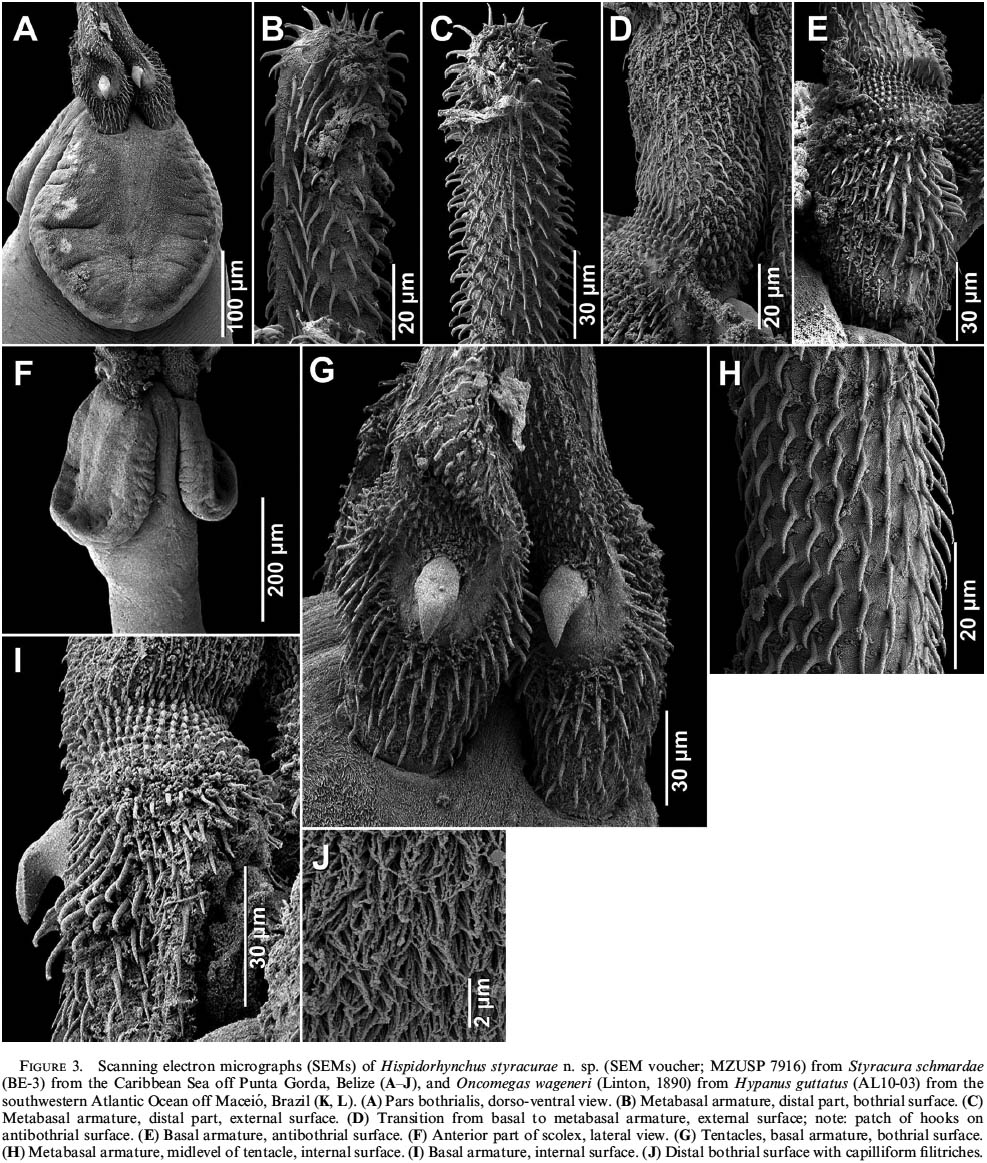

FIGURE 3. Scanning electron micrographs (SEMs) of Hispidorhynchus styracurae n. sp. (SEM voucher; MZUSP 7916) from Styracura schmardae (BE-3) from the Caribbean Sea off Punta Gorda, Belize (A–J) (A) P... MoreFIGURE 3. Scanning electron micrographs (SEMs) of Hispidorhynchus styracurae n. sp. (SEM voucher; MZUSP 7916) from Styracura schmardae (BE-3) from the Caribbean Sea off Punta Gorda, Belize (A–J) (A) Pars bothrialis, dorso-ventral view. (B) Metabasal armature, distal part, bothrial surface. (C) Metabasal armature, distal part, external surface. (D) Transition from basal to metabasal armature, external surface; note: patch of hooks on antibothrial surface. (E) Basal armature, antibothrial surface. (F) Anterior part of scolex, lateral view. (G) Tentacles, basal armature, bothrial surface. (H) Metabasal armature, midlevel of tentacle, internal surface. (I) Basal armature, internal surface. (J) Distal bothrial surface with capilliform filitriches. |
Global Cestode Database
Line drawings of Hispidorhynchus styracurae n. sp. from Styracura schmardae from the Caribbean Sea off Dangriga (paratypes; BE5: A, D, E, F; BE-9: C) and off Punta Gorda (paratype BE-2: B), Belize. (A) Scolex, lateral view. (B) Scolex, dorso-ventral view. (C) Bulb. (D)Mature segment. (E) Detail of terminal genitalia. (F) Outline of entire specimen. Abbreviations: c, cirrus; cs, cirrus sac; esv, external seminal vesicle; mg, Mehlis’ gland; ov, ovary; t, testis; u, uterus; up, uterine pore; va, vagina; vd, vas deferens; vf, vitelline follicle; vs, vaginal sphincter.
Line drawings of the tentacular armature of Hispidorhynchus styracurae n. sp. from Styracura schmardae from the Caribbean Sea off Punta Gorda, Belize (paratypes; BE-2: A, F; BE-3: C, D) and off Almirante, Panama (paratypes MZUSP 7924.1/2; PN15-52: B, E). (A) Basal armature, bothrial surface. (B) Basal armature, external surface. (C) Metabasal armature, antibothrial surface. (D) Metabasal armature, external surface. (E) Tentacular hooks: (i) basal row; (ii) posterior to macrohook, external and internal surfaces; (iii) posterior to macrohook, bothrial surface; (iv) level of macrohook, external and internal surfaces; (v) level of macrohook, antibothrial surface; (vi) patch of hooks, anterior to macrohook, antibothrial surface, side- (left) and front (right) view; (vii) macrohook, lateral view; (viii) macrohook, view from above; (ix) macrohook, frontal view; (x) proximal hooks 1(10)-2(20); (xi) proximal hooks 3(30)-4(40); (xii) proximal hooks 5(50)-13(130); (xiii) mid-metabase; (xiv) anterior metabase. (F) Basal armature, antibothrial surface.
FIGURE 3. Scanning electron micrographs (SEMs) of Hispidorhynchus styracurae n. sp. (SEM voucher; MZUSP 7916) from Styracura schmardae (BE-3) from the Caribbean Sea off Punta Gorda, Belize (A–J) (A) Pars bothrialis, dorso-ventral view. (B) Metabasal armature, distal part, bothrial surface. (C) Metabasal armature, distal part, external surface. (D) Transition from basal to metabasal armature, external surface; note: patch of hooks on antibothrial surface. (E) Basal armature, antibothrial surface. (F) Anterior part of scolex, lateral view. (G) Tentacles, basal armature, bothrial surface. (H) Metabasal armature, midlevel of tentacle, internal surface. (I) Basal armature, internal surface. (J) Distal bothrial surface with capilliform filitriches.
