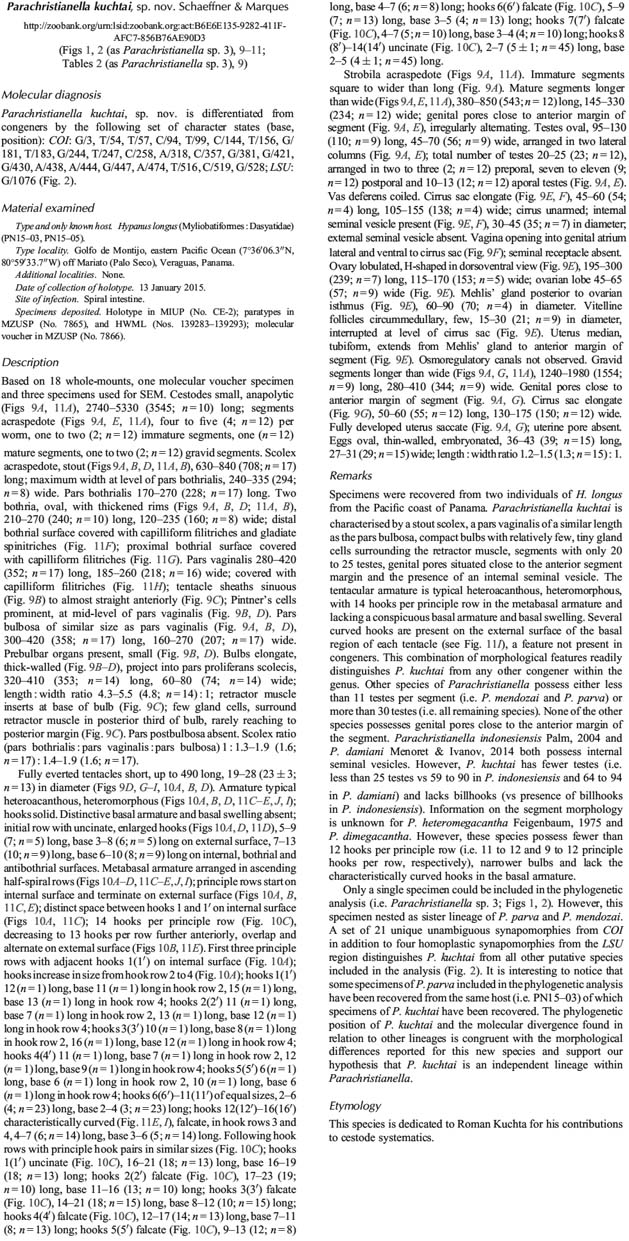

Line Drawing 1

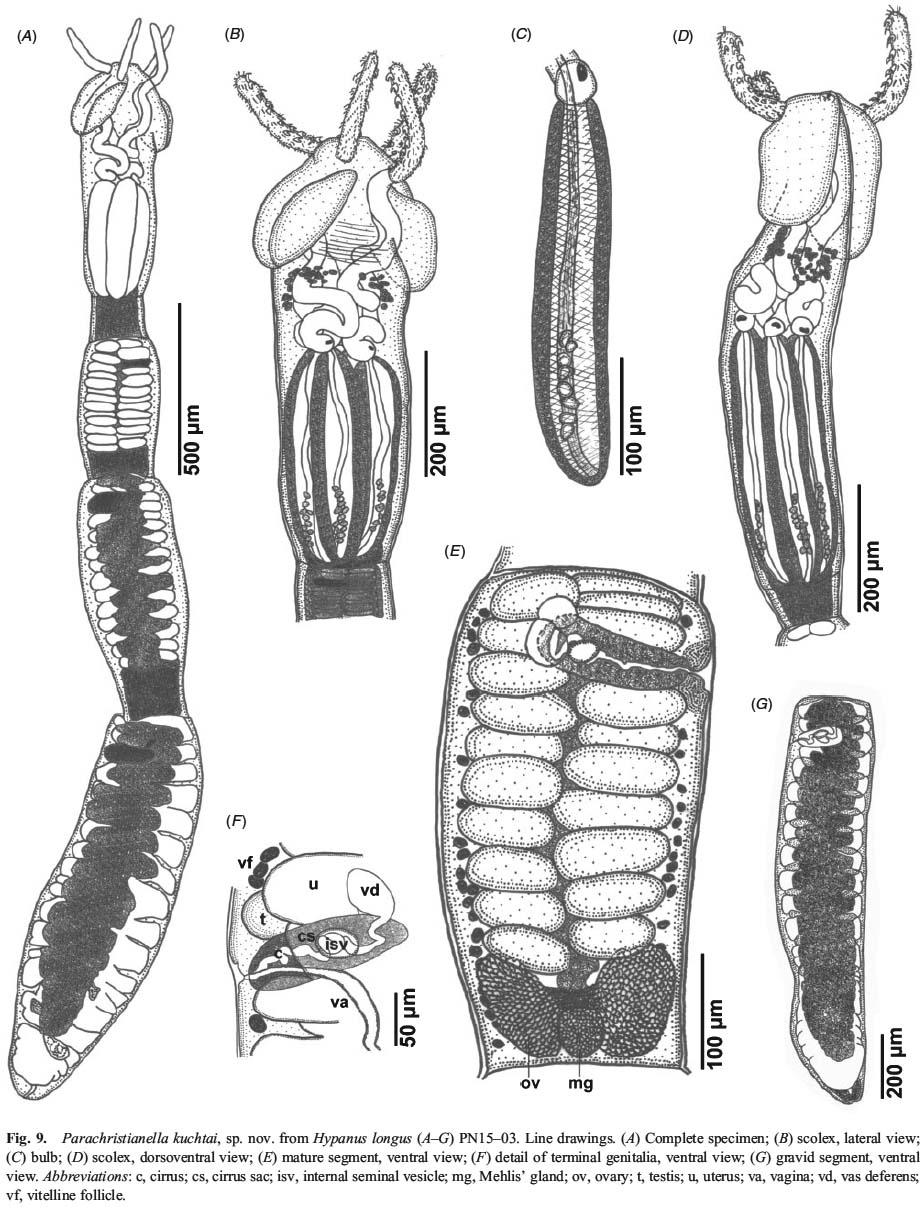

Fig. 9. Parachristianella kuchtai, sp. nov. from Hypanus longus (A–G) PN15–03. Line drawings. (A) Complete specimen; (B) scolex, lateral view;
(C) bulb; (D) scolex, dorsoventral view; (E) mature segm... MoreFig. 9. Parachristianella kuchtai, sp. nov. from Hypanus longus (A–G) PN15–03. Line drawings. (A) Complete specimen; (B) scolex, lateral view;
(C) bulb; (D) scolex, dorsoventral view; (E) mature segment, ventral view; (F) detail of terminal genitalia, ventral view; (G) gravid segment, ventral view. Abbreviations: c, cirrus; cs, cirrus sac; isv, internal seminal vesicle; mg, Mehlis’ gland; ov, ovary; t, testis; u, uterus; va, vagina; vd, vas deferens; vf, vitelline follicle. |
Line Drawing 2

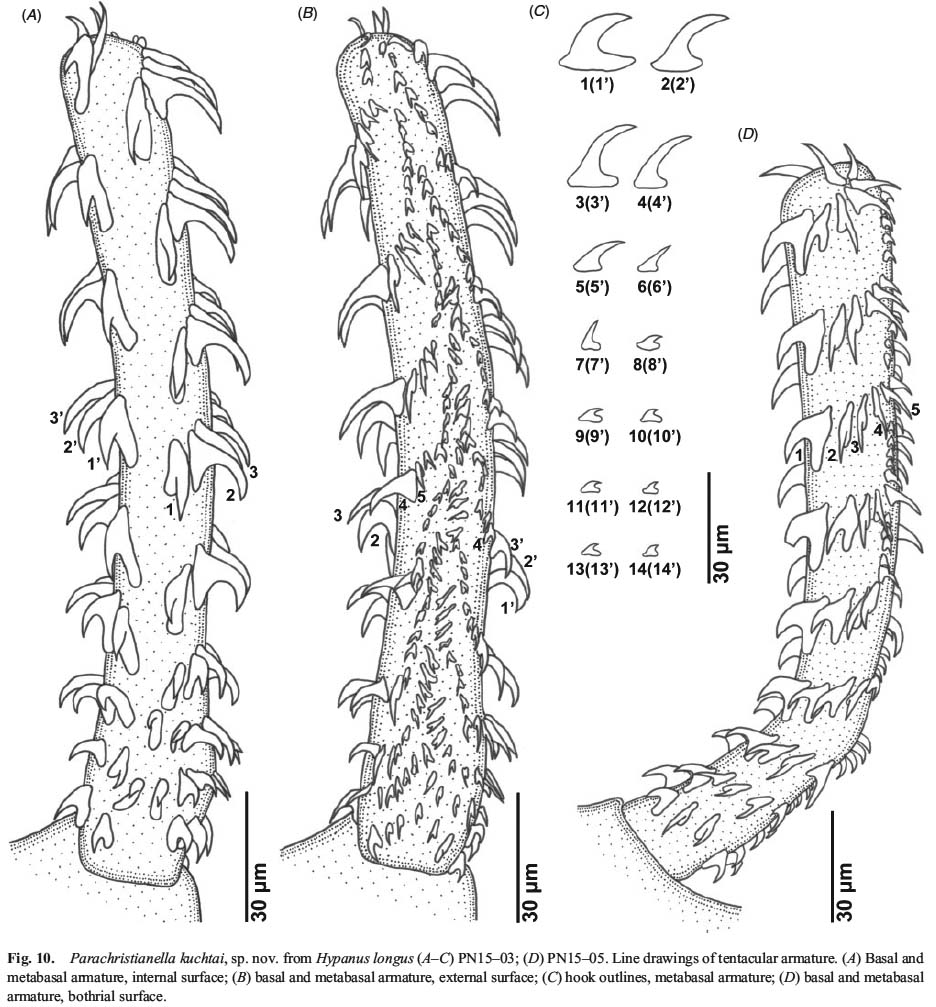

Fig. 10. Parachristianella kuchtai, sp. nov. from Hypanus longus (A–C) PN15–03; (D) PN15–05. Line drawings of tentacular armature. (A) Basal and metabasal armature, internal surface; (B) basal and met... MoreFig. 10. Parachristianella kuchtai, sp. nov. from Hypanus longus (A–C) PN15–03; (D) PN15–05. Line drawings of tentacular armature. (A) Basal and metabasal armature, internal surface; (B) basal and metabasal armature, external surface; (C) hook outlines, metabasal armature; (D) basal and metabasal armature, bothrial surface. |
Photo Micrograph
|
Scanning Electron Micrograph

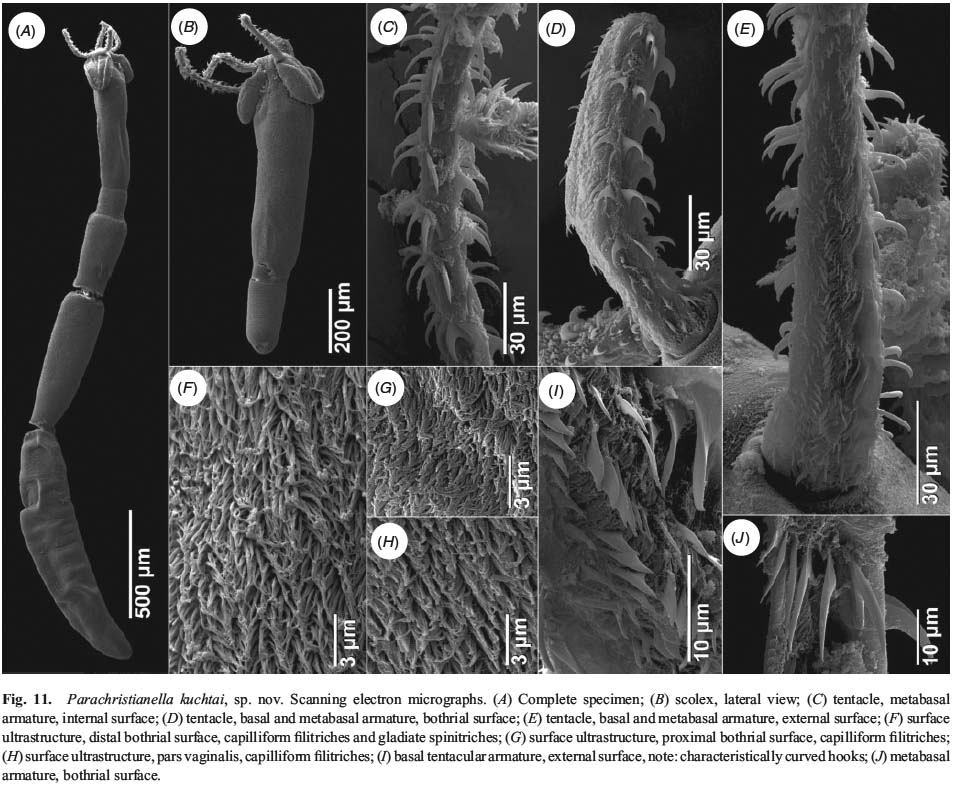

Fig. 11. Parachristianella kuchtai, sp. nov. Scanning electron micrographs. (A) Complete specimen; (B) scolex, lateral view; (C) tentacle, metabasal
armature, internal surface; (D) tentacle, basal an... MoreFig. 11. Parachristianella kuchtai, sp. nov. Scanning electron micrographs. (A) Complete specimen; (B) scolex, lateral view; (C) tentacle, metabasal
armature, internal surface; (D) tentacle, basal and metabasal armature, bothrial surface; (E) tentacle, basal and metabasal armature, external surface; (F) surface ultrastructure, distal bothrial surface, capilliform filitriches and gladiate spinitriches; (G) surface ultrastructure, proximal bothrial surface, capilliform filitriches; (H) surface ultrastructure, pars vaginalis, capilliform filitriches; (I) basal tentacular armature, external surface, note: characteristically curved hooks; (J) metabasal
armature, bothrial surface. |
Global Cestode Database
Fig. 9. Parachristianella kuchtai, sp. nov. from Hypanus longus (A–G) PN15–03. Line drawings. (A) Complete specimen; (B) scolex, lateral view;
(C) bulb; (D) scolex, dorsoventral view; (E) mature segment, ventral view; (F) detail of terminal genitalia, ventral view; (G) gravid segment, ventral view. Abbreviations: c, cirrus; cs, cirrus sac; isv, internal seminal vesicle; mg, Mehlis’ gland; ov, ovary; t, testis; u, uterus; va, vagina; vd, vas deferens; vf, vitelline follicle.
Fig. 10. Parachristianella kuchtai, sp. nov. from Hypanus longus (A–C) PN15–03; (D) PN15–05. Line drawings of tentacular armature. (A) Basal and metabasal armature, internal surface; (B) basal and metabasal armature, external surface; (C) hook outlines, metabasal armature; (D) basal and metabasal armature, bothrial surface.
Fig. 11. Parachristianella kuchtai, sp. nov. Scanning electron micrographs. (A) Complete specimen; (B) scolex, lateral view; (C) tentacle, metabasal
armature, internal surface; (D) tentacle, basal and metabasal armature, bothrial surface; (E) tentacle, basal and metabasal armature, external surface; (F) surface ultrastructure, distal bothrial surface, capilliform filitriches and gladiate spinitriches; (G) surface ultrastructure, proximal bothrial surface, capilliform filitriches; (H) surface ultrastructure, pars vaginalis, capilliform filitriches; (I) basal tentacular armature, external surface, note: characteristically curved hooks; (J) metabasal
armature, bothrial surface.
