Line Drawing 1

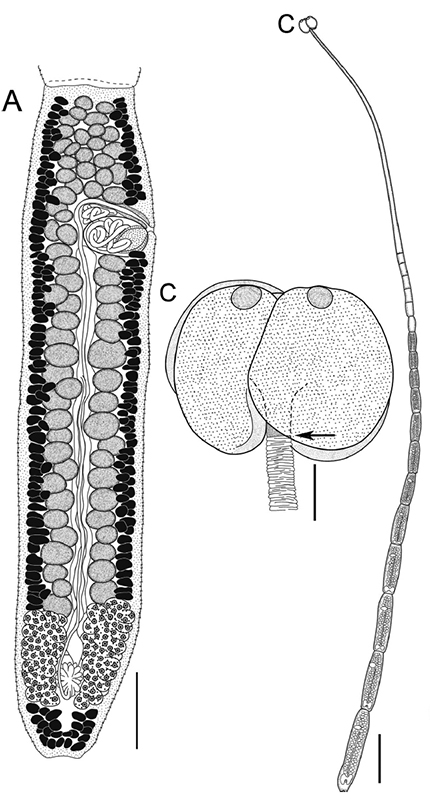

Fig. 1 Species of Paraorygmatobothrium from Moreton Bay, Australia, whole worms. C, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah (holotype QM G233220); scale-bar: 1 mm.
Fig. 2 Spec... MoreFig. 1 Species of Paraorygmatobothrium from Moreton Bay, Australia, whole worms. C, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah (holotype QM G233220); scale-bar: 1 mm.
Fig. 2 Species of Paraorygmatobothrium from Moreton Bay, Australia, scoleces. C, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah (holotype QM G233220); black arrow in C indicates posterior margin of cephalic peduncle; scale-bars: C, 100 µm.
Fig. 5 Species of Paraorygmatobothrium from Moreton Bay, terminal proglottides. A, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah (holotype QM G233220); scale-bar: A, 200 µm. |
Line Drawing 2
|
Photo Micrograph
|
Scanning Electron Micrograph
Fig. 4 Species of Paraorygmatobothrium from Moreton Bay, scanning electron micrographs. G–L, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah. G, Scolex, letters indicates where H and I... MoreFig. 4 Species of Paraorygmatobothrium from Moreton Bay, scanning electron micrographs. G–L, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah. G, Scolex, letters indicates where H and I were taken; H, Proximal bothridial surface; I, Distal bothridial surface; J, Cephalic peduncle, letter indicates
where K was taken; K, Cephalic peduncle surface; L, Anterior region of neck. Scale-bars: G, 100 µm; H, I, K, 1 lm; D, 50 µm; L, 10 µm. |
Global Cestode Database
Fig. 1 Species of Paraorygmatobothrium from Moreton Bay, Australia, whole worms. C, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah (holotype QM G233220); scale-bar: 1 mm.
Fig. 2 Species of Paraorygmatobothrium from Moreton Bay, Australia, scoleces. C, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah (holotype QM G233220); black arrow in C indicates posterior margin of cephalic peduncle; scale-bars: C, 100 µm.
Fig. 5 Species of Paraorygmatobothrium from Moreton Bay, terminal proglottides. A, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah (holotype QM G233220); scale-bar: A, 200 µm.
Fig. 4 Species of Paraorygmatobothrium from Moreton Bay, scanning electron micrographs. G–L, Paraorygmatobothrium christopheri n. sp. ex Carcharhinus sorrah. G, Scolex, letters indicates where H and I were taken; H, Proximal bothridial surface; I, Distal bothridial surface; J, Cephalic peduncle, letter indicates
where K was taken; K, Cephalic peduncle surface; L, Anterior region of neck. Scale-bars: G, 100 µm; H, I, K, 1 lm; D, 50 µm; L, 10 µm.
