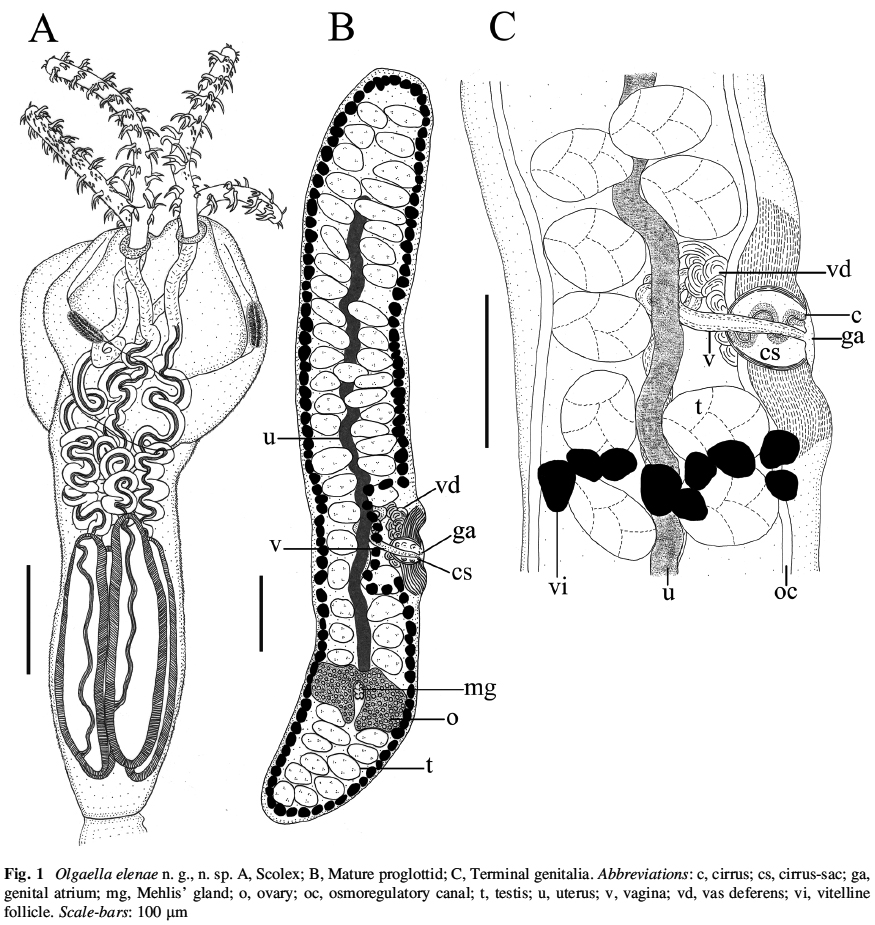

Fig. 1 Olgaella elenae n. g., n. sp. A, Scolex; B, Mature proglottid; C, Terminal genitalia. Abbreviations: c, cirrus; cs, cirrus-sac; ga, genital atrium; mg, Mehlis’ gland; o, ovary; oc, osmoregulato... MoreFig. 1 Olgaella elenae n. g., n. sp. A, Scolex; B, Mature proglottid; C, Terminal genitalia. Abbreviations: c, cirrus; cs, cirrus-sac; ga, genital atrium; mg, Mehlis’ gland; o, ovary; oc, osmoregulatory canal; t, testis; u, uterus; v, vagina; vd, vas deferens; vi, vitelline follicle. Scale-bars: 100 lm |
Line Drawing 2

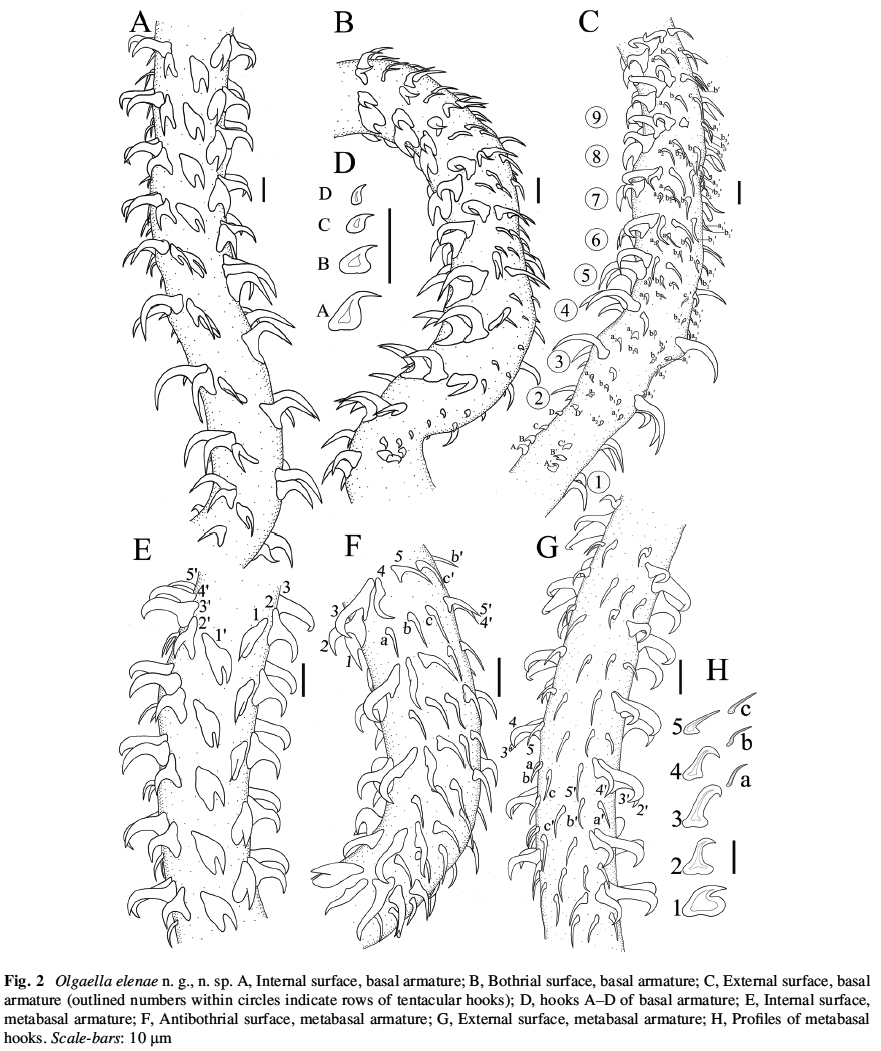

Fig. 2 Olgaella elenae n. g., n. sp. A, Internal surface, basal armature; B, Bothrial surface, basal armature; C, External surface, basal armature (outlined numbers within circles indicate rows of ten... MoreFig. 2 Olgaella elenae n. g., n. sp. A, Internal surface, basal armature; B, Bothrial surface, basal armature; C, External surface, basal armature (outlined numbers within circles indicate rows of tentacular hooks); D, hooks A–D of basal armature; E, Internal surface, metabasal armature; F, Antibothrial surface, metabasal armature; G, External surface, metabasal armature; H, Profiles of metabasal hooks. Scale-bars: 10 lm |
Photo Micrograph
|
Scanning Electron Micrograph

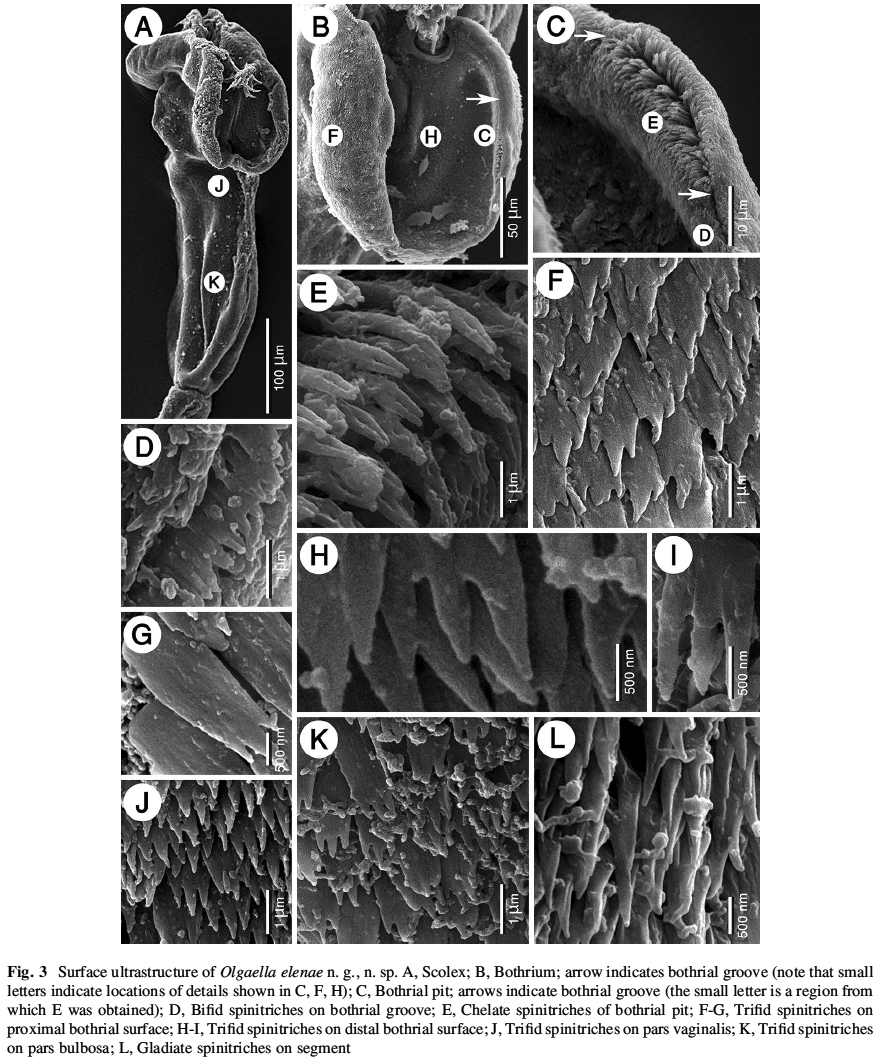

Fig. 3 Surface ultrastructure of Olgaella elenae n. g., n. sp. A, Scolex; B, Bothrium; arrow indicates bothrial groove (note that small letters indicate locations of details shown in C, F, H); C, Both... MoreFig. 3 Surface ultrastructure of Olgaella elenae n. g., n. sp. A, Scolex; B, Bothrium; arrow indicates bothrial groove (note that small letters indicate locations of details shown in C, F, H); C, Bothrial pit; arrows indicate bothrial groove (the small letter is a region from which E was obtained); D, Bifid spinitriches on bothrial groove; E, Chelate spinitriches of bothrial pit; F-G, Trifid spinitriches on proximal bothrial surface; H-I, Trifid spinitriches on distal bothrial surface; J, Trifid spinitriches on pars vaginalis; K, Trifid spinitriches
on pars bulbosa; L, Gladiate spinitriches on segment |
Global Cestode Database
Fig. 1 Olgaella elenae n. g., n. sp. A, Scolex; B, Mature proglottid; C, Terminal genitalia. Abbreviations: c, cirrus; cs, cirrus-sac; ga, genital atrium; mg, Mehlis’ gland; o, ovary; oc, osmoregulatory canal; t, testis; u, uterus; v, vagina; vd, vas deferens; vi, vitelline follicle. Scale-bars: 100 lm
Fig. 2 Olgaella elenae n. g., n. sp. A, Internal surface, basal armature; B, Bothrial surface, basal armature; C, External surface, basal armature (outlined numbers within circles indicate rows of tentacular hooks); D, hooks A–D of basal armature; E, Internal surface, metabasal armature; F, Antibothrial surface, metabasal armature; G, External surface, metabasal armature; H, Profiles of metabasal hooks. Scale-bars: 10 lm
Fig. 3 Surface ultrastructure of Olgaella elenae n. g., n. sp. A, Scolex; B, Bothrium; arrow indicates bothrial groove (note that small letters indicate locations of details shown in C, F, H); C, Bothrial pit; arrows indicate bothrial groove (the small letter is a region from which E was obtained); D, Bifid spinitriches on bothrial groove; E, Chelate spinitriches of bothrial pit; F-G, Trifid spinitriches on proximal bothrial surface; H-I, Trifid spinitriches on distal bothrial surface; J, Trifid spinitriches on pars vaginalis; K, Trifid spinitriches
on pars bulbosa; L, Gladiate spinitriches on segment
