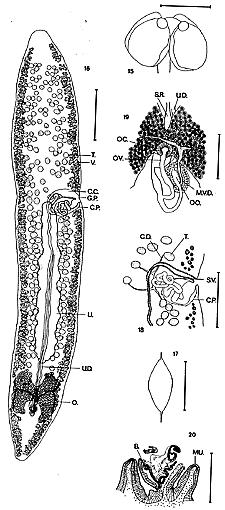

FIGURES 15-20. Phyllobothrium orectolobi n. sp. 15. Scolex. 16. Gravid segment, ventral view. 17. Egg capsule. 18. Male reproductive system, ventral view, showing arrangement of collecting ducts. 19. ... MoreFIGURES 15-20. Phyllobothrium orectolobi n. sp. 15. Scolex. 16. Gravid segment, ventral view. 17. Egg capsule. 18. Male reproductive system, ventral view, showing arrangement of collecting ducts. 19. Female reproductive system, ventral view. 20. Attached scolex. Abbreviations: b, bothridium; cc, copulatory canal; cd, collecting duct; cp, cirrus pouch; gp, genital pore; mu, mucosa; mvd, median vitelline duct; o, ovary; oc, oocapt; oo, ootype; ov, oviduct; sr, seminal receptacle; sv, seminal vessicle; t, testis; u, uterus; ud, uterine duct; v, vitellaria. Scale bars: 15, 16, 20, 0.44 mm; 17, 50 µm; 18 & 19, 0.2 mm. |
Line Drawing 2
|
Photo Micrograph
|
Scanning Electron Micrograph

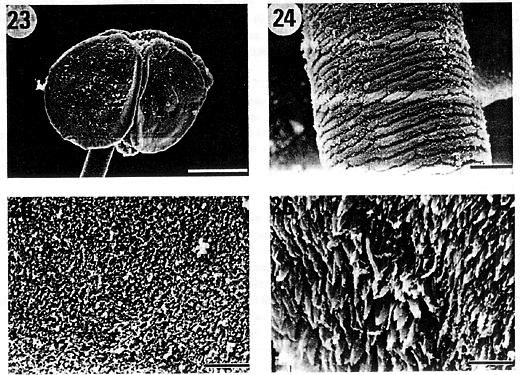

FIGURES 23-26. Phyllobothrium orectolobi n. sp. 23. Scolex. 24. Anterior strobila; note “scaly” appearance. 25. Attaching surface of bothridium; note microvilli. 26. Posterior surface of bothridium; n... MoreFIGURES 23-26. Phyllobothrium orectolobi n. sp. 23. Scolex. 24. Anterior strobila; note “scaly” appearance. 25. Attaching surface of bothridium; note microvilli. 26. Posterior surface of bothridium; note blade-like projections. Scale bars: 23, 200 µm; 24, 20 µm; 25, 10 µm; 26, 4 µm. |

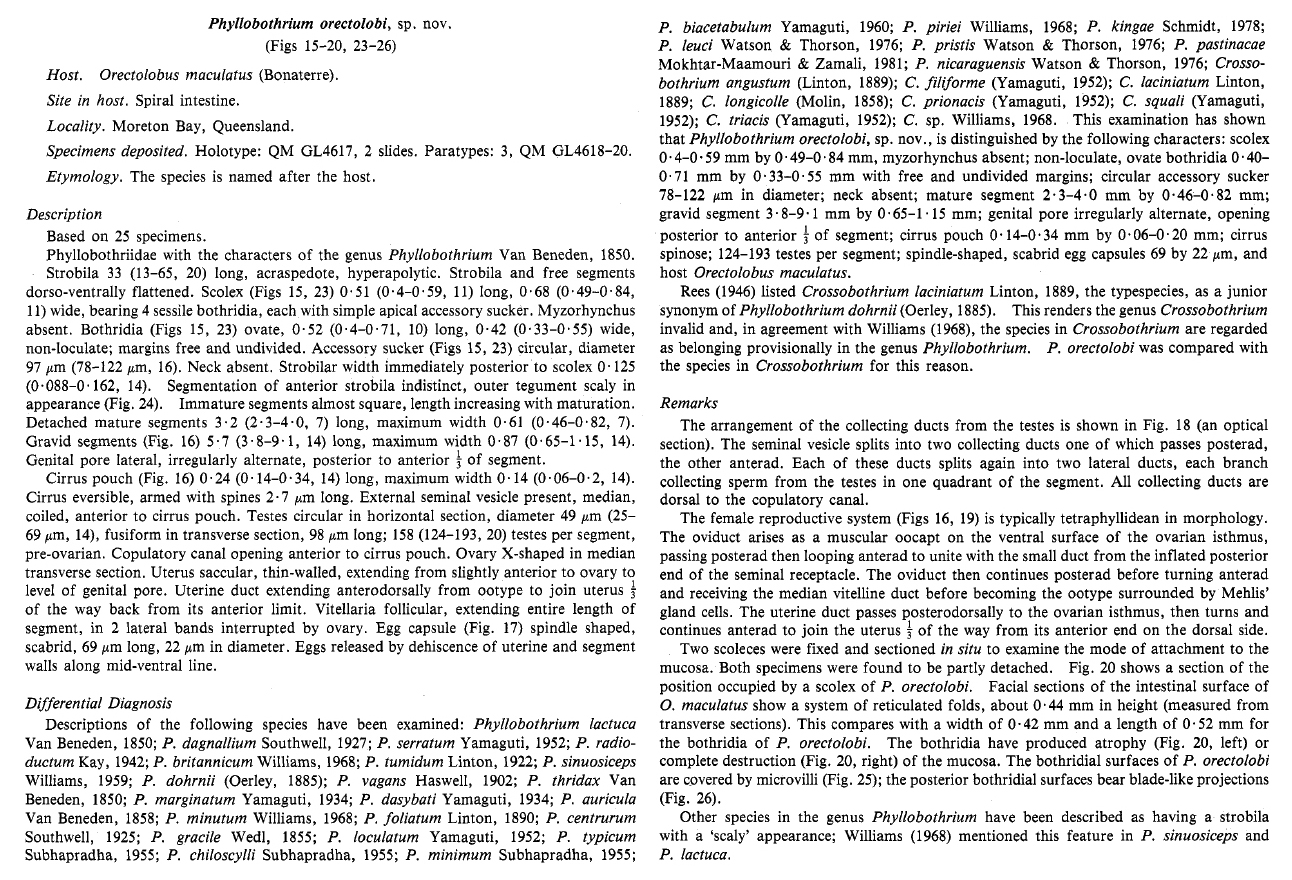

Global Cestode Database
FIGURES 15-20. Phyllobothrium orectolobi n. sp. 15. Scolex. 16. Gravid segment, ventral view. 17. Egg capsule. 18. Male reproductive system, ventral view, showing arrangement of collecting ducts. 19. Female reproductive system, ventral view. 20. Attached scolex. Abbreviations: b, bothridium; cc, copulatory canal; cd, collecting duct; cp, cirrus pouch; gp, genital pore; mu, mucosa; mvd, median vitelline duct; o, ovary; oc, oocapt; oo, ootype; ov, oviduct; sr, seminal receptacle; sv, seminal vessicle; t, testis; u, uterus; ud, uterine duct; v, vitellaria. Scale bars: 15, 16, 20, 0.44 mm; 17, 50 µm; 18 & 19, 0.2 mm.
FIGURES 23-26. Phyllobothrium orectolobi n. sp. 23. Scolex. 24. Anterior strobila; note “scaly” appearance. 25. Attaching surface of bothridium; note microvilli. 26. Posterior surface of bothridium; note blade-like projections. Scale bars: 23, 200 µm; 24, 20 µm; 25, 10 µm; 26, 4 µm.

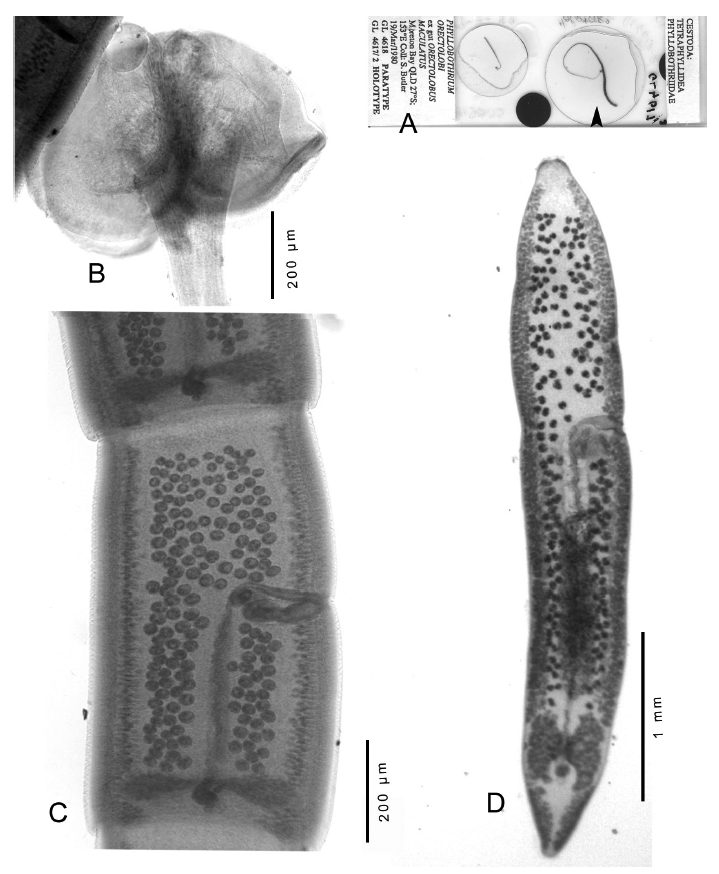

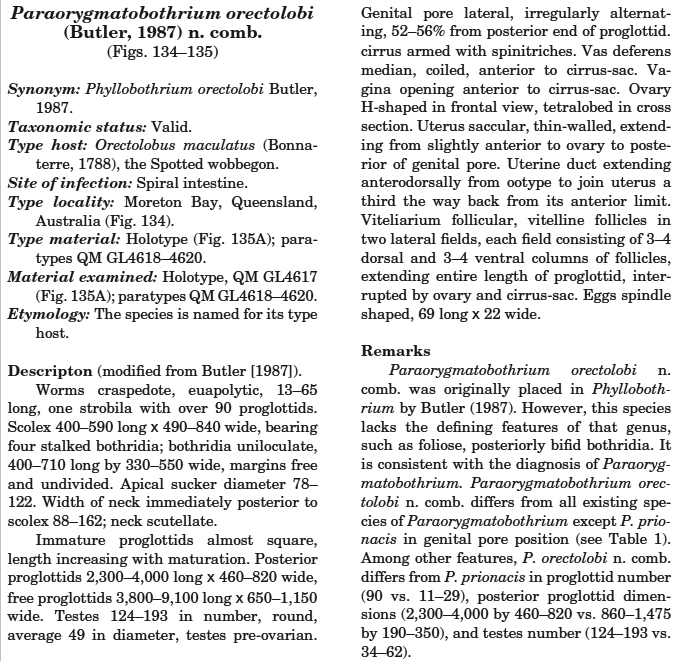

From Ruhnke, 2011 (Cit# 5498). Fig. 135. Photomicrographs of Paraorygmatobothrium orectolobi (Butler, 1987) n. comb. A. Holotype and paratype slide (QM GL 4617/2 and 4618), arrow indicates holotype. B. Scolex of holotype (QM GL 4617/2).
C. Proglottid of holotype (QM GL 4617/2). D. Free proglottid of paratype (USNPC 61340). E. Free proglottid of paratype (QM GL XXXX).
