Line Drawing 1

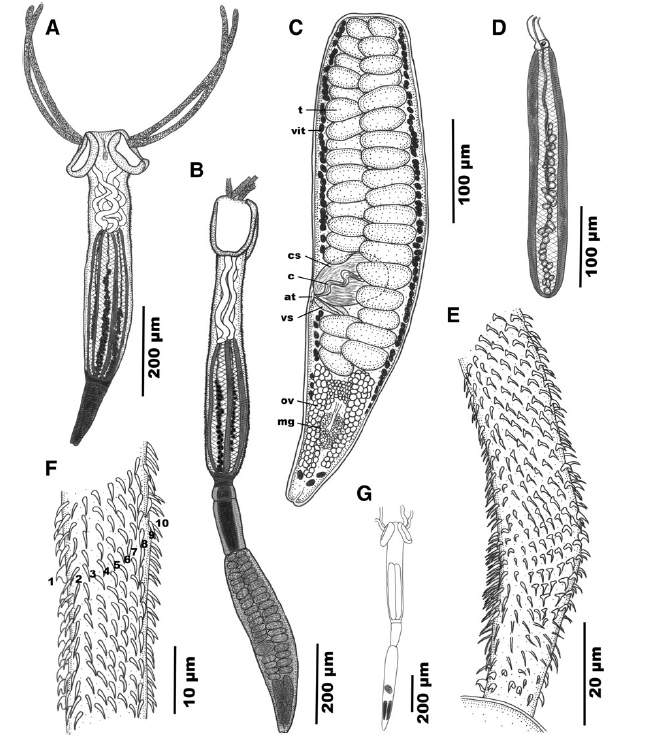

Fig. 13 Line drawings of Dollfusiella parva n. sp. from Himantura gerrardi (Gray) (BO-23) in the South China Sea (A, D–G) and from Himantura cf. gerrardi 2 (BO-138) in the Celebes Sea (B, C). A, compl... MoreFig. 13 Line drawings of Dollfusiella parva n. sp. from Himantura gerrardi (Gray) (BO-23) in the South China Sea (A, D–G) and from Himantura cf. gerrardi 2 (BO-138) in the Celebes Sea (B, C). A, complete specimen (immature), lateral view; B, complete specimen, dorso-ventral view; C, mature segment; D, bulb; E, basal tentacular armature, external surface; F, metabasal tentacular armature,
external surface; G, outline of complete specimen. Abbreviations: at, genital atrium, c, cirrus, cs, cirrus-sac, mg, Mehlis’ gland, ov, ovary, t, testis, vit, vitelline follicle, vs, vaginal sphincter |
Line Drawing 2
|
Photo Micrograph
|
Scanning Electron Micrograph

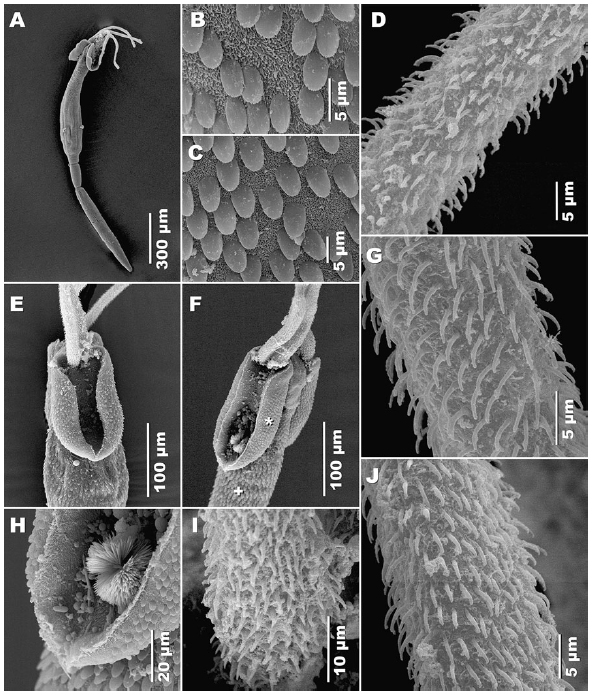

Fig. 14 Scanning electron micrographs of Dollfusiella parva n. sp. from Himantura cf. gerrardi 2 (BO-138) in the Celebes Sea. A,
complete specimen, lateral view; B, palmate spinitriches covering prox... MoreFig. 14 Scanning electron micrographs of Dollfusiella parva n. sp. from Himantura cf. gerrardi 2 (BO-138) in the Celebes Sea. A,
complete specimen, lateral view; B, palmate spinitriches covering proximal bothrial surface; C, enlarged, palmate spinitriches covering scolex peduncle; D, metabasal tentacular armature, antibothrial surface; E, anterior part of scolex, dorso-ventral view; F, anterior part of scolex, dorso-ventral to lateral view; G, metabasal tentacular armature, external surface; H, detailed view of posterior bothrial margin— note enlarged, capilliform filitriches lining border between distal and proximal bothrial surfaces; I, basal tentacular armature, bothrial surface; J, metabasal tentacular armature, bothrial surface. Symbols: *, position on proximal bothrial surface where microthrix
micrograph (B) was taken; +, position on pars vaginalis where microthrix micrograph (C) was taken |
Global Cestode Database
Fig. 13 Line drawings of Dollfusiella parva n. sp. from Himantura gerrardi (Gray) (BO-23) in the South China Sea (A, D–G) and from Himantura cf. gerrardi 2 (BO-138) in the Celebes Sea (B, C). A, complete specimen (immature), lateral view; B, complete specimen, dorso-ventral view; C, mature segment; D, bulb; E, basal tentacular armature, external surface; F, metabasal tentacular armature,
external surface; G, outline of complete specimen. Abbreviations: at, genital atrium, c, cirrus, cs, cirrus-sac, mg, Mehlis’ gland, ov, ovary, t, testis, vit, vitelline follicle, vs, vaginal sphincter
Fig. 14 Scanning electron micrographs of Dollfusiella parva n. sp. from Himantura cf. gerrardi 2 (BO-138) in the Celebes Sea. A,
complete specimen, lateral view; B, palmate spinitriches covering proximal bothrial surface; C, enlarged, palmate spinitriches covering scolex peduncle; D, metabasal tentacular armature, antibothrial surface; E, anterior part of scolex, dorso-ventral view; F, anterior part of scolex, dorso-ventral to lateral view; G, metabasal tentacular armature, external surface; H, detailed view of posterior bothrial margin— note enlarged, capilliform filitriches lining border between distal and proximal bothrial surfaces; I, basal tentacular armature, bothrial surface; J, metabasal tentacular armature, bothrial surface. Symbols: *, position on proximal bothrial surface where microthrix
micrograph (B) was taken; +, position on pars vaginalis where microthrix micrograph (C) was taken
