Line Drawing 1

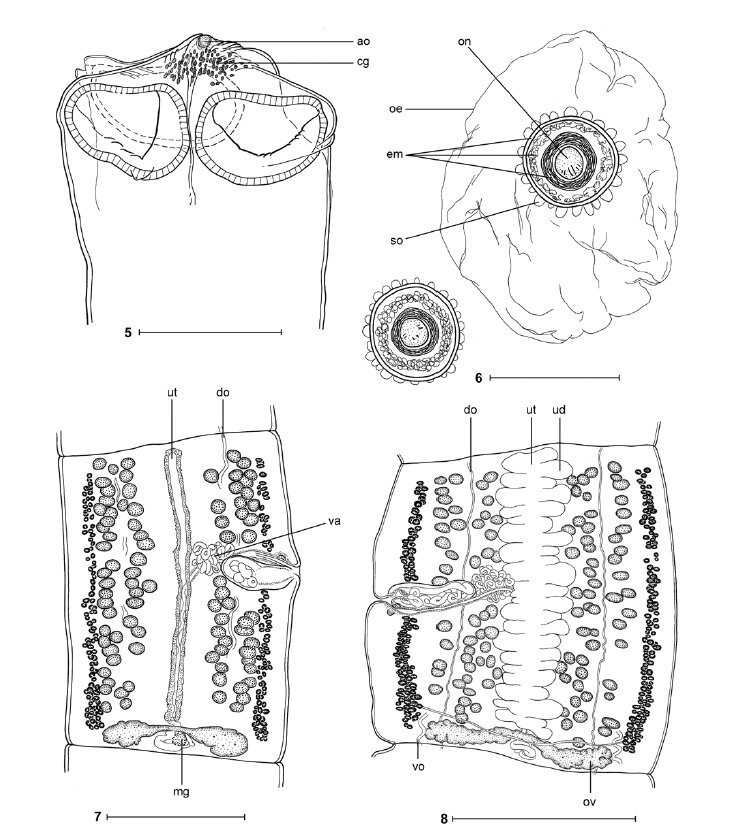

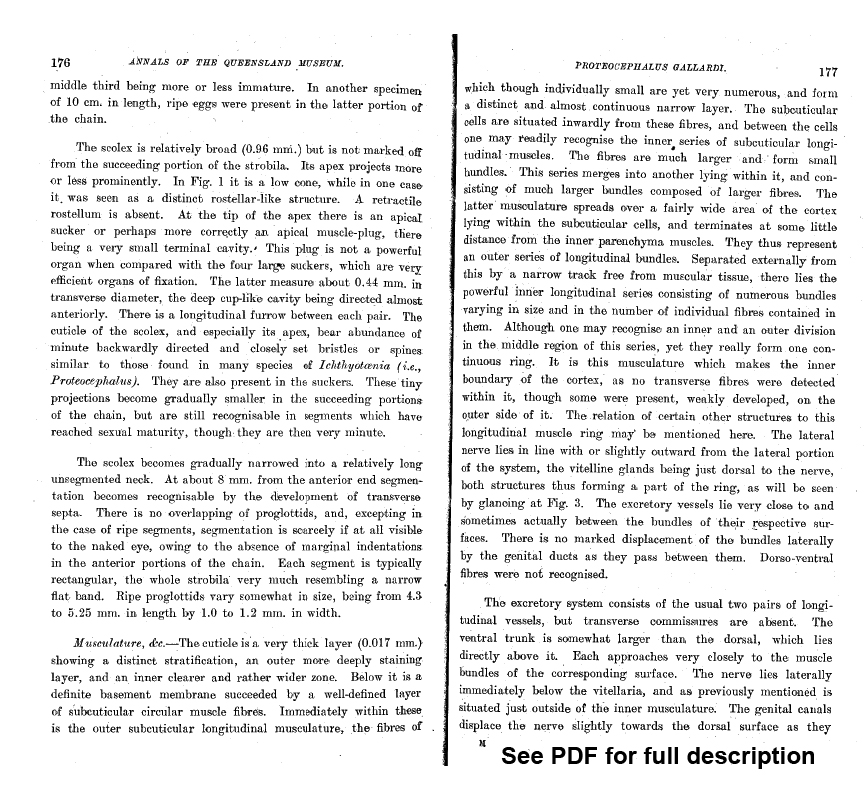

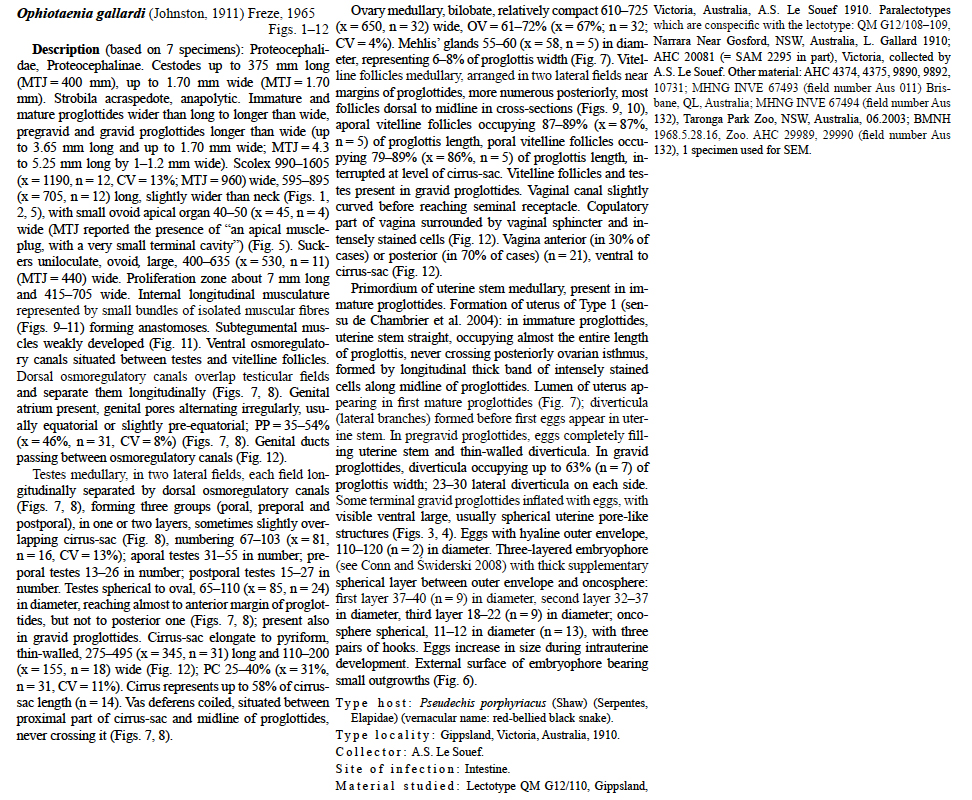

 Figs. 58. Ophiotaenia gallardi (Johnston, 1911). Fig. 5. Syntype, scolex, ventral view (QM G12/110) (redrawn from Johnston
1911). Fig. 6. Eggs in distilled water, showing the three-layered
embryoph... MoreFigs. 58. Ophiotaenia gallardi (Johnston, 1911). Fig. 5. Syntype, scolex, ventral view (QM G12/110) (redrawn from Johnston
1911). Fig. 6. Eggs in distilled water, showing the three-layered
embryophore and small outgrowths (SAM 4374). Fig. 7. Syntype, mature proglottis, dorsal view (QM G12/109) (redrawn from Johnston 1911) (ventral osmoregulatory canal not figured).
Fig. 8. Pregravid proglottis, ventral view (SAM 4374 b); note the position of dorsal osmoregulatory canals, which separate longitudinally the testicular fields. Abbreviations: ao - apical organ; cg - cells with finely granular cytoplasm; do - dorsal osmoregulatory canal; em three-layered embryophore; mg Mehlis glands; oe outer envelope; on oncosphere; ov ovary: so small outgrowths; ud - uterine diverticula; ut - uterus; va - vas deferens; vo - ventral osmoregulatory canal. Scale bar: Figs. 5, 7 = 500΅m; Fig. 6 = 50΅m; Fig. 8 = 1mm. |
Line Drawing 2

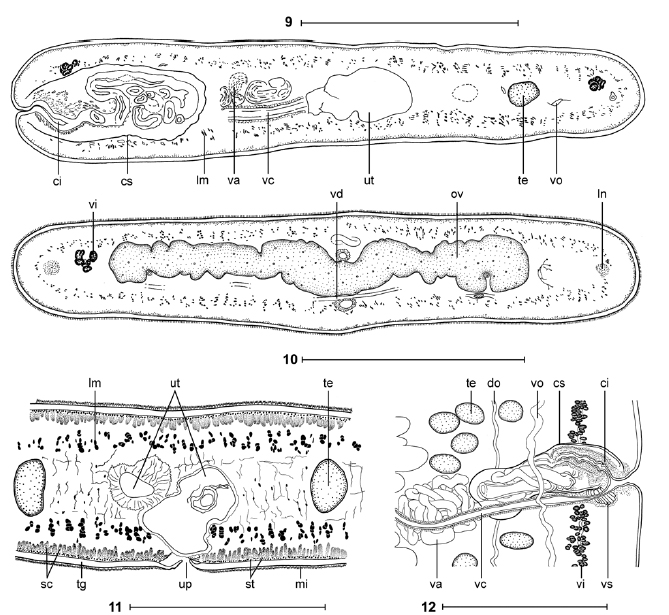

 Figs. 912. Ophiotaenia gallardi (Johnston, 1911). Figs. 9, 10. Syntype (SAM 437416,
9). Cross-sections
at the level of the cirrus-sac and ovary, respectively. Fig. 11. Crosssection
at the level of... MoreFigs. 912. Ophiotaenia gallardi (Johnston, 1911). Figs. 9, 10. Syntype (SAM 437416,
9). Cross-sections
at the level of the cirrus-sac and ovary, respectively. Fig. 11. Crosssection
at the level of the anterior part of pregravid proglottis (SAM 4375). Fig. 12. Vagina and cirrussac
region, ventral view (SAM 4374c). Abbreviations: ci cirrus; cs cirrussac;
do dorsal osmoregulatory canal; lm internal longitudinal musculature; ln longitudinal nerve; mi microtriches; ov ovary; sc subtegumental cells; st subtegumental muscle fibres; te - testes; tg - tegument; up - uterine pore-like; ut - uterus; va - vas deferens; vc - vaginal canal; vd - vitelloduct; vi - vitelline follicles; vo - ventral osmoregulatory canal; vs - vaginal sphincter. Scale bars: Figs. 9, 10, 12 = 500΅m; Fig. 11 = 250΅m. |
Photo Micrograph
|
Scanning Electron Micrograph
 Figs.

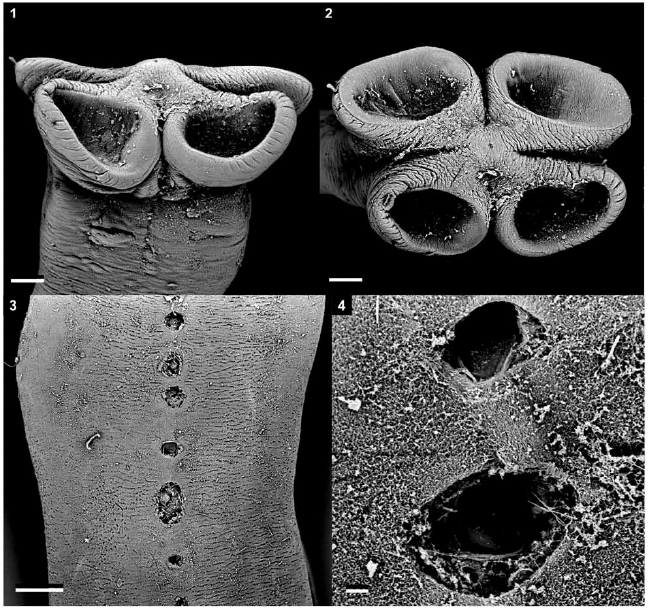

14. Ophiotaenia gallardi (Johnston, 1911). Scanning electron micrographs. Fig. 1. Scolex, dorsoventral view (MHNG INVE
67494). Fig. 2. Scolex, apical view (MHNG INVE 67494). Fig. 3. Ventral v... MoreFigs.
14. Ophiotaenia gallardi (Johnston, 1911). Scanning electron micrographs. Fig. 1. Scolex, dorsoventral view (MHNG INVE
67494). Fig. 2. Scolex, apical view (MHNG INVE 67494). Fig. 3. Ventral view of a gravid proglottis, showing uterine pore-like
structures (SAM 4375). Fig. 4. Detail of uterine pore-like structures (SAM 4375). Scale bars: Figs. 1, 2 = 100΅m; Fig. 3 = 200 ΅m; Fig. 4 = 20 ΅m. |
